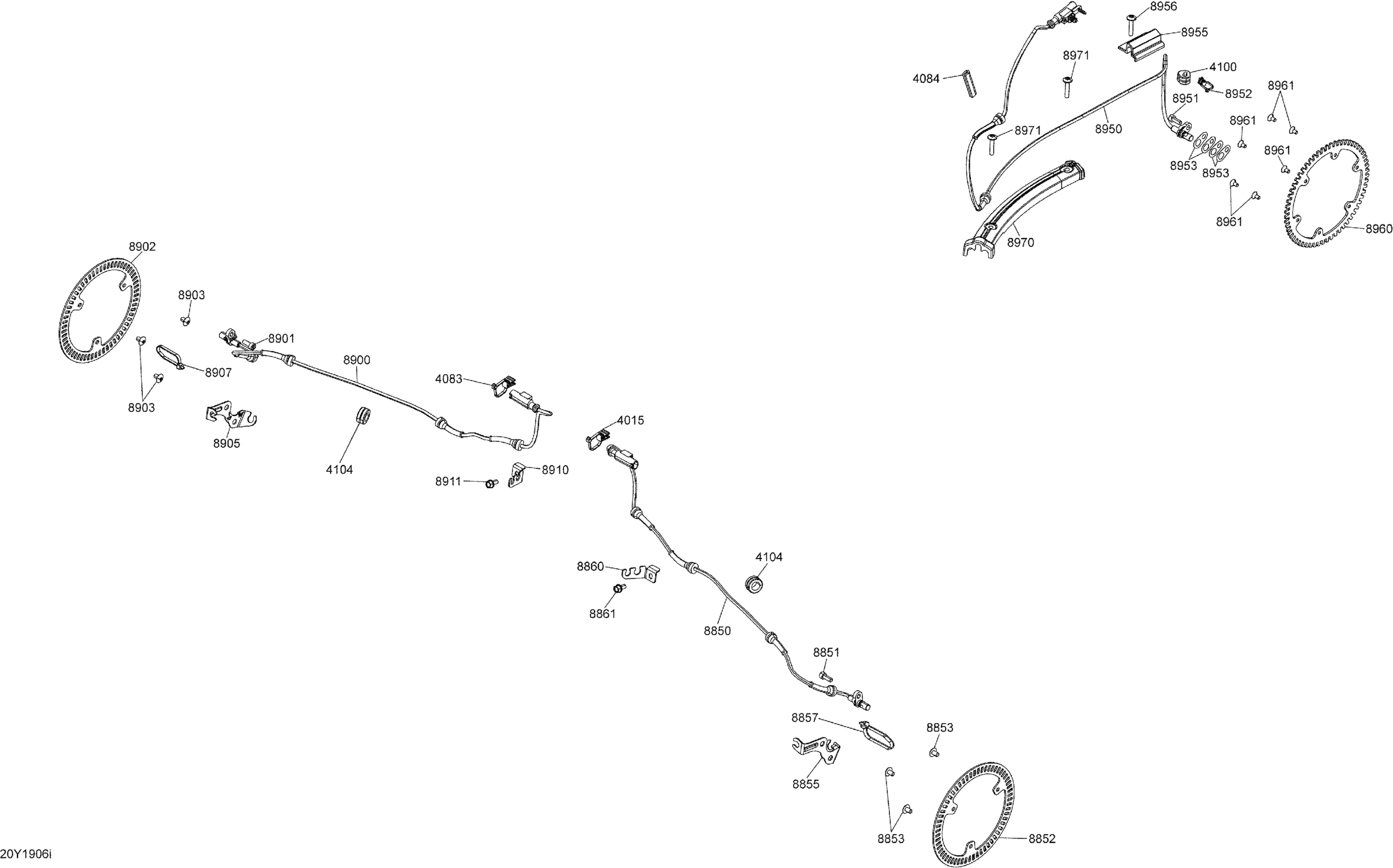

Can-Am On-Road 002 - RT STD SE6, 2019 10- Electrical System - ABS Speed Sensor Diagram

Description

Price

4015

Clip Tie-Rap | Package North Edition

710005037

$9.17

4083

Clip Tie-Rap | Package North Edition

710005037

$9.17

4084

Trim 1000Mm Long

219704354

$15.99

4100

Grommet

293720084

$6.09

4104

Grommet

293720095

$7.69

4104

Grommet

293720095

$7.69

8850

Speed Sensor

710006981

$83.99

8851

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8852

Front Sensor Wheel

705601512

$43.99

8853

Torx-truss M/s M6 X 10

250000995

$4.44

8855

LH Support Wire

710004860

$2.29

8857

Tie-Rap 180 mm

414115200

$0.11

8860

Speed Sensor Holder

710003156

$11.49

8861

Hex. Flange Screw M6 X 12

210261250

$1.90

8900

Speed Sensor

710006981

$83.99

8901

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8902

Front Sensor Wheel

705601512

$43.99

8903

Torx-truss M/s M6 X 10

250000995

$4.44

8905

RH Support Wire

710004861

$2.29

8907

Tie-Rap 180 mm

414115200

$0.11

8910

Speed Sensor Holder

710003157

$11.49

8911

Hex. Flange Screw M6 X 12

210261250

$1.90

8950

Speed Sensor

710006982

$83.99

8951

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

8952

Tie Wrap 94 mm | 4X4

293750001

$1.03

8953

Shim

710002023

$2.85

8955

Hose Support

710002145

$7.89

8956

Torx Truss Screw M6 X 30

250000843

$2.11

8960

Sensor Wheel

705601372

$46.99

8961

Socket Head Screw M5 X 10

205851036

$6.77

8970

Protector

710004281

$25.99

8971

Torx Truss Screw M6 X 30

250000843

$2.11
