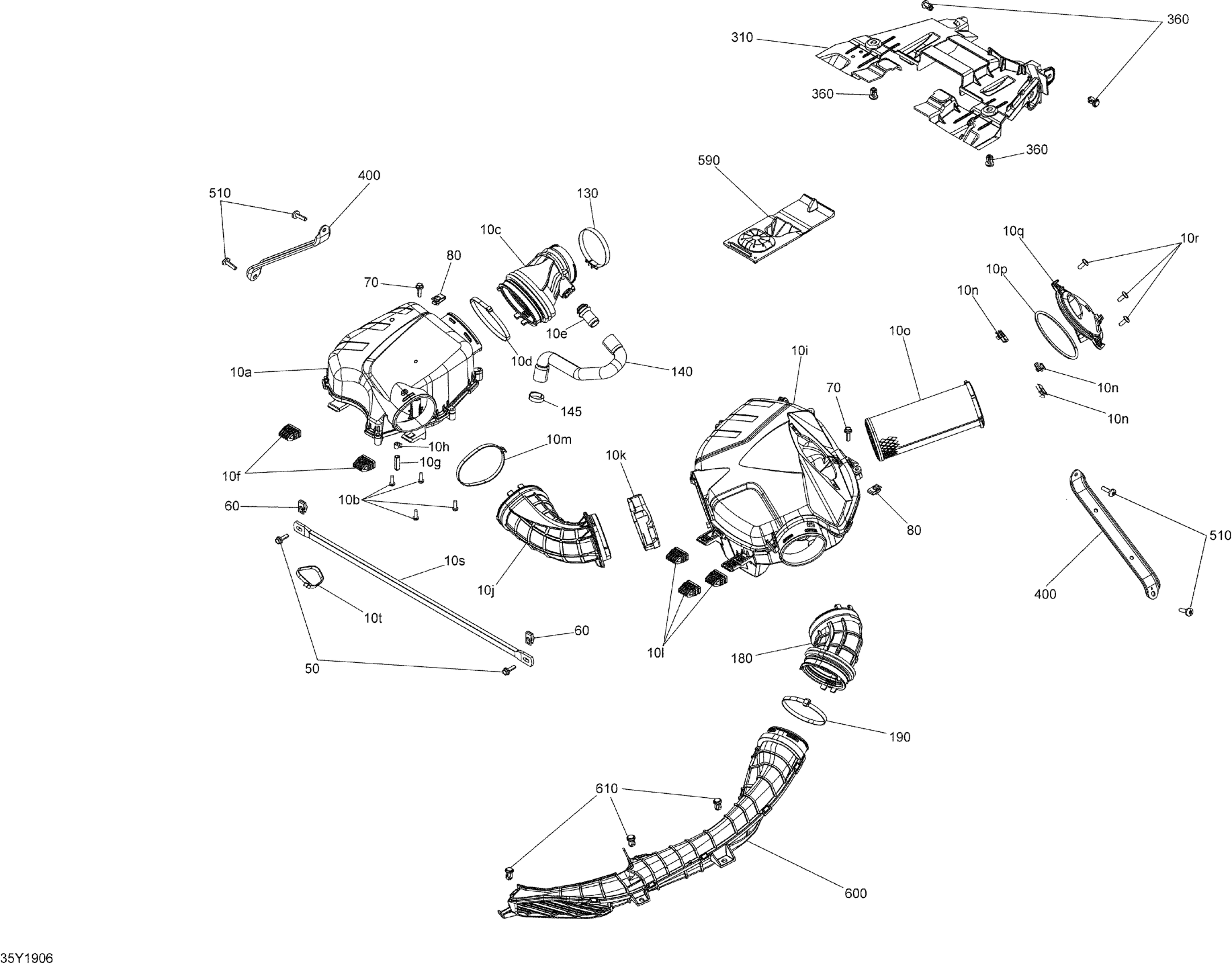

Can-Am RT STD SE6, 2019 Air Intake Diagram

#

Description
Price

10a

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$54.99

10b

Hex. Screw M4.8 X 1.8

243141680

$4.86

10c

Air Intake Adaptor

707800388

$33.99

10d

Tie Rap

509000165

$2.11

10e

Breather Valve

273000234

$14.49

10f

Rubber Stopper

707800452

$7.69

10g

Cap Plug

293000105

$4.39

10h

Spring Clamp

414554800

$0.88

10i

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$54.99

10j

Intake Adaptor

707800485

$31.99

10k

Ring

707800525

$16.99

10l

Rubber Stopper

707800452

$7.69

10m

Tie Rap

509000165

$2.11

10n

Panel Nut M6 X 1.0

250100198

$2.11

10o

Air Filter

707800483

$47.49

10p

O-ring

707800455

$7.94

10q

Cap

707800484

$19.49

10r

Torx Truss Screw M6 X 16

250000348

$2.11

10s

Link Rod | Includes 10k to 10k1

707800432

$24.49

10t

Tie Rap

509000165

$2.11

50

Hex. Flange Screw M6 X 20

207662044

$2.00

60

Panel Nut M6 X 1.0

250100198

$2.11

70

Hex. Flange Screw M6 X 20

207662044

$2.00

80

Panel Nut M6 X 1.0

250100198

$2.11

130

Gemi Clamp

508000346

$10.33

140

Formed Hose

707800824

$18.99

145

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

180

Adapter

707800389

$28.99

190

Tie Rap

509000165

$2.11

310

Acoustic Support

707800562

$44.99

360

Tuflok Plastic Rivet

293150230

$1.47

400

Console Support

707800749

$6.09

510

Torx Screw M6 X 20

250000712

$2.11

590

Center Bellows

707800343

$31.99

600

Air Inlet Valve

707800477

$18.99

610

Tuflok Plastic Rivet

293150230

$1.47
