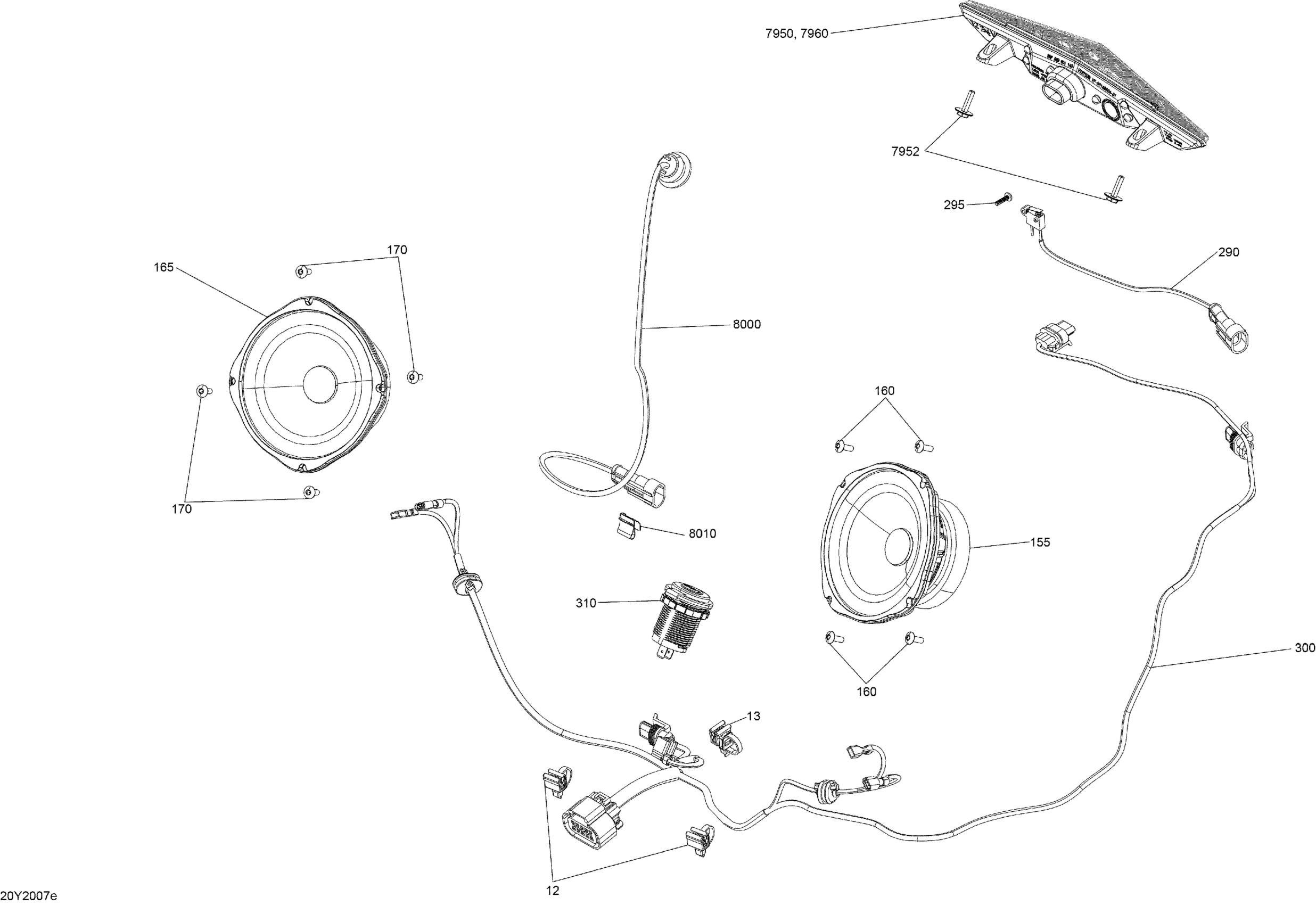

Can-Am RT LTD SE6, 2020 Electrical System Rear Upper Storage Box Diagram

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4.5" Speaker

710005433

$36.00

Torx Truss Screw K40 X 12

250000577

$1.74

4.5" Speaker

710005433

$36.00

Torx Truss Screw K40 X 12

250000577

$1.74

Open Detection

710005315

$19.00

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.55

Upper Rear Box Wiring Harness

710007713

$54.00

USB Outlet

219400510

$40.92

Rear Light

520001143

$75.99

Screw M4 X 16

250000725

$2.87

Non-fonctional Rear Tail-light

520001785

$122.00

Trunk Light

710001533

$68.00

Clip Bracket Connector (edge)

409210100

$2.00
