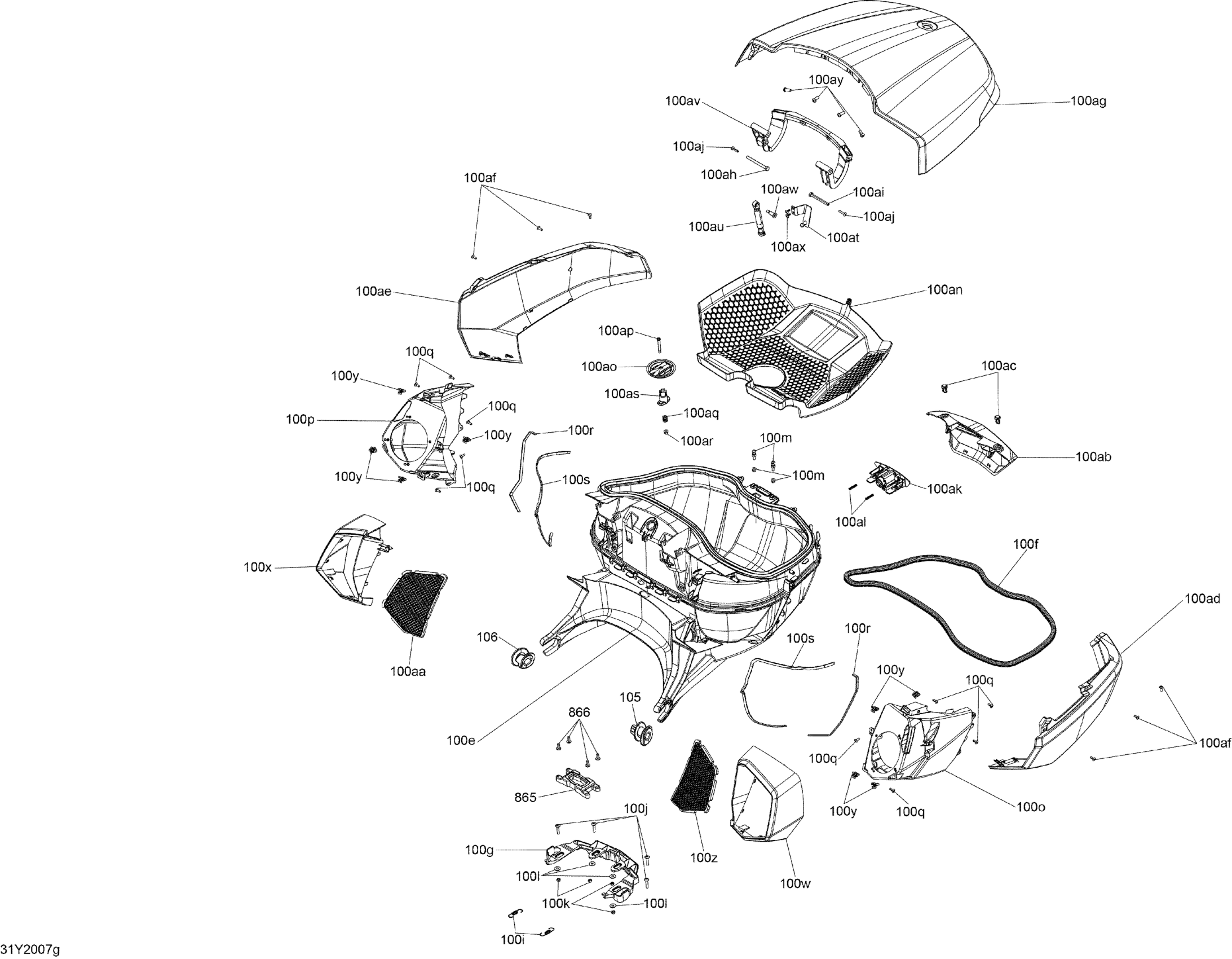

Can-Am RT LTD SE6, 2020 Body And Accessories Upper Cargo Diagram

#

Description
Price

100e

Central Bonded Storage Box

708304656

$440.00

100f

Trim

293250579

$16.00

100g

Latch

708303384

$15.00

100i

Tension Spring

705601862

$3.00

100j

Torx Screw M5 X 25

250000762

$1.74

100k

Hex. Nut M5

232051600

$0.92

100l

Flat Washer 5 mm, Stainless

234052600

$0.64

100m

Stud

518333307

$13.00

100n

Flange Elastic Nut M5

233251434

$1.66

100o

LH Speaker Enclosure

708302113

$20.00

100p

RH Speaker Enclosure

708302114

$20.00

100q

Torx Truss Screw K40 X 12

250000577

$1.74

100r

Seal 1000Mm Long

219704373

$8.29

100s

Seal 1000Mm Long

219704373

$8.29

100w

LH Rear Speaker Trim

708302692

$45.00

100x

RH Rear Speaker Trim

708302693

$45.00

100y

Edge Clip

517302785

$0.70

100z

LH Speaker Grille

708302106

$4.00

100aa

RH Speaker Grille

708302107

$4.00

100ab

Light Support

708302152

$12.00

100ac

Tuflok Plastic Rivet

293150230

$1.21

100ad

Chalk, LH Rear Fairing | Package LTD, Models Chalk

708304091

$250.00

100ad

Petrol, Rear Fairing LH | Package LTD, Models Petrol

708303193

$215.00

100ad

Deep Marsala, Rear Fairing LH | Package LTD, Models Deep Marsala

708303194

$215.00

100ad

Asphalt Grey, Rear Fairing LH | Package LTD, Models Asphalt Grey

708303195

$215.00

100ae

Chalk, LH Rear Fairing | Package LTD, Models Chalk

708304090

$250.00

100ae

Petrol, Rear Fairing RH | Package LTD, Models Petrol

708303197

$215.00

100ae

Deep Marsala, Rear Fairing RH | Package LTD, Models Deep Marsala

708303198

$215.00

100ae

Asphalt Grey, Rear Fairing RH | Package LTD, Models Asphalt Grey

708303199

$215.00

100af

Torx Truss Screw K40 X 12

250000577

$1.74

100ag

Deep Black, Rear Box Cover

708303584

$460.00

100ah

RH Hinge Pin

708303376

$14.00

100ai

LH Hinge Pin

708303377

$14.00

100aj

Torx-Truss M/S M4 X 20

250000783

$2.06

100ak

Trunk Control Ass'y

708302100

$24.00

100al

Spring

708302198

$2.00

100an

Inner Trunk Soft Trim

708303064

$34.00

100ao

LinQ Lock Knob

708303063

$10.00

100ap

LinQ Lock Knob Screw

708303262

$3.00

100aq

Spring | Package Hunter

708200263

Unavailable

100ar

Elastic Flange Nut M5

233251494

$1.74

100as

RH LATCH - Call your local BRP dealership

520001578

Unavailable

100at

Shock Reinforcement

708303421

$62.00

100au

Shock Absorber

708303630

$77.00

100av

Lid Hinge

708303319

$70.00

100aw

Flange Screw M6 X 26

250000714

$4.00

100ax

Torx-Truss Screw K40 X 10

250001034

$0.81

100ay

Black, Socket Screw, M6 X 16 S.Grip

250000616

$1.74

100az

Flat washer M6

250200164

$0.83

105

LH Anchorage Socket

708400404

$3.00

106

RH Anchorage Socket

708400441

$3.00

865

LinQ Fastener

708303172

$20.00

866

Torx Screw M5 X 14

250000742

$1.20
