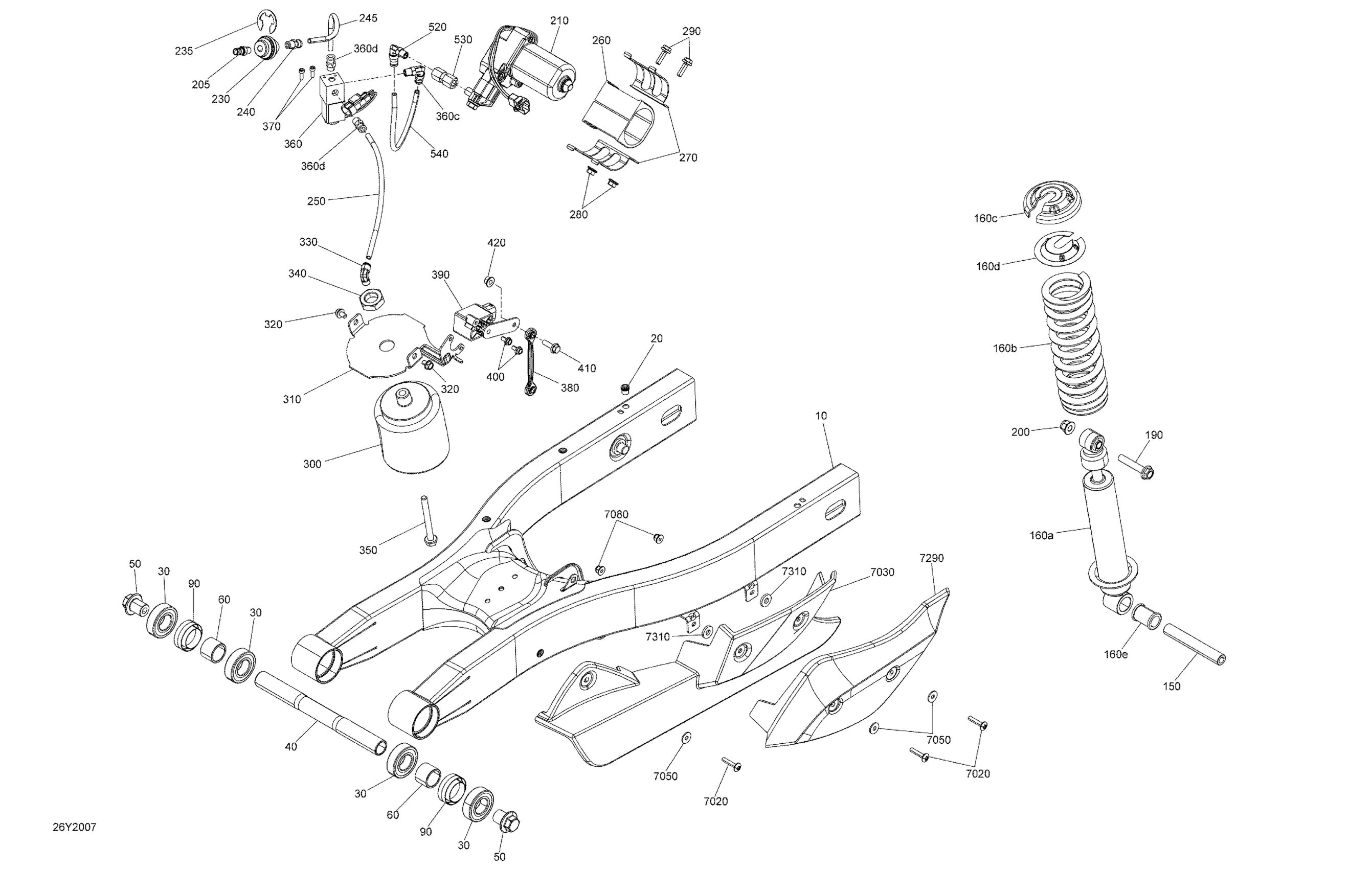

Can-Am RT LTD SE6, 2020 Suspension, Rear Diagram

#

Description
Price

10

Swing Arm

706001574

$456.00

20

Insert

293450275

$9.89

30

Ball Bearing

293350115

$11.15

40

Swing Arm Axle

706001182

$94.00

50

Bolt M20

706001579

$17.00

60

Spacer

706001152

$9.00

90

Sleeve

706001366

$1.00

150

Shock Absorber Shaft

706000409

$50.00

160a

Shock Absorber

706001552

$116.00

160b

Shock Absorber Spring

706001542

$61.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160e

Urethane Cushion

503191609

$18.00

190

Hex. Flange Screw M10 X 55

207605554

$8.00

200

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

205

Air Valve

706002797

$15.22

210

Compressor

706001349

$436.89

230

Pneumatic Connector

706004028

$19.00

235

Circlip

293370123

$3.00

240

Connector

706000869

$33.05

245

Hose 4.32Mm 3000Mm Long

219704415

$44.17

250

Hose 4.32Mm 3000Mm Long

219704415

$44.17

260

Compressor Isolator

706000631

$13.22

270

Compressor Bracket

503193103

$4.42

280

Hex. Flange Nut M6

233061414

$1.34

290

Hex. Flange Screw M6 X 20

207662044

$1.66

300

Air Damper Kit

219800175

$291.00

310

Support Plate

706001082

$19.00

320

Hex. Forming Screw M6 X 10

210261050

$1.42

330

Elbow 90°

706001018

$29.00

340

Jam Nut M20

250100119

$4.00

350

Hex. Flange Screw M8 X 75

207687544

$7.23

360>360d

Air Pressure Manifold | Included 360 to 360d

706003947

$300.00

360c

Elbow 90°

706000928

$26.12

360d

Connector

706000869

$33.05

370

Torx Head Screw M4 X 12

250000915

$2.88

380

Tie Rod

706202505

$24.00

390

Position Sensor

710001651

$175.00

400

Hex. Flange Screw M5 X 10

207551044

$3.38

410

Hex. Flange Screw M6 X 20

207662044

$1.66

420

Hex. Flange Nut M6

233061414

$1.34

520

Elbow 90°

706000928

$26.12

530

Ckeck Valve

706000831

$39.00

540

Hose 4.32Mm 3000Mm Long

219704415

$44.17

7020

Stainless, Torx Screw M6 X 30

250000842

$1.74

7030

Lower Belt Guard

705002092

$49.00

7050

Stainless Steel Flat Washer

234062670

$1.74

7080

Hex. Flange Elastic Nut M6

233261494

$1.26

7290

Belt Guard Moulding

705009446

$36.00

7310

Self-Adhesive Spacer

705015250

$3.71
