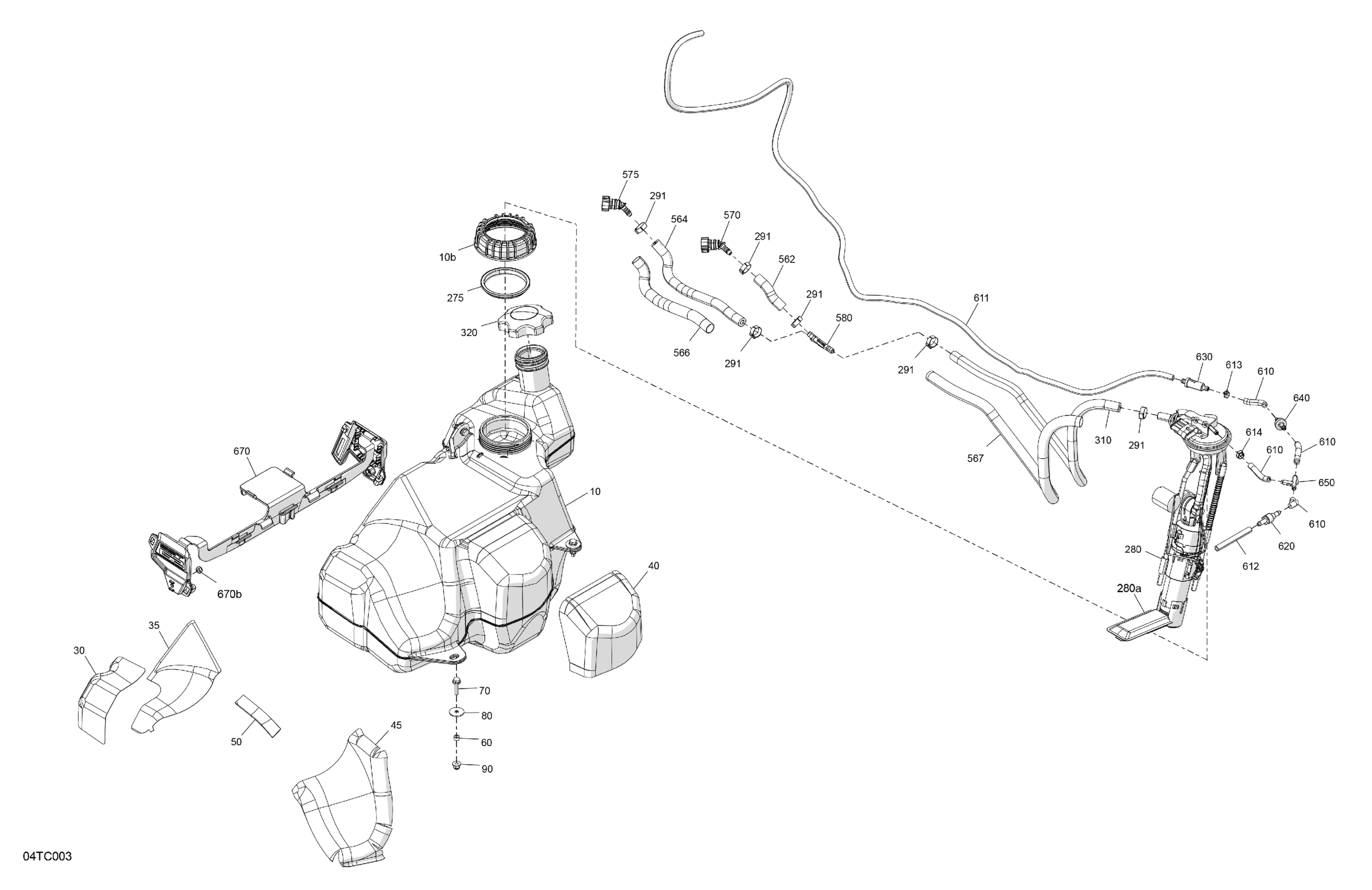

Can-Am Renegade 650 EFI - STD - 2023 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$236.54

10b

Fuel Pump Module Nut

709000328

$12.43

30

Heat Reflective Sheet

709000381

$5.18

35

Heat Reflective Sheet

709000387

$3.81

40

Heat Reflective Sheet

709001071

$8.48

45

Heat Reflective Sheet

709000388

$4.76

50

Rubber Pad

293830172

$2.13

60

Bushing | DS 650 X

293900104

$5.10

70

Hex. Flange Screw M6 X 25

207662544

$0.53

80

Washer

224060251

$0.55

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

275

Seal

709000208

$12.16

280

Fuel Pump | Includes 10a to 10b

709001517

$323.94

280a

Fuel Pre-Filter Kit

709000389

$73.85

291

Crimp Clamp

293650053

$2.42

310

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

320

Fuel Tank Cap

513033025

$19.47

562

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

564

Hose 7,94 MM ID 3000MM Long

219704475

$81.31

566

Tubing 16 Mm 1000Mm Long

219704408

$6.23

567

Tubing 16 Mm 1000Mm Long

219704408

$6.23

570

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

575

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

580

Y Fitting

709001329

$9.85

610

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

611

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

612

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

613

Spring Clamp

414415200

$0.81

614

Oetiker Clamp

293650042

$1.40

620

Check Valve

513033469

$25.32

630

Filter

709001120

$7.48

640

Check Valve

275500398

$8.57

650

Y-Fitting

293710059

$8.19

670

Hose Support Ass'y

709000359

$13.39

670b

Hex. Elastic Stop Nut M6

232561600

$0.92
