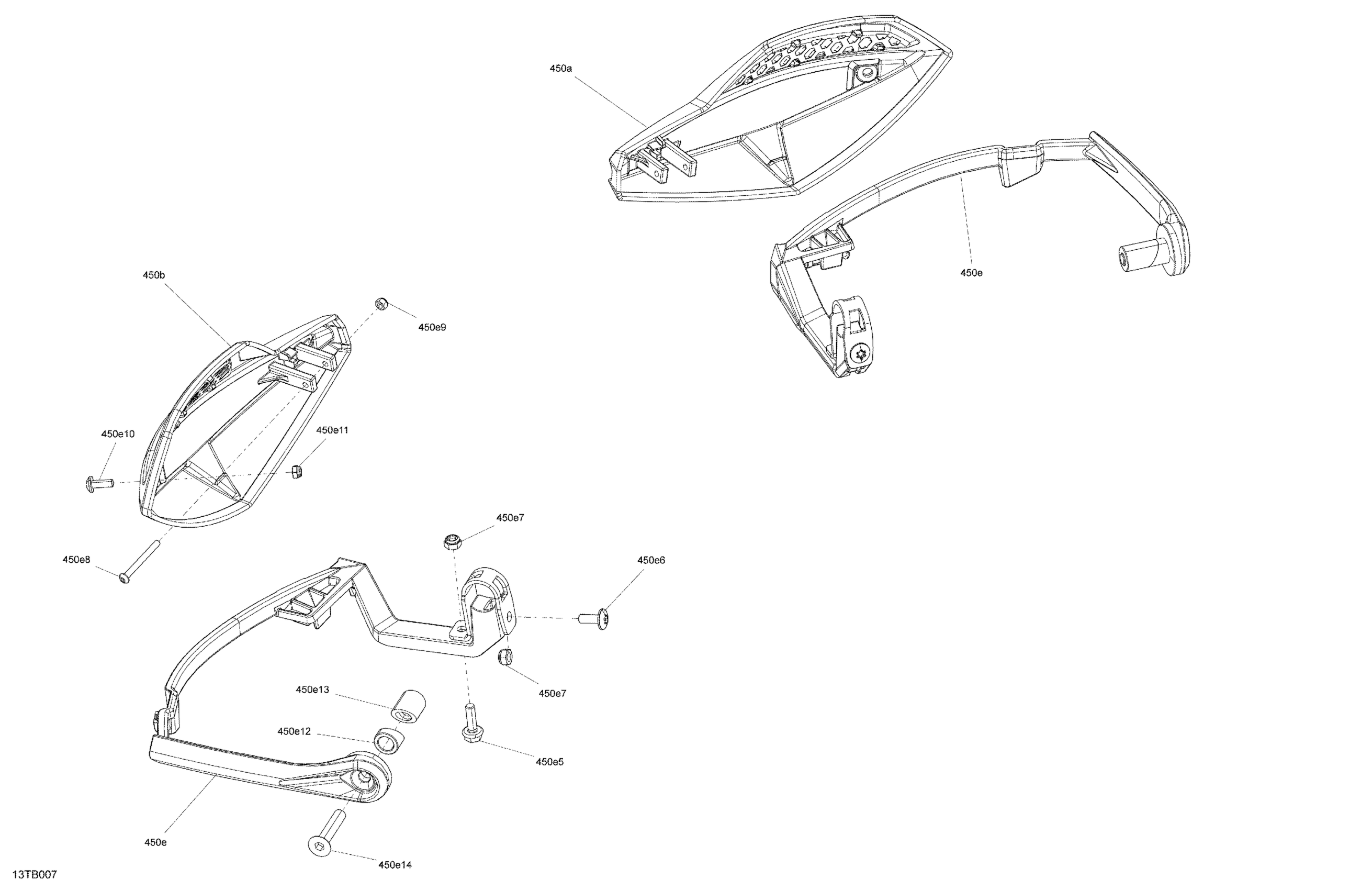

Can-Am Outlander 850 EFI - XTP - 2022 Mechanic - Air Deflector Diagram

Description

Price

450a

Deep Black RH Air Deflector | Camo Model

709401303

$35.99

450b

Deep Black LH Air Deflector | Camo Model

709401304

$35.99

450e

Air Deflector Support Kit | X

715001378

$138.49

450e5

Hex. Flange Screw M6 X 20

207662044

$2.00

450e6

Torx Head Screw M6 X 16

250000717

$2.11

450e7

Hex. Elastic Stop Nut M6

232561600

$1.15

450e8

Socket Head Screw M4 X 40 | X

205444086

$1.69

450e9

Elastic Stop Nut M4

232541414

$0.58

450e10

Torx Screw M5 X 14

250000742

$1.47

450e11

Hex. Elastic Nut M5 | X

232551600

$1.15

450e12

Small Bracket | DS 650 X

709400161

$21.99

450e13

Large Bracket | DS 650 X

709400162

$20.99

450e14

Socket Head Screw | X

205384034

$6.49

450e15

Steering Cover | STD

709400278

$13.99
