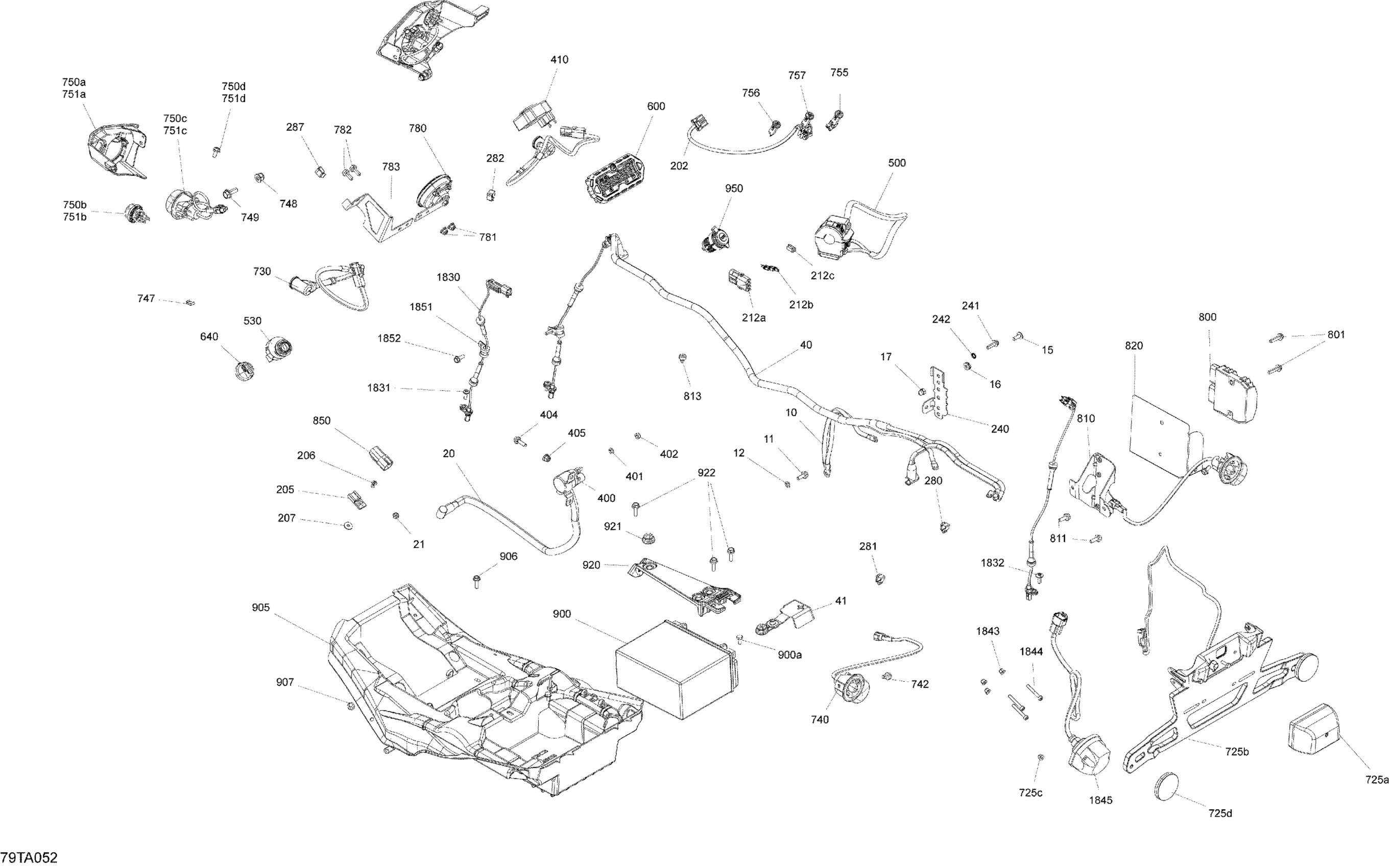

Can-Am Renegade T 1000 EFI - XXC - T Regulation, 2021 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004382

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$27.66

21

Elastic Stop Nut M6

232561434

$1.55

40

Positive Cable

710004376

$46.12

41

Battery Cable Cap

710006729

$7.37

202

Indicator Light Cable

710005840

$16.89

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

212b

Wire Seal

278000216

$2.55

212c

Clip

710000992

$4.00

240

Connector Bracket

710004118

$5.52

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

280

Clip

414227300

$1.45

281

Clip

414227300

$1.45

282

Clip

414227300

$1.45

287

Clip

414227300

$1.45

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561434

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

410

Flasher Unit

710003239

$78.43

500

LH Multi Fonction Control

710006211

$161.51

530

Ignition Switch

710008400

$78.43

600

Multifunction Compact Gauge

710007407

$355.35

640

Black, Electronic Key

710000817

$55.35

705

Torx Screw K50 X 16

250000720

$1.39

725a

License Plate Light | Europe

710005563

$124.58

725b

Plate Support | Europe

708300553

$22.28

725c

Flange Elastic Nut M5

233251434

$1.66

725d

Red Reflector

705011221

$12.32

730

Position Light Harness

710005676

$13.52

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

747

Clip

414479100

$1.86

748

Hex. Flange Elastic Nut M8

233281414

$1.14

749

Hex. Flange Screw M8 X 20

207682044

$0.92

750a

RH Flasher Support

710005900

$6.92

750b

Flasher | Europe

710002964

$35.14

750d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

750c

Day Light | Europe

710001726

$36.89

750c.a

Cap Protector | Model-Europe

710003269

$10.98

751a

LH Flasher Support

710005899

$6.92

751b

Flasher | Europe

710002964

$35.14

751c

Day Light | Europe

710001726

$36.89

751d

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

751c

Day Light | Europe

710001726

$36.89

751c.a

Cap Protector | Model-Europe

710003269

$10.98

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

757

Pilot Lamp | Model-Europe

710003909

$23.05

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

783

Horn Support

710006112

$6.75

800

Voltage Regulator

710005842

$159.87

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

810

Rectifier Support

710002587

$13.49

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

813

Rubber Bumper

293830005

$5.33

820

Deflector

710006746

$49.20

850

Housing

710003006

$7.24

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$46.12

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

910

Push Nut

732610072

$1.72

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

1830

Speed Sensor

710006981

$78.43

1831

Torx Screw K50 X 16

250000720

$1.39

1832

Torx Truss Screw M6 X 16

250000721

$1.39

1843

Flange Elastic Nut M5

233251434

$1.66

1844

Socket Head Screw M5 X 35

205053588

$1.56

1845

Trailer Harness

710005846

$212.28

1851

Clamp

293650256

$4.36

1852

Hex. Flange Screw M6 X 16

210261640

$1.74
