Description

Price

709a

LH Low Front Housing

710001083

$19.99

709b

LH Low Rear Housing

710001084

$12.99

709c

Setting Screw

710001147

$12.71

709d

LH Low Light Support

710006353

$26.99

709e

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$149.99

709e.1

Halogen Bulb

415129249

$41.49

709f

Hex. Screw M4 X 25

207142544

$2.00

709g

Flat Washer M5

234051410

$0.53

709h

Elastic Stop Nut M4

232541414

$0.58

709j

Phillips Screw K40 X 16

250000723

$0.98

709k

Painted Headlamp Support

705004309

$16.99

709m

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

709n

Light Harness

710005944

$30.99

709p

LH High Front Housing

710001087

$19.99

709q

LH High Rear Housing

710001088

$12.99

709r

LH High Light Support

710005853

$5.29

709s

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

709s.1

Halogen Bulb

415129249

$41.49

709t

LH Front Facia

705004508

$51.99

709u

Clip

414227300

$1.67

710a

RH Low Front Housing

710001081

$19.99

710b

RH Low Rear Housing

710001082

$12.99

710c

Setting Screw

710001147

$12.71

710d

RH Low Light Support

710006354

$20.99

710e

Low Beam Ass'y 60MM | Includes 709 to 709v

710006176

$149.99

710e.1

Halogen Bulb

415129249

$41.49

710f

Hex. Screw M4 X 25

207142544

$2.00

710g

Flat Washer M5

234051410

$0.53

710h

Elastic Stop Nut M4

232541414

$0.58

710j

Phillips Screw K40 X 16

250000723

$0.98

710k

Painted Headlamp Support

705004309

$16.99

710m

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

710n

Light Harness

710005944

$30.99

710p

RH High Front Housing

710001085

$19.99

710q

RH High Rear Housing

710001086

$12.99

710r

RH High Light Support

710005856

$5.29

710s

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710s.1

Halogen Bulb

415129249

$41.49

710t

RH Front Facia

705004509

$51.99

710u

Clip

414227300

$1.67

720

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

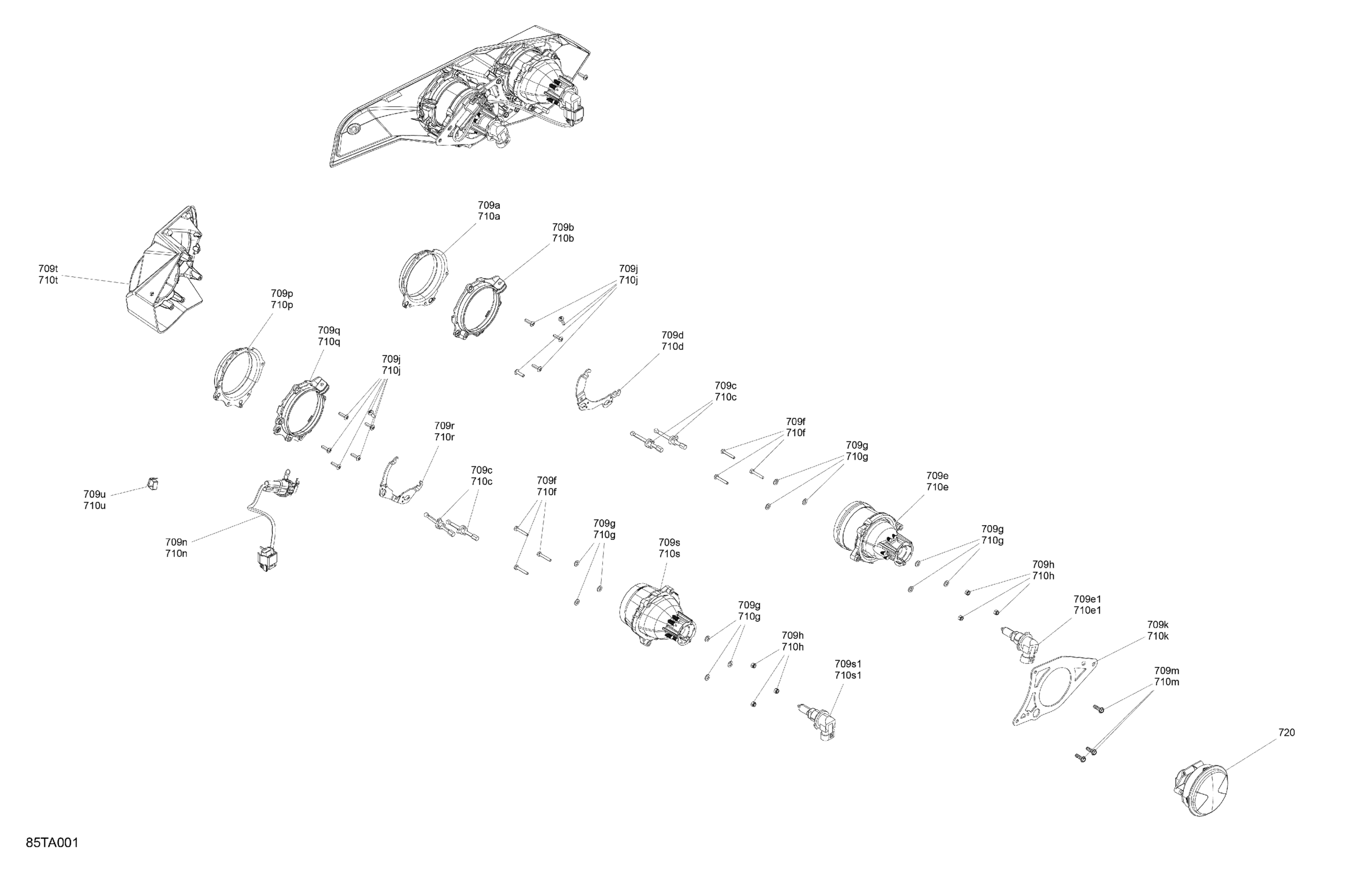

Can-Am Renegade 570 EFI - STD - 2021 Electric - Headlights Diagram

LH Low Front Housing

LH Low Rear Housing

Setting Screw

LH Low Light Support

Low Beam Ass'y 60MM | Includes 709 to 709v

Halogen Bulb

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Phillips Screw K40 X 16

Painted Headlamp Support

Hex. Flange Screw K50 X 2.24 X 16

Light Harness

LH High Front Housing

LH High Rear Housing

LH High Light Support

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

LH Front Facia

Clip

RH Low Front Housing

RH Low Rear Housing

Setting Screw

RH Low Light Support

Low Beam Ass'y 60MM | Includes 709 to 709v

Halogen Bulb

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Phillips Screw K40 X 16

Painted Headlamp Support

Hex. Flange Screw K50 X 2.24 X 16

Light Harness

RH High Front Housing

RH High Rear Housing

RH High Light Support

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

RH Front Facia

Clip

Tail Light Ass'y | Includes 32 to 33
