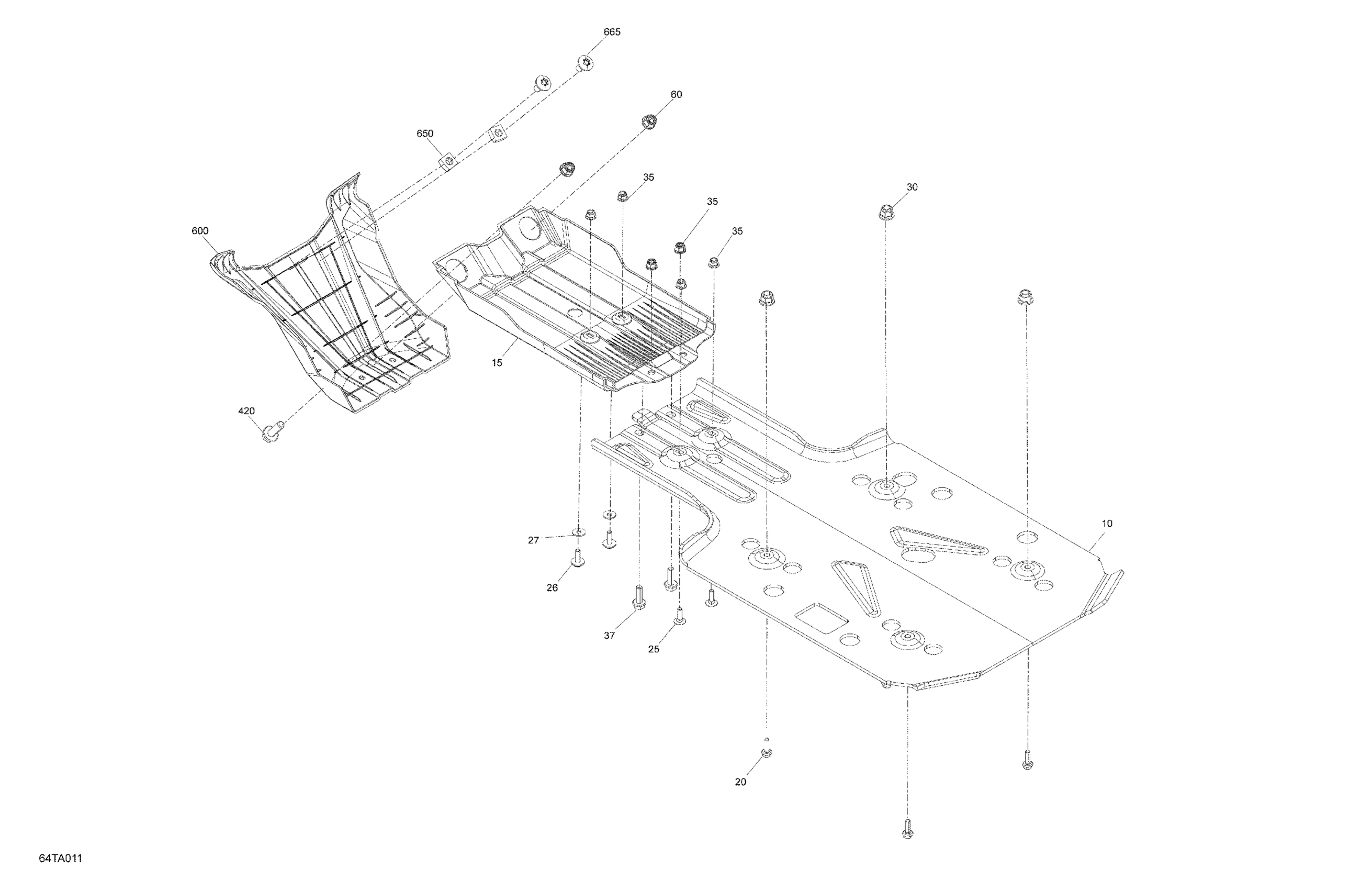

Can-Am Renegade 1000R EFI - XXC - 2021 Body - Skid Plate Diagram

#

Description

Price

10

Central Skid Plate | Package-XXC

705204031

$174.49

15

Skid Plate | XXC

705007820

$20.49

20

Hex. Flange Screw M6 X 20

207662054

$1.01

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

26

Torx Screw M6 X 20

250000712

$2.11

27

Stainless Steel Flat Washer

234062670

$2.11

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

37

Hex. Flange Screw M8 X 25

207682534

$2.11

60

Hex. Flange Elastic Nut M8

233281434

$2.11

420

Hex. Flange Screw M8 X 25

207682534

$2.11

600

Front Bumper Plate

705004850

$19.99

650

Square Nut M6

232862412

$1.49

665

Torx Screw M6 X 12

250000454

$4.44
