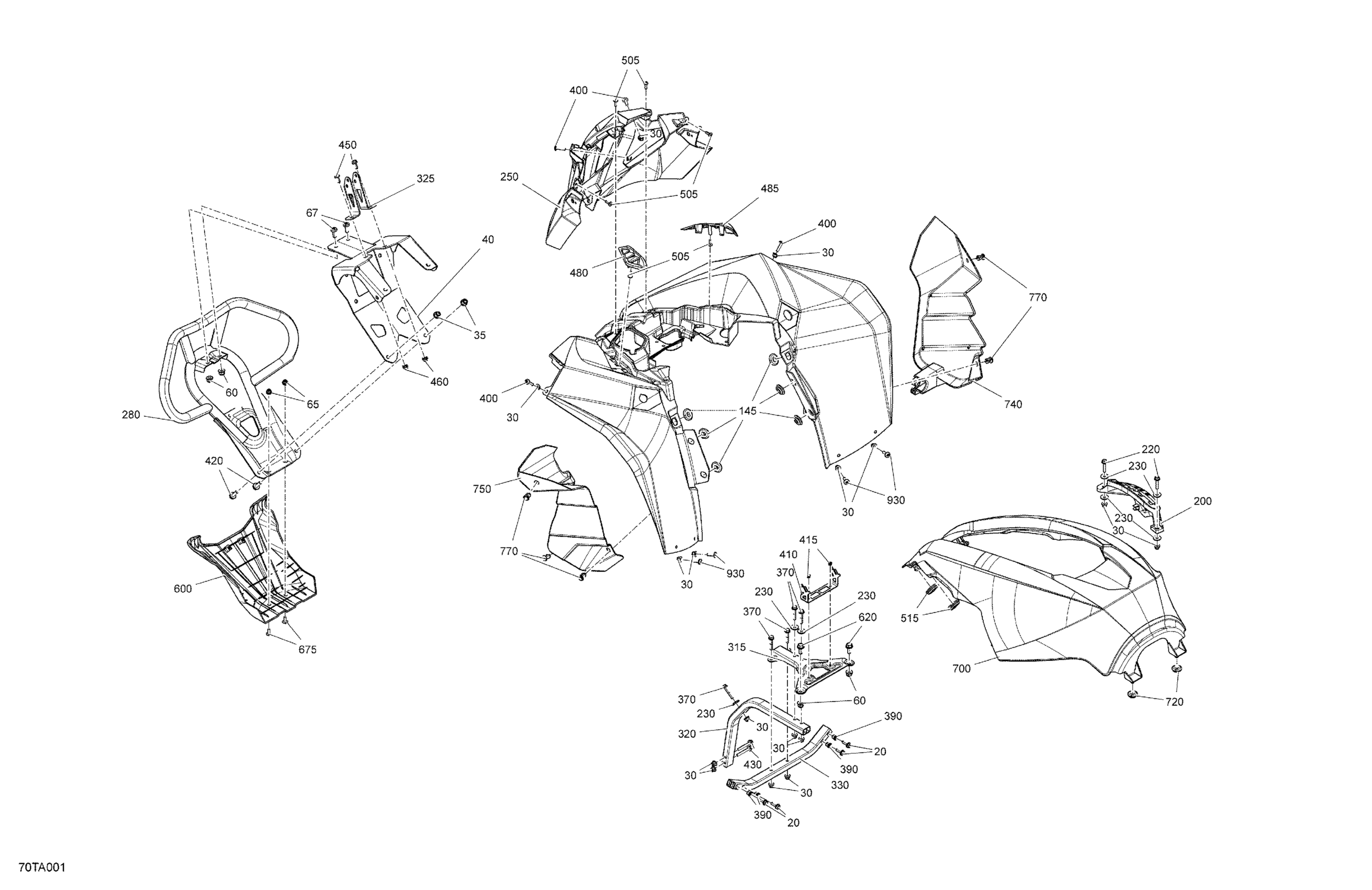

Can-Am Renegade T 1000 EFI - XXC - T Regulation, 2021 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

40

Winch Support

705013102

$244.99

60

Hex. Flange Elastic Nut M8

233281434

$2.11

65

Insert Half Hex Body M6 x 1.0

250100199

$3.19

67

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

145

Oval Washer

705000321

$5.61

200

Lever Indicator

705003838

$28.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Front Facia

705003948

$55.99

280

Can-Am Red, Front Bumper | Includes 280 to 280a

705015696

$279.99

315

Bracket

705003599

$24.49

320

Front Bent Sectional Tube

705016094

$104.99

325

Support

705005381

$24.99

330

Bent Sectional Tube

705016093

$104.99

370

Hex. Flange Screw M6 X 35

207663544

$0.90

390

Insert

293450275

$12.99

400

Torx Screw M6 X 25

250000758

$2.11

410

Fuse Holder

710002482

$8.99

415

Pop Rivet 3/16"

390402400

$0.35

420

Hex. Flange Screw M8 X 25

207682534

$2.11

430

Hex. Flange Screw M6 X 45

207664544

$1.46

450

Hex. Flange Screw M6 X 16

207661644

$0.74

460

Insert Half Hex Body M6 x 1.0

250100199

$3.19

480

LH Grille

705008137

$20.99

485

RH Grille

705008138

$20.99

505

Torx Screw K50 X 16

250000720

$1.69

515

Oblong Grommet

705003668

$5.79

515

Oblong Grommet

705003668

$5.79

600

Front Bumper Plate

705004850

$19.99

620

Hex. Flange Screw M8 X 20

207682044

$1.15

675

Torx Screw M6 X 16

250000755

$0.87

700

Central Panel Ass'y

715007426

$389.99

720

Grommet

705003264

$4.09

740

RH Front Wheel Arch Protector

705017922

$26.99

750

LH Front Wheel Arch Protector

705017926

$26.99

770

Tuflok Plastic Rivet

293150230

$1.47

930

Torx Screw M6 X 20

250000712

$2.11
