- 002 - Renegade T 1000 EFI - T Regulation, 2020
10- Electrical System - Main Section

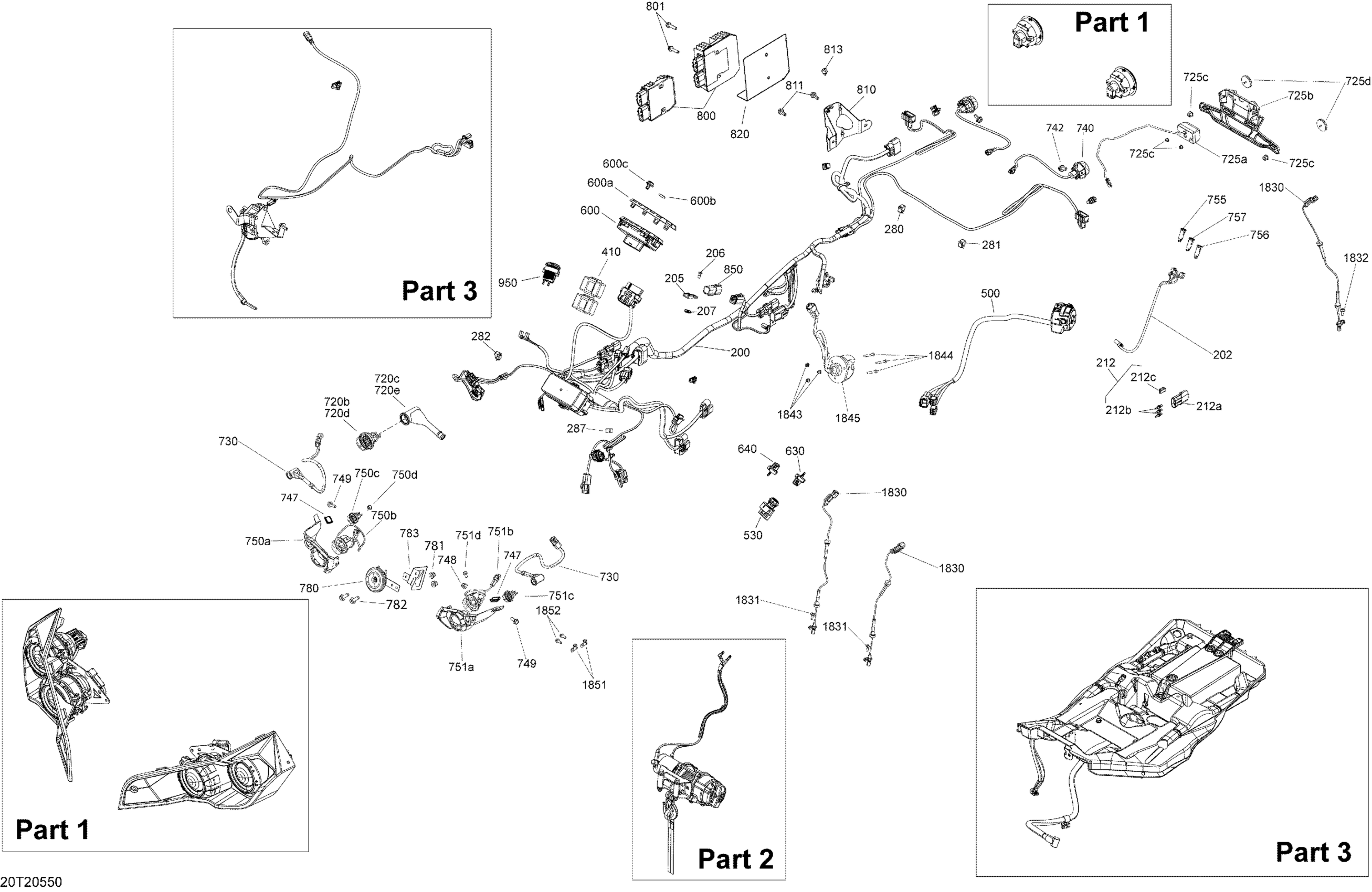

Can-Am 002 - Renegade T 1000 EFI - T Regulation, 2020 10- Electrical System - Main Section Diagram
#
200
Main Wiring Harness
710006713
Unavailable
202
Indicator Light Cable
710005840
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
280
Clip
414227300
Unavailable
281
Clip
414227300
Unavailable
282
Clip
414227300
Unavailable
287
Clip
414227300
Unavailable
410
Flasher Unit
710003239
Unavailable
500
LH Multi Fonction Control
710006211
Unavailable
530
Ignition Switch
710008400
Unavailable
600
Speedometer
710006216
Unavailable
600a
Trim Ring Ass'y
710001183
Unavailable
600b
BRP Logo13 mm
704904615
Unavailable
600c
Button
715900265
Unavailable
630
Grey, Electronic Key
710002183
Unavailable
640
Black, Electronic Key
710000817
Unavailable
720b
Day Light | Europe
710001726
Unavailable
720c
Cap Protector | Model-Europe
710003269
Unavailable
720d
Day Light | Europe
710001726
Unavailable
720e
Cap Protector | Model-Europe
710003269
Unavailable
725a
License Plate Light | Europe
710005563
Unavailable
725b
Plate Support | Europe
708300553
Unavailable
725c
Flange Elastic Nut M5
233251434
Unavailable
725d
Red Reflector
705011221
Unavailable
730
Position Light Harness
710005676
Unavailable
740
Flasher | Europe
710002964
Unavailable
742
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
747
Clip
414479100
Unavailable
748
Hex. Flange Elastic Nut M8
233281414
Unavailable
749
Hex. Flange Screw M8 X 20
207682044
Unavailable
750a
RH Flasher Support
710005900
Unavailable
750b
Flasher | Europe
710002964
Unavailable
750c
Day Light | Europe
710001726
Unavailable
750d
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
751a
LH Flasher Support
710005899
Unavailable
751b
Flasher | Europe
710002964
Unavailable
751c
Day Light | Europe
710001726
Unavailable
751d
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
755
Pilot Light Trailer Flasher
710005766
Unavailable
756
Pilot Light Tail Lamp
710005767
Unavailable
757
Pilot Lamp | Model-Europe
710003909
Unavailable
780
Horn
710004791
Unavailable
781
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
782
Hex. Flange Screw M6 X 16
207661644
Unavailable
783
Horn Support
710006112
Unavailable
800
Voltage Regulator
710005842
Unavailable
801
Hex. Flange Forming Screw M6 X 25
210262550
Unavailable
810
Rectifier Support
710002587
Unavailable
811
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
813
Rubber Bumper
293830005
Unavailable
820
Deflector
710006746
Unavailable
850
Housing
710003006
Unavailable
950
DC Outlet
710001248
Unavailable
1830
Speed Sensor
710006981
Unavailable
1831
Torx Screw K50 X 16
250000720
Unavailable
1832
Torx Truss Screw M6 X 16
250000721
Unavailable
1843
Flange Elastic Nut M5
233251434
Unavailable
1844
Socket Head Screw M5 X 35
205053588
Unavailable
1845
Trailer Harness
710005846
Unavailable
1851
Clamp
293650256
Unavailable
1852
Hex. Flange Screw M6 X 16
210261640
Unavailable
