09- Body - Front Section - Carbon Black

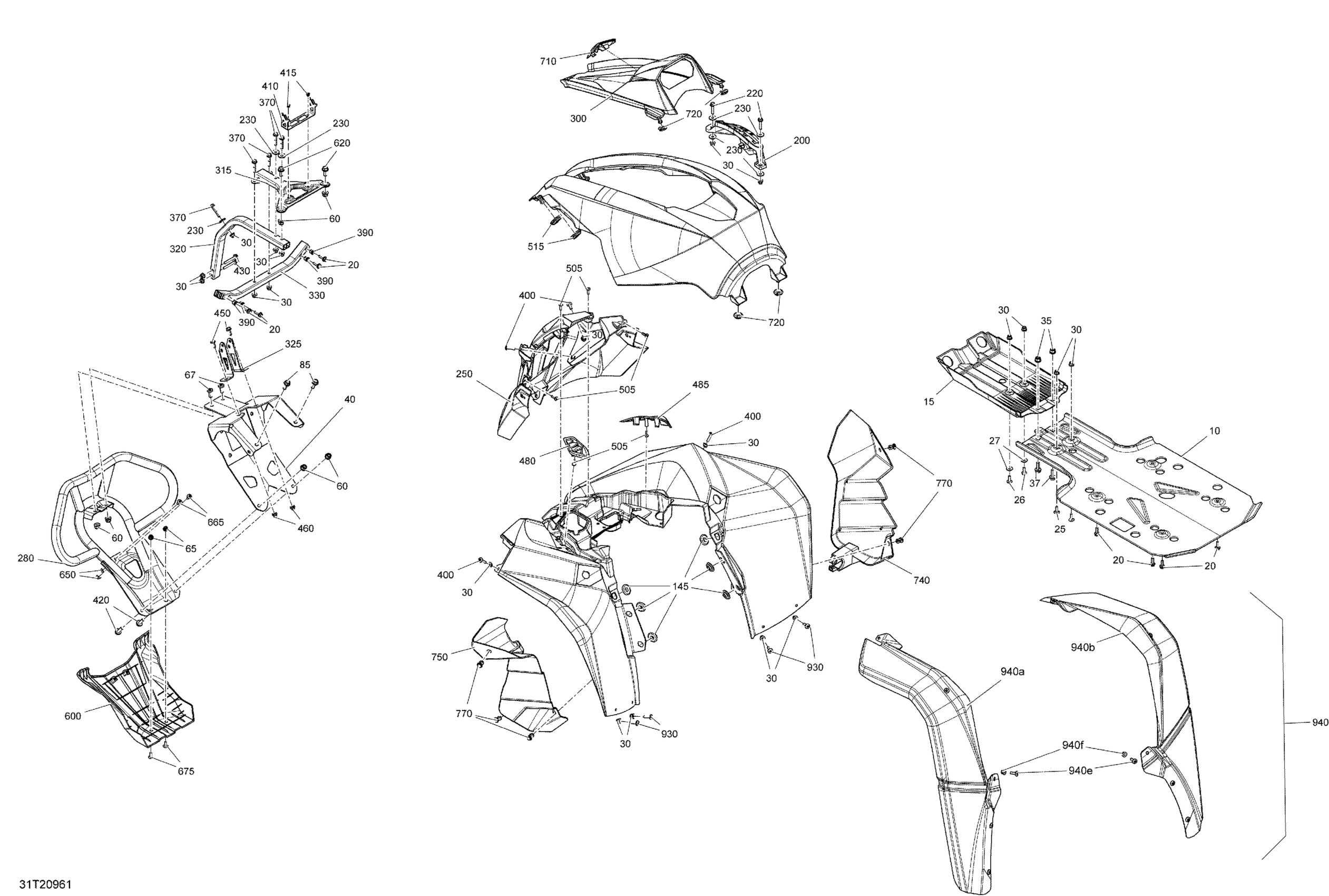

Can-Am 002 - Renegade T 1000 EFI - T Regulation, 2020 09- Body - Front Section - Carbon Black Diagram
#
10
Central Skid Plate | Package-XXC
705204031
Unavailable
15
Skid Plate | XXC
705007820
Unavailable
20
Hex. Flange Screw M6 X 20
207662054
Unavailable
25
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
26
Torx Screw M6 X 20
250000712
Unavailable
27
Stainless Steel Flat Washer
234062670
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
35
Hex. Flange Elastic Nut M8
233281434
Unavailable
37
Hex. Flange Screw M8 X 25
207682534
Unavailable
40
Winch Support
705013102
Unavailable
40a
Bumper Support
705003505
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
65
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
67
Torx Screw M8 X 20, Scotch Grip
250000740
Unavailable
85
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
145
Oval Washer
705000321
Unavailable
200
Lever Indicator
705003838
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
250
Front Facia
705003948
Unavailable
280
Front Bumper
705011635
Unavailable
300
Dashboard
705003556
Unavailable
315
Bracket
705003599
Unavailable
320
Front Bent Sectional Tube
705016094
Unavailable
325
Support
705005381
Unavailable
330
Bent Sectional Tube
705016093
Unavailable
370
Hex. Flange Screw M6 X 35
207663544
Unavailable
390
Insert
293450275
Unavailable
400
Torx Screw M6 X 25
250000758
Unavailable
410
Fuse Holder
710002482
Unavailable
415
Pop Rivet 3/16"
390402400
Unavailable
420
Hex. Flange Screw M8 X 25
207682534
Unavailable
430
Hex. Flange Screw M6 X 45
207664544
Unavailable
450
Hex. Flange Screw M6 X 16
207661644
Unavailable
460
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
480
LH Grille
705008137
Unavailable
485
RH Grille
705008138
Unavailable
505
Torx Screw K50 X 16
250000720
Unavailable
515
Oblong Grommet
705003668
Unavailable
600
Front Bumper Plate
705004850
Unavailable
620
Hex. Flange Screw M8 X 20
207682044
Unavailable
650
Square Nut M6
232862412
Unavailable
665
Torx Screw M6 X 12
250000454
Unavailable
675
Torx Screw M6 X 16
250000755
Unavailable
710
Cap
705002353
Unavailable
720
Grommet
705003264
Unavailable
740
RH Front Wheel Arch Protector
705017922
Unavailable
750
LH Front Wheel Arch Protector
705017926
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
930
Torx Screw M6 X 20
250000712
Unavailable
940
Mudguard Kit | Includes 940 to 940f5
705012695
Unavailable
940a
LH Front Mudguard
705012696
Unavailable
940b
RH Front Mudguard
705012697
Unavailable
940e
Torx Screw M6 X 20
250000722
Unavailable
940f
Flange Elastic Nut M6
233261434
Unavailable
