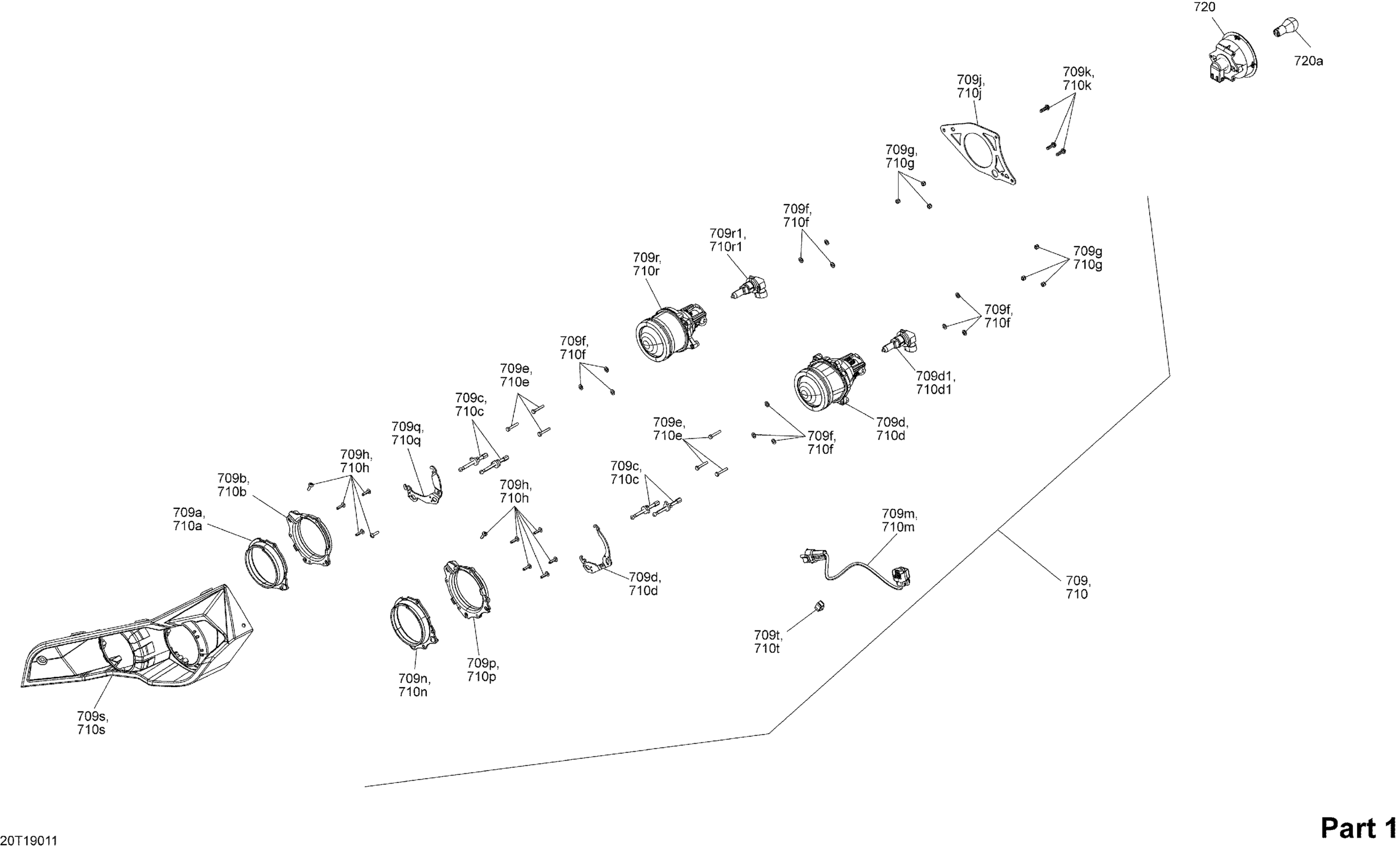

Can-Am Renegade 850 EFI - 2019 Electrical - 850 EFI - Part 1 Diagram

#

Description
Price

709a

LH Low Front Housing

710001083

$19.99

709b

LH Low Rear Housing

710001084

$12.99

709c

Setting Screw

710001147

$12.71

709d

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

709d1

Halogen Bulb

415129249

$41.49

709e

Hex. Screw M4 X 25

207142544

$2.00

709f

Flat Washer M5

234051410

$0.53

709g

Elastic Stop Nut M4

232541414

$0.58

709h

Phillips Screw K40 X 16

250000723

$0.98

709j

Painted Headlamp Support

705004309

$16.99

709k

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

709m

Light Harness

710005944

$30.99

709n

LH High Front Housing

710001087

$19.99

709p

LH High Rear Housing

710001088

$12.99

709q

LH High Light Support

710005853

$5.29

709r

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

709r1

Halogen Bulb

415129249

$41.49

709s

LH Front Facia

705004508

$51.99

709t

Clip

414227300

$1.67

710a

RH Low Front Housing

710001081

$19.99

710b

RH Low Rear Housing

710001082

$12.99

710c

Setting Screw

710001147

$12.71

710d

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

710d1

Halogen Bulb

415129249

$41.49

710d1

Halogen Bulb

415129249

$41.49

710e

Hex. Screw M4 X 25

207142544

$2.00

710f

Flat Washer M5

234051410

$0.53

710g

Elastic Stop Nut M4

232541414

$0.58

710h

Phillips Screw K40 X 16

250000723

$0.98

710j

Painted Headlamp Support

705004309

$16.99

710k

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

710m

Light Harness

710005944

$30.99

710n

RH High Front Housing

710001085

$19.99

710p

RH High Rear Housing

710001086

$12.99

710q

RH High Light Support

710005856

$5.29

710r

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710r1

Halogen Bulb

415129249

$41.49

710s

RH Front Facia

705004509

$51.99

710t

Clip

414227300

$1.67

720

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

720a

Bulb

520000758

$9.10
