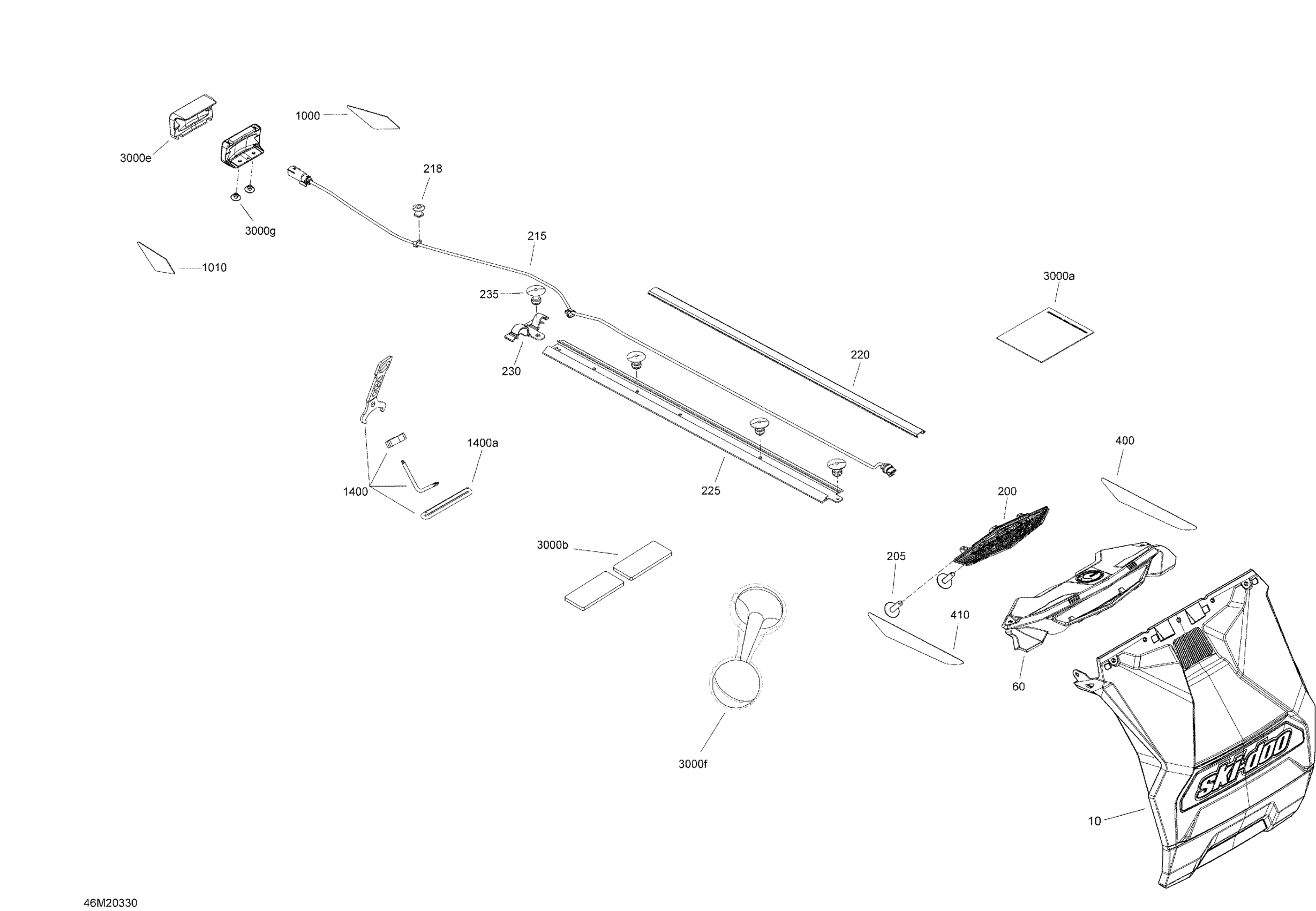

Ski-Doo 002 - RENEGADE 850 E-TEC - Europe, 2020 10- Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$126.99

Light Fairing

520001487

$20.99

200

Rear Light

520001143

$99.49

205

Screw M4 X 16

250000725

$3.49

215

Rear Light Harness

515178265

$26.99

218

Pop Rivet 3/16"

390402200

$0.35

220

Extruded Trim

520002921

$22.49

225

Wire Protector

520001703

$20.99

230

Cap

520001722

$11.49

235

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400c

520001814

$27.99

1400a

Rope Starter

529017500

$1.17

3000a

Waranty Registration Form

219400038

Unavailable

3000b

Amber, Reflector

520000271

$19.99

3000e

Deep Black, Reflector Support

520000871

$5.79

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable
