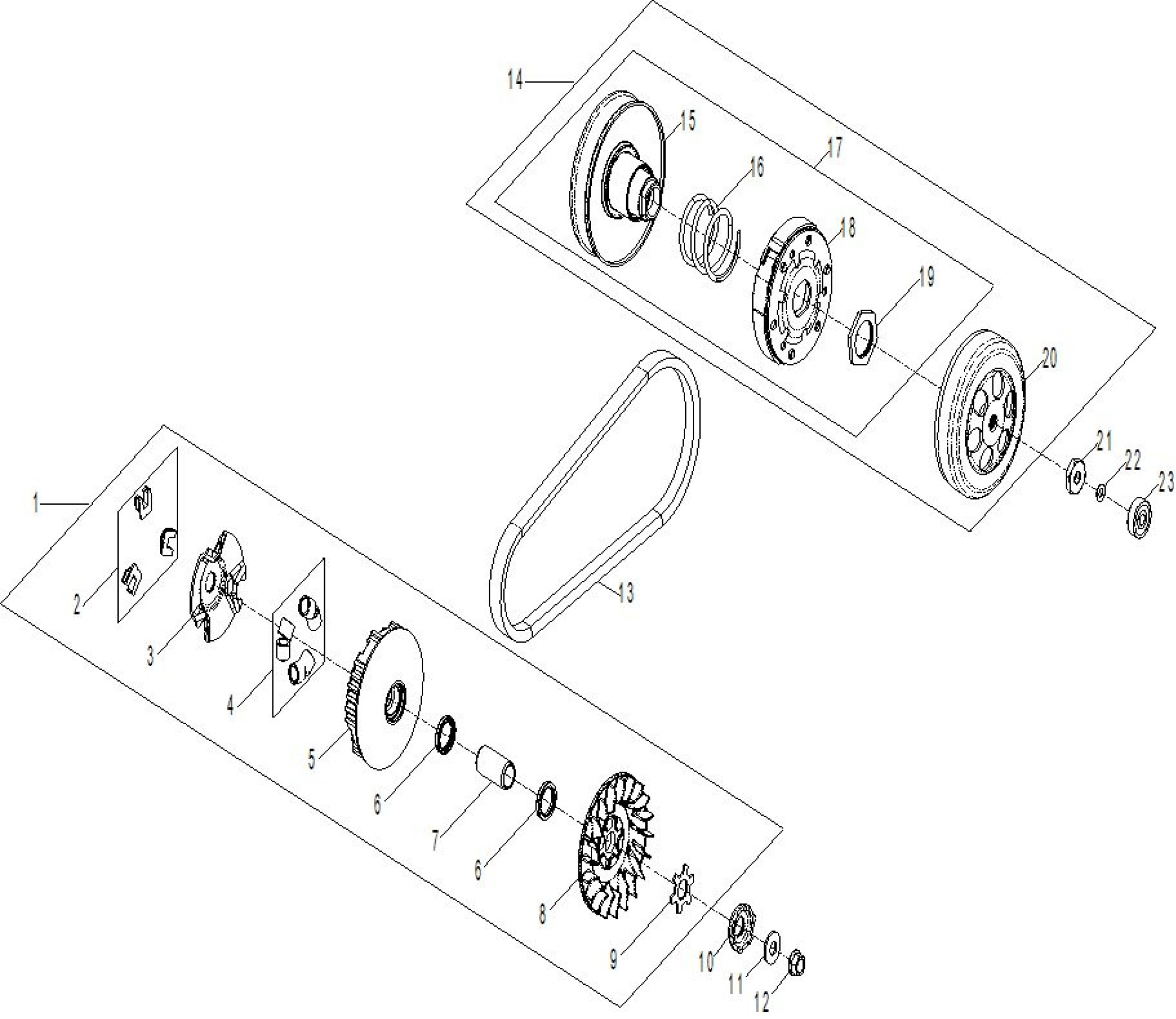

Can-Am Renegade 70 EFI CARB - Catalyst Gray, 2024 Engine - Drive Clutch 70 Diagram

#

Description
Price

1

Driver Pulley Ass'y | Includes 1 to 9

A2210322L000

$209.99

2

Slider Set

A2213318S000

$4.72

3

Ramp Plate

A2213118S000

$33.99

4

Roller Set (10.3g)

A2212022L000

$33.99

5

Sliding Plate Set

A2211018S000

$33.99

6

Oil Seal

A96500212804

$19.49

7

Grommet

A96401162142

$19.99

8

Fixed Plate

A2210218S000

$19.99

9

Clamp Washer

A2215018S000

$4.44

10

Single Way Clutch

A22140112000

$28.99

11

Conical Spring Washer

A941251024020000

$8.29

12

Hexagonal Head Nut

A94050100000C3

$3.80

13

Belt

A2310018S000

$105.99

14

Drive Ass'y | Includes 14 to 20

A2200018S00A

$359.99

17

Transmission Set

A2220018S00A

$359.99

15

Driven Pulley

A2201118S000

$154.99

16

Compression Spring

A2323318S000

$34.99

18

Clutch Ass'y

A2234918S000

$119.99

19

Hexagonal Nut

A90202240000B3

$11.11

20

Clutch Case

A2210018S000

$119.99

21

Hexagonal Nut M10 x 24

A94001100004C3

$2.53

22

O-RIng

A9321000630

$13.16

23

Bearing_Ball (638ZZ/L542)

A9610063800ZZ000/ZG

Unavailable
