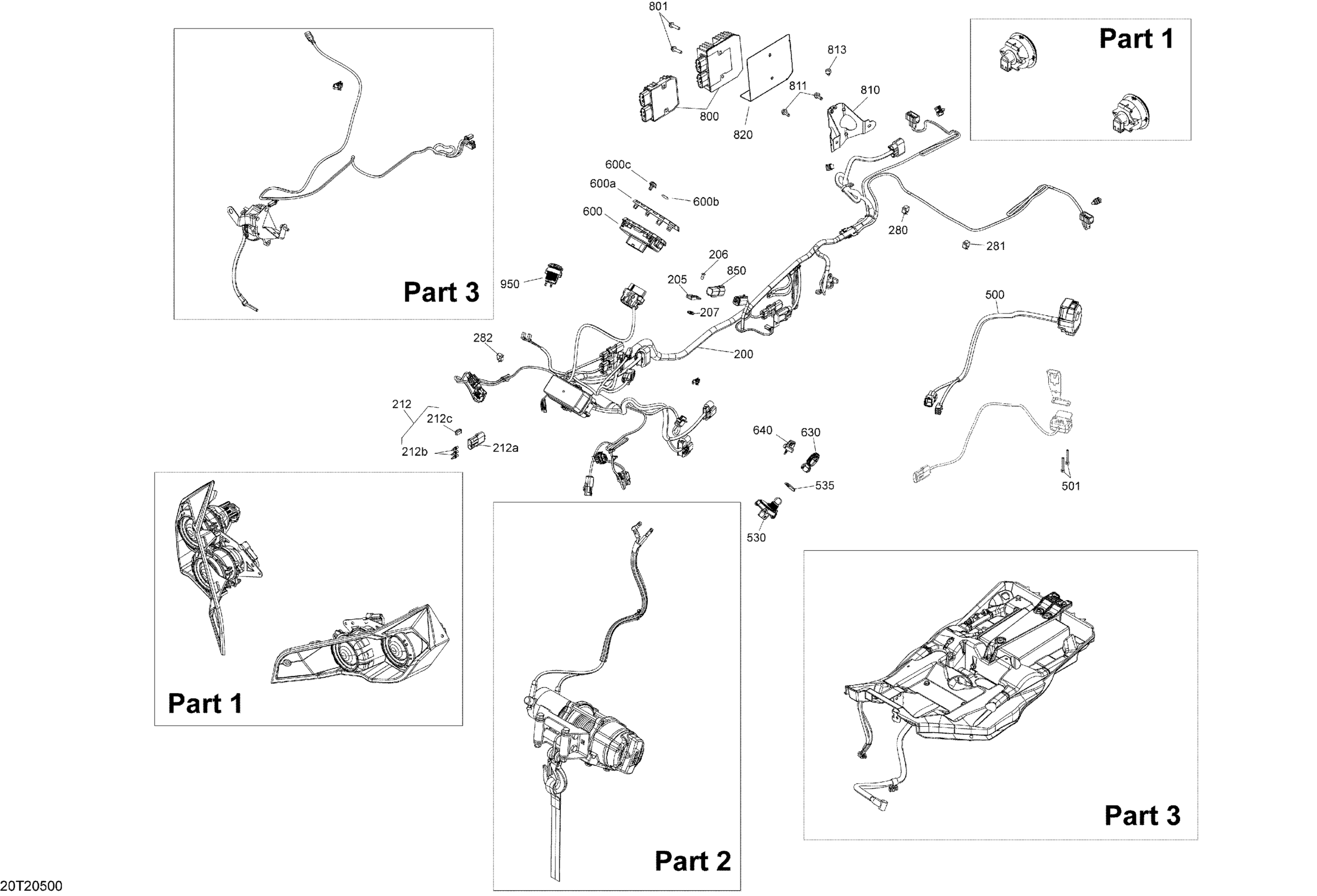

Can-Am Renegade 650 EFI - XXC - International, 2020 Electrical System - Main Section Diagram

Description

Price

200

Harness | CARB Vehicle - Packages XTP, XMR & LTD

710006240

$989.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

212b

Wire Seal

278000216

$3.19

212c

Clip

710000992

$4.29

280

Clip

414227300

$1.67

281

Clip

414227300

$1.67

282

Clip

414227300

$1.67

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

535

Safety Nut (DESS Switch)

278002963

$3.28

600

Speedometer

710006216

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600b

BRP Logo13 mm

704904615

$13.49

600c

Button

715900265

$13.71

630

Green Key RFID | Except Model Europe, Except T3

710005232

$63.49

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

800

Voltage Regulator

710005842

$189.99

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

810

Rectifier Support

710002587

$15.99

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

813

Rubber Bumper

293830005

$8.09

820

Deflector

710006746

$53.99

850

Housing

710003006

$8.79

950

DC Outlet

710001248

$37.99
