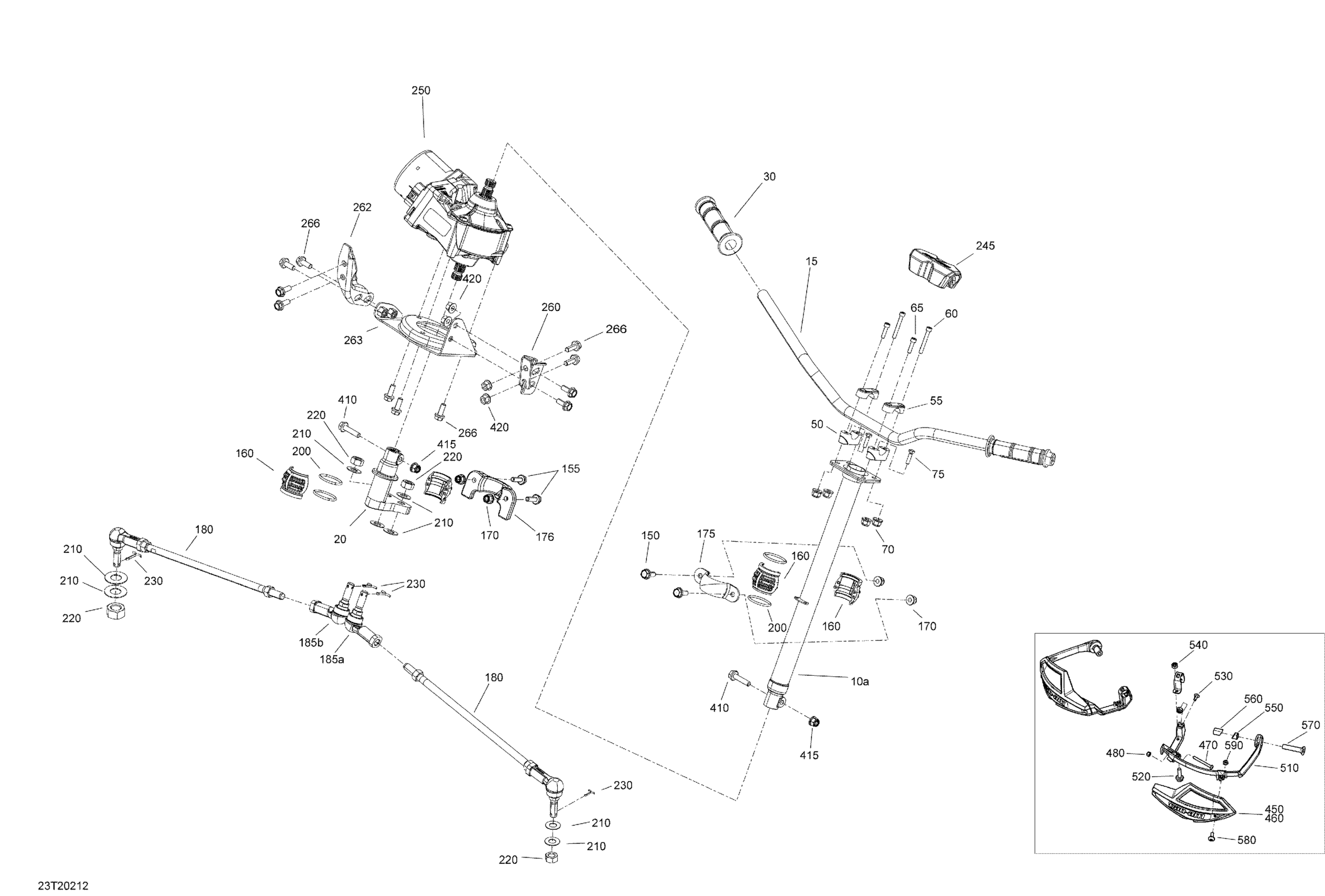

Can-Am Renegade 650 EFI - XXC - International, 2020 Steering Diagram

#

Description
Price

10a

Main Tube Kit | Model With DPS

703501108

$74.99

15

Sunburst Yellow, Handle Bar

709402063

$110.99

20

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

30

Handle Grip

709400493

$14.83

50

Lower Mounting Clamp

709402750

$25.99

55

Support

709400496

$22.49

60

Socket Head Screw M8 X 60

205086060

$4.12

65

Socket Screw M8 X 30

205083060

$2.96

70

Hex. Elastic Flange Nut M8

233281416

$1.48

75

Hex. Screw M8 X 30

207183060

$1.58

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

245

Steering Cover | XTP

709402328

$90.99

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

LH Power Steering Bracket | Model With DPS

709402184

$18.49

262

RH Bracket | Model With DPS

709402185

$28.99

263

Power Steering Support | Model With DPS

709401743

$19.99

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

410

Hex. Flange Screw M8 X 35

250000986

$2.11

415

Hex. Elastic Flange Nut M8

233281416

$1.48

420

Hex. Flange Nut M8

233081416

$1.15

450

Sunburst Yellow RH Air Deflector

709402053

$19.99

460

Sunburst Yellow LH Air Deflector

709402054

$19.99

470

Socket Head Screw M4 X 40

205444056

$2.11

480

Elastic Stop Nut M4

232541414

$0.58

510

Air Deflector Support Kit | X

715001378

$138.49

510

Air Deflector Support Kit | X

715001378

$138.49

510

Air Deflector Support Kit | X

715001378

$138.49

520

Hex. Flange Screw M6 X 20

207662044

$2.00

530

Torx Head Screw M6 X 16

250000717

$2.11

540

Hex. Elastic Stop Nut M6

232561600

$1.15

550

Small Bracket | DS 650 X

709400161

$21.99

560

Large Bracket | DS 650 X

709400162

$20.99

570

Socket Head Screw | X

205384034

$6.49

580

Torx Screw M5 X 14

250000742

$1.47

590

Hex. Elastic Nut M5 | X

232551600

$1.15
