Description

Price

10a

Deep Black, Rail Suspension 137

503195475

$309.99

10b

Black, Slider Shoe 137''

503196283

$29.49

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10e

Slide Protector

503192530

$19.99

10f

Washer

250200140

$1.01

10g

Hex. Flange Screw M5 X 25

207652544

$0.50

10h

Flange Elastic Nut M5

233251434

$2.00

10j

Deep Black, LH Rail Reinforcement

503196477

$52.99

10k

Washer

503192494

$3.17

10m

Hex. Cap Screw M8 X 30

207183054

$4.44

10n

Elastic Flange Nut M8

233281466

$1.01

15j

Deep Black, RH Rail Reinforcement

503196478

$52.99

18

Cam Adjustment

503195683

$18.49

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$19.49

310b

Rubber Stopper Ass'y

503195523

$5.59

315

Washer

503191273

$1.35

316

Pop Rivet 3/16"

293150013

$1.37

320

Rubber Stopper

503192750

$14.99

325

Washer

503191273

$1.35

326

Pop Rivet 3/16

293150224

$1.01

440

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

440a

Ball Bearing | Package-STD

503190396

$14.30

440b

Retaining Ring

415129371

$12.01

441

Casted Support

503193894

$16.49

442

Labyrinth Seal

503190434

$6.09

443

Wheel Cup M6

503191820

$4.99

444

Hex. Flange Screw M6 X 70

250000944

$4.44

445

Hex. Flange Elastic Nut M6

233261466

$2.00

446

Hex. Flange Screw M6 X 25

250000945

$4.44

447

Hex. Flange Elastic Nut M6

233261466

$2.00

448

Black, Wheel Cap

503192771

$2.39

450

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

450a

Ball Bearing | Package-STD

503190396

$14.30

450b

Retaining Ring

415129371

$12.01

451

Casted Support

503193894

$16.49

452

Labyrinth Seal

503190434

$6.09

453

Wheel Cup M6

503191820

$4.99

454

Hex. Flange Screw M6 X 70

250000944

$4.44

455

Hex. Flange Elastic Nut M6

233261466

$2.00

456

Hex. Flange Screw M6 X 25

250000945

$4.44

457

Hex. Flange Elastic Nut M6

233261466

$2.00

458

Black, Wheel Cap

503192771

$2.39

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

460a

Ball Bearing | Package-STD

503190396

$14.30

460b

Retaining Ring

415129371

$12.01

461

Casted Support

503193894

$16.49

462

Labyrinth Seal

503190434

$6.09

463

Wheel Cup M6

503191820

$4.99

464

Hex. Flange Screw M6 X 70

250000944

$4.44

465

Hex. Flange Elastic Nut M6

233261466

$2.00

466

Hex. Flange Screw M6 X 25

250000945

$4.44

467

Hex. Flange Elastic Nut M6

233261466

$2.00

468

Black, Wheel Cap

503192771

$2.39

600

Wheel 180 | Includes 600 to 600a

503191491

$51.99

600a

Ball Bearing

293350115

$12.11

610

Rear Axle

503167900

$139.99

620

Center Spacer

503156000

$12.01

650

Washer

503180400

$3.49

660

Outer Spacer

503189809

$18.89

670

Wheel 180 | Includes 600 to 600a

503191491

$51.99

670a

Ball Bearing

293350115

$12.11

710

Washer

503183300

$5.82

720

Conical Spring Washer 10 mm

234201474

$1.69

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196210

$12.64

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503193808

$40.99

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1000

Axle Stopper Strap

503196476

$11.49

1010

Spacer

503189265

$4.99

1020

Washer

503192494

$3.17

1030

Bolt M8 X 248mm

503192440

$30.49

1040

Elastic Flange Nut M8

233281466

$1.01

1090

Central Axle Shock Absorber

503196676

$189.99

1100

Spacer

503195825

$1.69

1110

Washer

503192494

$3.17

1120

Bolt M8 X 248mm

503192440

$30.49

1130

Elastic Flange Nut M8

233281466

$1.01

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1240

Axle

503194845

$13.49

1250

Washer

503192494

$3.17

1260

Bolt M8 X 248mm

503192440

$30.49

1270

Elastic Flange Nut M8

233281466

$1.01

1810

Black, Wheel Cap

503195878

$2.39

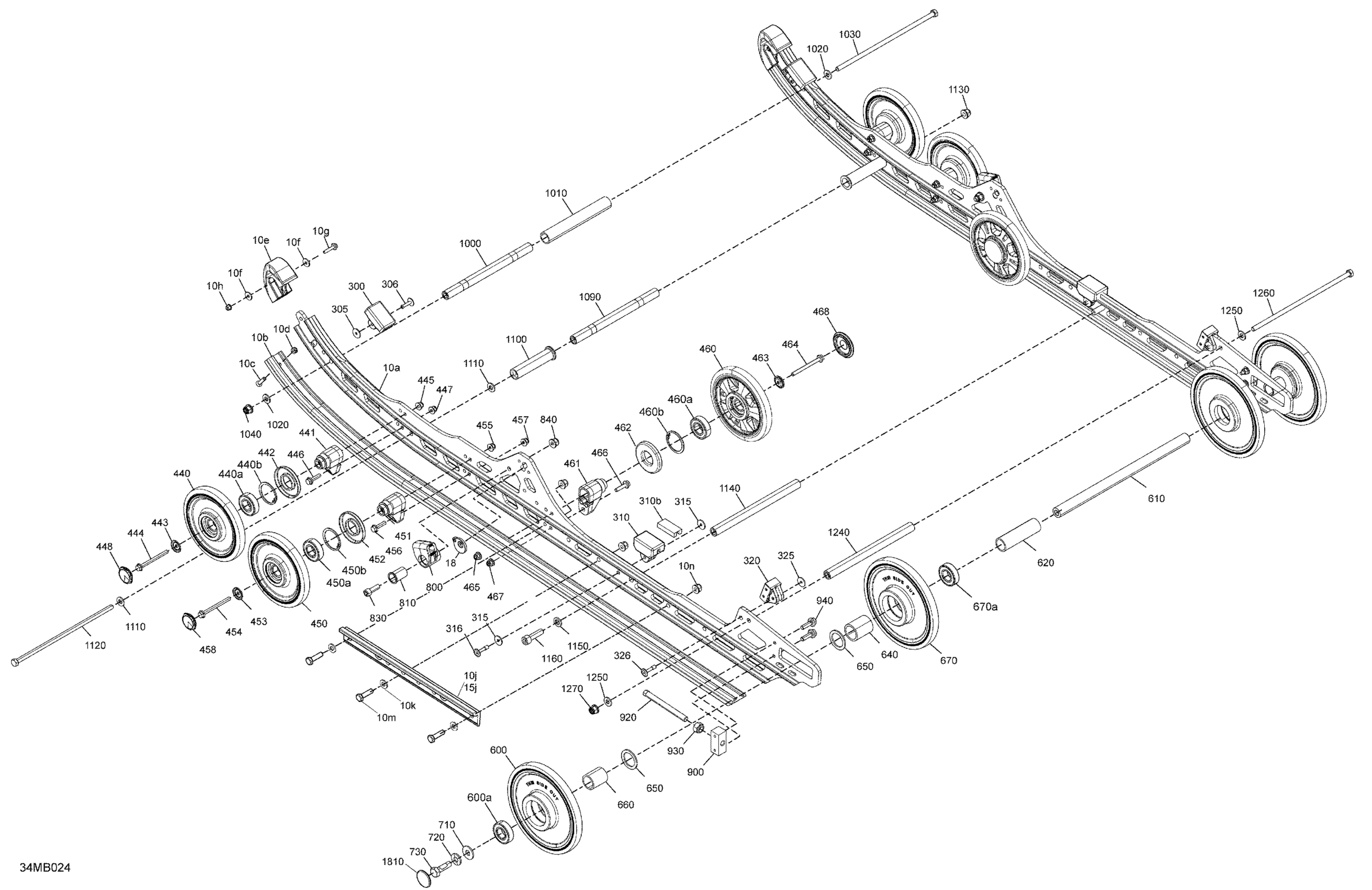

Ski-Doo 002 - RENEGADE 600R E-TEC - XRS Competition - Europe, 2022 05- Suspension - Rear - Lower Section Diagram

Deep Black, Rail Suspension 137

Black, Slider Shoe 137''

Phillips Screw M6 X 25

Elastic Stop Nut M6

Slide Protector

Washer

Hex. Flange Screw M5 X 25

Flange Elastic Nut M5

Deep Black, LH Rail Reinforcement

Washer

Hex. Cap Screw M8 X 30

Elastic Flange Nut M8

Deep Black, RH Rail Reinforcement

Cam Adjustment

Rubber Stopper

Washer

Pop Rivet 3/16

Rubber Stopper Ass'y | Includes 310 to 310b

Rubber Stopper Ass'y

Washer

Pop Rivet 3/16"

Rubber Stopper

Washer

Pop Rivet 3/16

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Labyrinth Seal

Wheel Cup M6

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Black, Wheel Cap

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Labyrinth Seal

Wheel Cup M6

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Black, Wheel Cap

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Labyrinth Seal

Wheel Cup M6

Hex. Flange Screw M6 X 70

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6

Black, Wheel Cap

Wheel 180 | Includes 600 to 600a

Ball Bearing

Rear Axle

Center Spacer

Washer

Outer Spacer

Wheel 180 | Includes 600 to 600a

Ball Bearing

Washer

Conical Spring Washer 10 mm

Hex Screw With Nilon Patch, M10 X 35

Spring Support Kit

Bushing

Socket Screw M8 X 25

Elastic Flange Nut M8

Tensioner

Hex Screw M10 x 100

Elastic Locking Nut M10

Hex. Flange Screw S.Grip M6 X 20

Axle Stopper Strap

Spacer

Washer
