Partiron

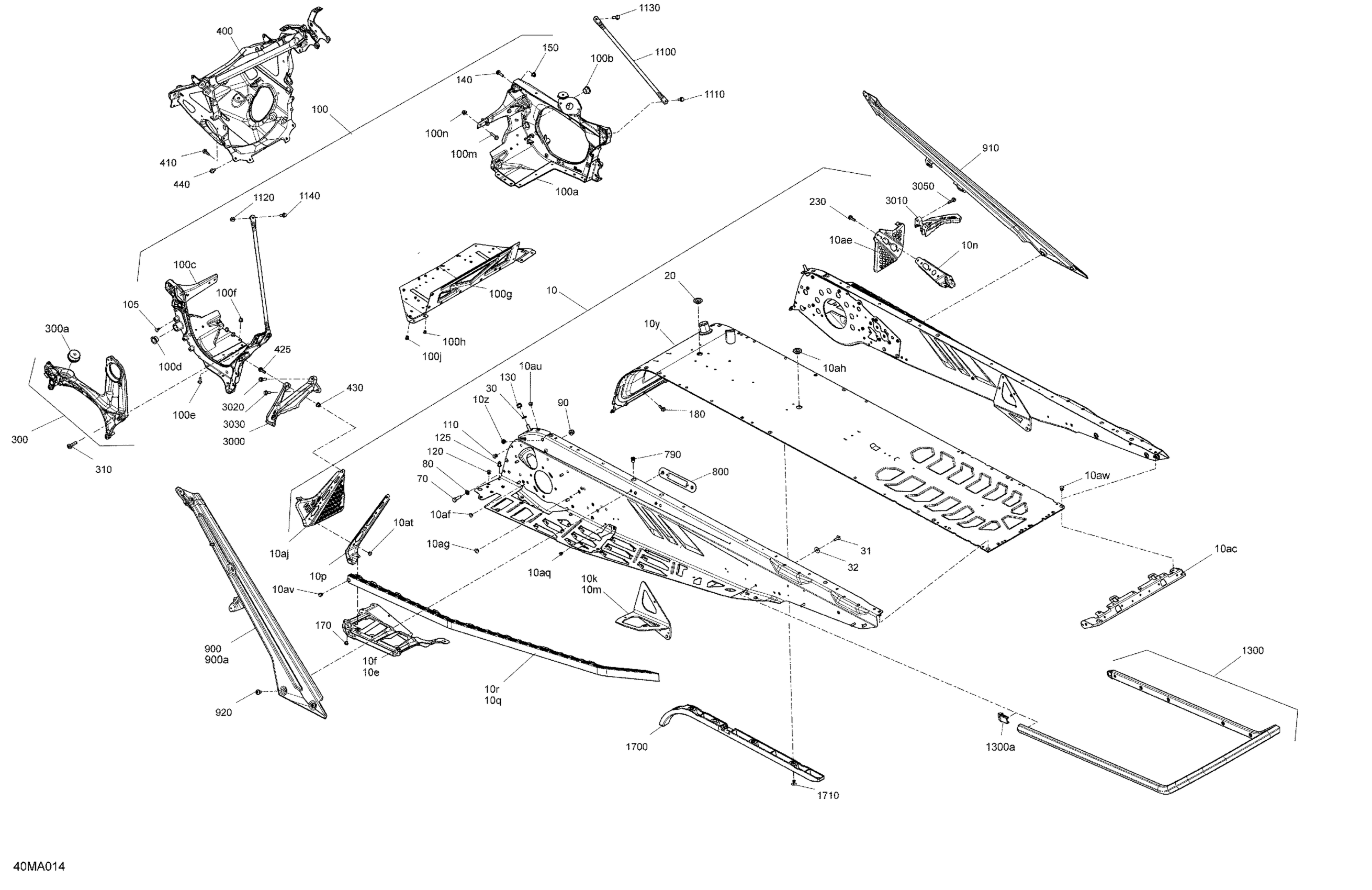

Ski-Doo RENEGADE 600R E-TEC - Adrenaline_X - 2021 Frame - System - Adrenaline Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 137

415130829

$3,050.72

10e

Deep Black, RH Footrest Reinforcement

518330738

$79.82

10f

Deep Black, LH Footrest Reinforcement

518331523

$79.82

10k

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

10m

LH Suspension Bracket

518329621

$41.76

10n

Stirrup Reinforcement

518331253

$17.88

10p

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

10q

RH Roller

518328451

$175.34

10r

LH Roller

518328452

$175.34

10y

Radiator Tunnel 137 Ass'y

518334488

$682.06

10z

Insert Half Hex Body M6 x 1.0

250100199

$2.91

10ac

Rear Cap

518328990

$20.12

10ae

RH Footrest

518328460

$37.28

10af

Black, Dart 8 mm

293730047

$2.07

10ag

Black, Dart 10 mm

293730060

$4.28

10ah

Black, Plug

293730052

$6.18

10aj

LH Footrest

518333007

$37.28

10aq

Rivet Avibulb 3/16

293150203

$0.28

10at

Hemlock Rivet, 6.5 mm

293150096

$3.07

10au

Hemlock Rivet, 6.5 mm

293150119

$3.88

10av

Hemlock Rivet, 6.4 mm

293150174

$6.24

10aw

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

30

Flat Washer 8 mm

234081410

$0.79

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

32

Flat Washer

224061201

$1.27

70

Hex Screw M8 X 30

250000942

$1.06

80

Flat Washer 8 mm

234081410

$0.79

90

Hex. Flange Elastic Nut M8

233281414

$1.31

100

Engine Chassis Module Ass'y | Includes 100 to 100j

518332685

$569.99

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$202.21

100b

Leg Bushing

505072690

$5.75

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

100d

Leg Bushing

505072690

$5.75

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

100f

Collar Huck Magna-Grip 6.4

293150149

$0.36

100g

Bottom Plate

518332716

$33.55

100h

Rivet Avibulb 3/16

293150203

$0.28

100j

Insert M5 X 0.8

293450268

$1.90

100m

Hex. Flange Screw M6 X 25

250000945

$4.15

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

105

Dart

293730079

$1.87

110

Ornit Rivet 6,5 X 14.5

293150266

$1.88

120

Hemlock Rivet, 6.4 mm

293150174

$6.24

125

Hemlock Rivet 6.5 mm

293150120

$7.01

130

Hex. Flange Elastic Nut M8

233281414

$1.31

140

Hex. Flange Screw M6 X 20

207662046

$2.00

150

Elastic Flange Nut M6 X 1.0

233261416

$2.00

170

Insert M5 - 0.8

293450267

$4.09

180

Hex. Flange Screw M6 X 16

207661646

$1.15

230

Hex. Flange Screw M6 X 20

207562056

$2.00

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$262.66

300a

Vibration Damper

512061516

$55.94

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

400

Chassis Suspension Module

518334459

$633.55

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

440

Ornit Rivet 6,5 X 14.5

293150266

$1.88

790

Insert

293450278

$3.97

800

Member Fixation Plate

518329480

$9.73

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

910

Black, RH Member Ass'y | Black

518330880

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

1100

Upper Colomn Support

518329974

$20.12

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.79

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1130

Hex. Flange Screw M6 X 25

207662556

$4.15

1140

Hex. Flange Screw M6 X 20

207662046

$2.00

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$119.37

1300a

Cap

520001612

$8.36

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
