Description

Price

10

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

10

Multifunction Gauge Full Size Mono

515178227

$559.99

60

Support Gauge

515178278

$7.59

60

Housing

515178450

$6.39

70

Screw M4 X 16

250000725

$3.49

70

Screw M4 X 16

250000725

$3.49

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2400

LH Switch Housing

515178196

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3000

Chassis Wiring Harness

515178605

$309.99

3001

Diagnostic Cap

515178435

$8.79

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3210

4 Circuits Female Housing

515178177

$12.18

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 16

207661644

$0.74

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4100

Starter Relay

278003012

$42.49

4200

Positive Wire

515178553

$29.99

4205

Protector Cap

710000495

$10.99

4210

Elastic Stop Nut M6

232561414

$0.55

4240

Hex. Flange Screw M5 X 10

207551044

$4.12

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320a

Battery Bolt Kit

250000282

$7.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

4820

Elastic Stop Nut M6

232561414

$0.55

5000

Ignition Module | Includes 5000 to 5000a

512061191

$589.99

5000a

Capacitor

515177272

$90.99

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178159

$4.44

5025

Hex. Flange Screw M5 X 16

207651646

$2.11

5030

Flange Elastic Nut M5

233251434

$2.00

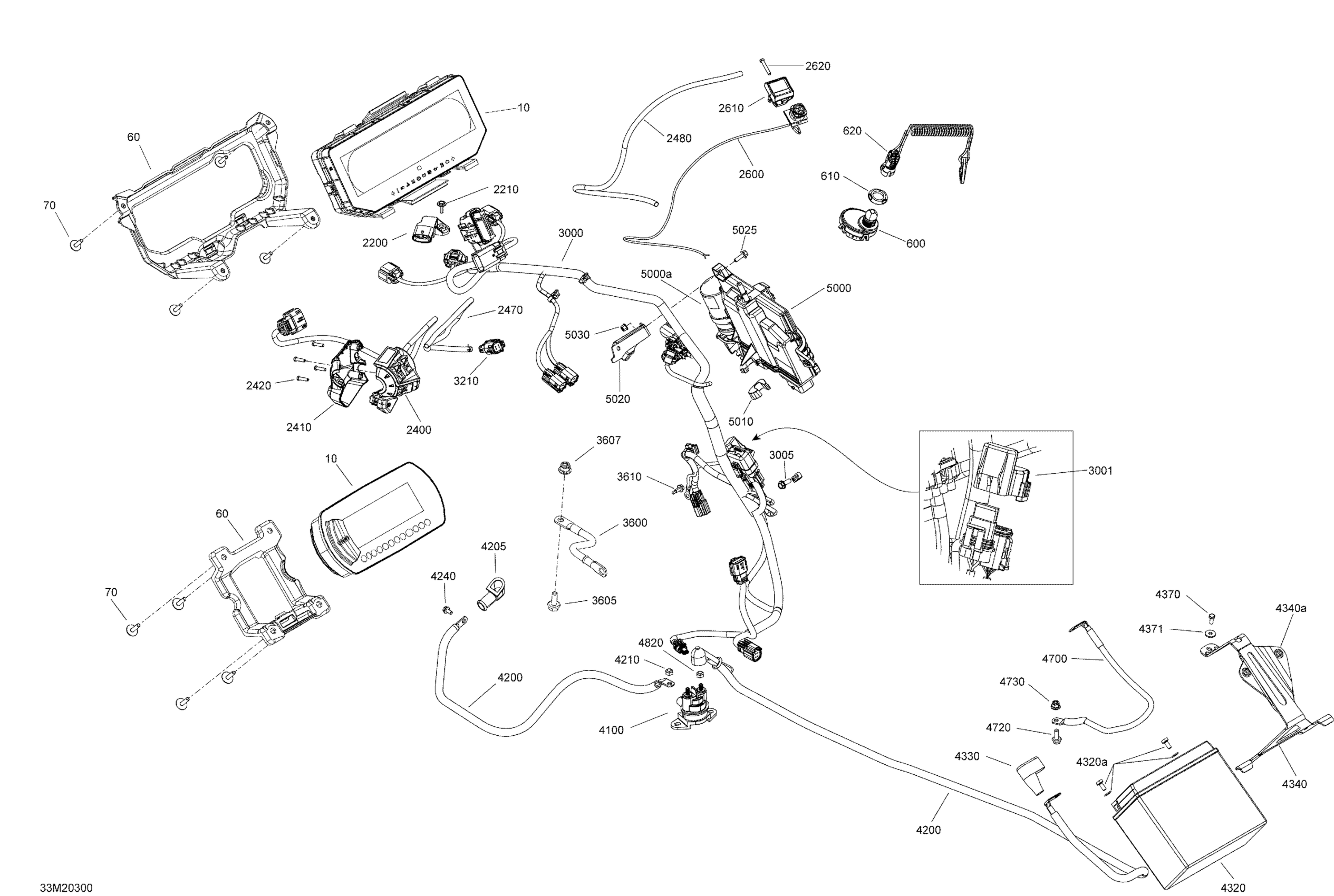

Ski-Doo 002 - RENEGADE 600R E-TEC - Adrenaline_X - North America, 2020 10- Electric - System Diagram

2 Button Multifunction Gauge Full Size Color

Multifunction Gauge Full Size Mono

Support Gauge

Housing

Screw M4 X 16

Screw M4 X 16

Terminal Dess One-Wire | Except Model Europe

Safety Nut (DESS Switch)

Grey, RF Key Ass'y | Includes 620 to 620d

Pressure And Temperature Sensor

Screw M4 X 16

LH Switch Housing

Housing Plate

Torx Screw

Braided Sleeve

Braided Sleeve

Emergency Stop Switch

Emergency Stop Switch Support

Torx Screw #8-18

Chassis Wiring Harness

Diagnostic Cap

Hex. Flange Screw M6 X 16

4 Circuits Female Housing

Ground Wire

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M5 X 16

Starter Relay

Positive Wire

Protector Cap

Elastic Stop Nut M6

Hex. Flange Screw M5 X 10

Lead Battery 18 Amperes | Includes 4327 to 4327a

Battery Bolt Kit

Protector Cap | STD

Battery Strip | Includes 4340 to 4340a

Insert

Hex. Screw M5 X 12

Washer | DS 650 X

Ground Wire

Hex. Flange Screw M6 X 16

Elastic Flange Nut M6 X 1.0

Elastic Stop Nut M6

Ignition Module | Includes 5000 to 5000a

Capacitor

Rubber Stopper

Module Support

Hex. Flange Screw M5 X 16

Flange Elastic Nut M5
