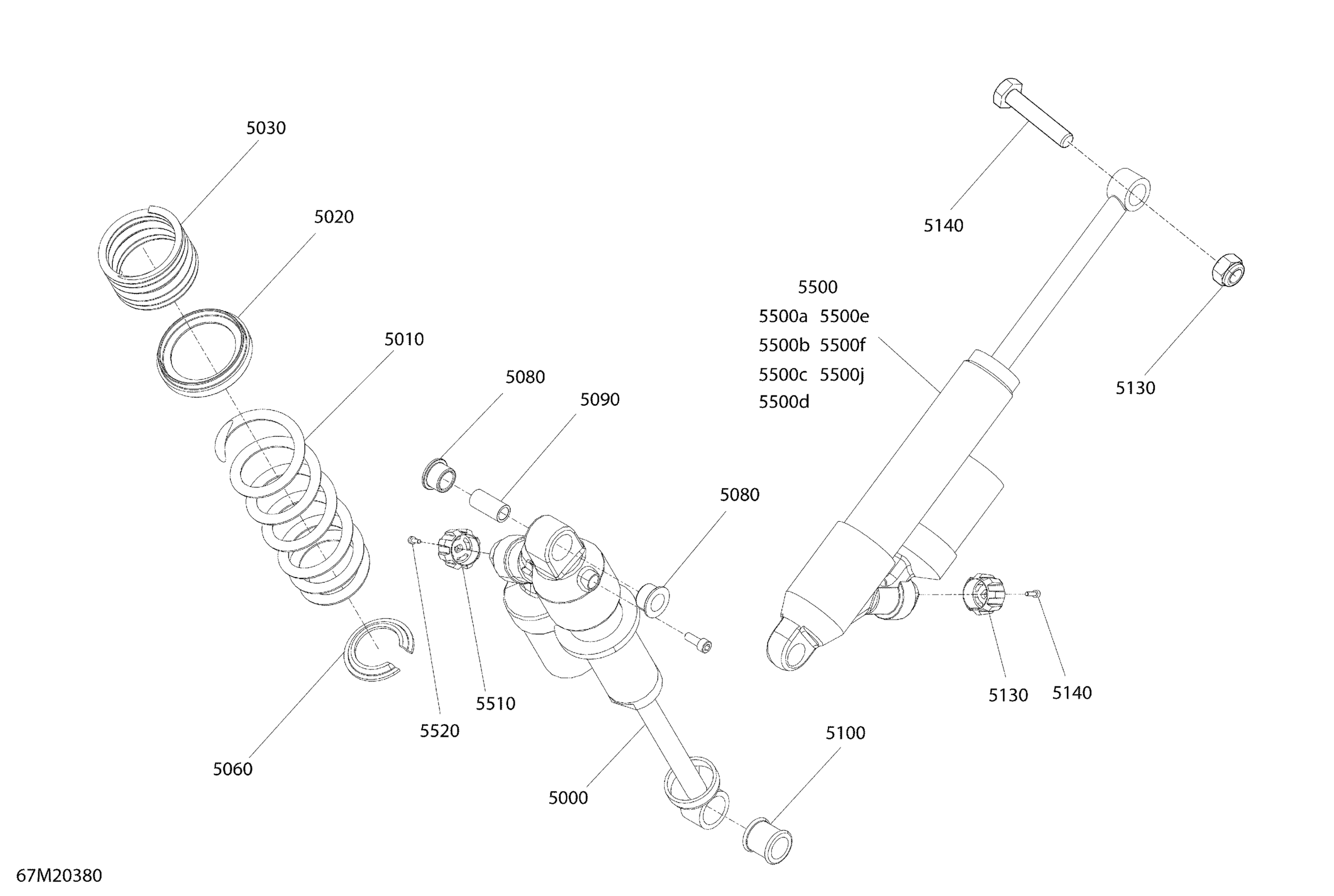

Ski-Doo 002 - RENEGADE 600R E-TEC - Adrenaline_X - North America, 2020 08- Suspension, Rear - Shocks - X Diagram

Description

Price

5000

Central Shock

503193536

$434.49

5010

Black, Spring (189mm) Long

503193067

$90.99

5020

Spring Spacer

503191281

$8.89

5030

Black, Spring (51mm) Short

503193837

$67.99

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5130

Elastic Locking Nut M10

233601466

$2.11

5140

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5500

Rear Shock | Without Quick Adjust System

503194670

$877.49

5500

Rear Shock | With Quick Adjust System

503194669

$877.49

5500a

O-Ring

415093807

$35.99

5500b

Piston Ring | Not Shown

415093806

$16.86

5500c

Air Valve

505070398

$20.99

5500d

Screw | Not Shown

505070399

$4.12

5500e

O-Ring

505070400

$4.54

5500f

O-Ring

415093804

$4.54

5500j

Base Valve

415130165

$78.99

5510

Shock Adjuster Knob

503193033

$10.99

5520

Allen Screw M3 X 0.5 X 10

250000644

$2.11
