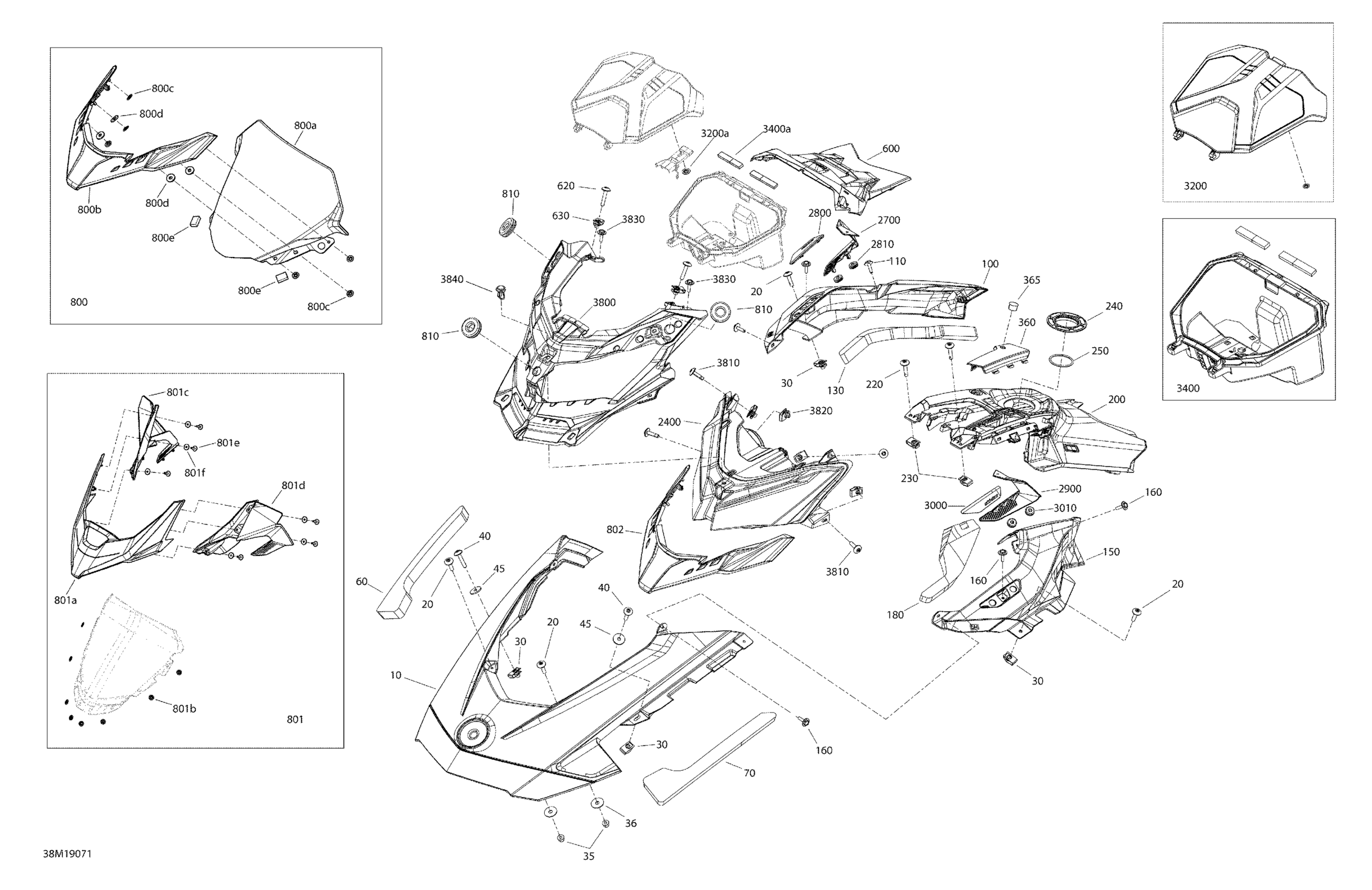

Ski-Doo RENEGADE 600R E-TEC - Adrenaline_X, 2019 Hood - Hood Section Diagram

Deep Black, Front Hood

517307291

$192.51

Bright White, Front Hood | Model Intense Blue/White

517306237

$182.81

Orange Crush, Front Hood | Orange

517306629

$261.91

Can-Am Red, Front Hood | Model Black/Lava Red

517306635

$192.51

Torx Screw M5 X 20

250000528

$2.00

Panel Nut M5 X 0.8

250000958

$4.00

Hex. Flange Nut M5

233151414

$0.52

Flat Washer

250200040

$1.76

Torx Screw M5 X 26

250000587

$4.15

Washer

250200166

$2.00

RH Front Hood Foam

517305763

$11.19

LH Front Hood Foam

517305764

$11.19

Orange Crush, RH Hood | Orange

517306630

$186.54

Rh Hood | Model Black/Lava Red

517306636

$186.54

Black, RH Hood | Deep Black

517306722

$188.03

Bright White, RH Hood | Model Intense Blue/White

517306737

$186.54

Screw M4 X 16

250000725

$3.30

RH Hood Foam

517306001

$11.19

Orange Crush, LH Hood | Orange

517306631

$186.54

Can-Am Red, LH Hood | Model Black/Lava Red

517306637

$186.54

Black, LH Hood | Deep Black

517306721

$202.96

Bright White, LH Hood

517306727

$186.54

Screw M4 X 16

250000725

$3.30

LH Hood Foam

517306002

$11.19

Rear Console

517307685

$172.36

Rear Console

517306830

$156.69

Torx Screw M5 X 26

250000587

$4.15

Panel Nut M5 X 0.8

250000958

$4.00

Console Nut

517306602

$10.88

O-Ring

706002839

$0.96

LH Front Console

517306580

$29.07

Cap

572051500

$5.22

Indicator Support, Deep Black | Packages Blizzard & X

517305781

$9.34

Indicator Support | Package TNT

517306108

$9.34

Indicator Support | Except Package STD

517306117

$35.04

Torx Screw M5 X 26

250000587

$4.15

Panel Nut M5 X 0.8

250000958

$4.00

Black, Low Windshield Kit | Includes 800 to 800f

860201448

$148.48

Windshield 360

517306423

$158.93

Deep Black, Windshield Support

517305749

$30.57

Push Nut

732610072

$1.97

Rubber Washer 5 mm

250200024

$2.03

Gasket, Neoprene 2000Mm Long

219704476

$14.51

Medium Windshield Kit | Includes 800 to 800h

860201258

$197.73

Deep Black, Windshield Support

517306183

$42.99

Push Nut

732610072

$1.97

Deflector RH, Black 63% Light Transm.

517306063

$32.81

Deflector LH, Black 63% Light Transm.

517306064

$32.81

Screw M4 X 16

250000889

$2.82

Rubber Washer 4 MM

517306524

$2.18

Deep Black, Wind Deflector

517305875

$44.75

Wind Deflector | Package XRS - Orange

517306764

$44.75

Grommet

517303756

$3.61

Headlamp | Includes 2400 to 2400a

517305752

$412.66

Bulb

415130081

$38.78

RH Deflector Black 63% Light Transm.

517305776

$32.81

RH Hood Plate

517306049

$11.19

Grommet

517302841

$2.55

Deflector LH, Black 63% Light Transm.

517305777

$32.81

LH Hood Plate

517306050

$11.19

Grommet

517302841

$2.55

Cover Ass'y | Includes 3200 to 3200c

517307562

$17.88

Push Nut

732610072

$1.97

Trunk Ass'y | Includes 3400 to 3400b

517306058

$17.88

Seal Joint

517305157

$2.21

Deep Black, Headlamp Fairing

517305746

$58.18

Headlamp Fairing

517306634

$52.96

Torx Screw M5 X 20

250000528

$2.00

Panel Nut M5 X 0.8

250000958

$4.00

Screw M4 X 16

250000725

$3.30

Tuflok Plastic Rivet

293150230

$1.39
