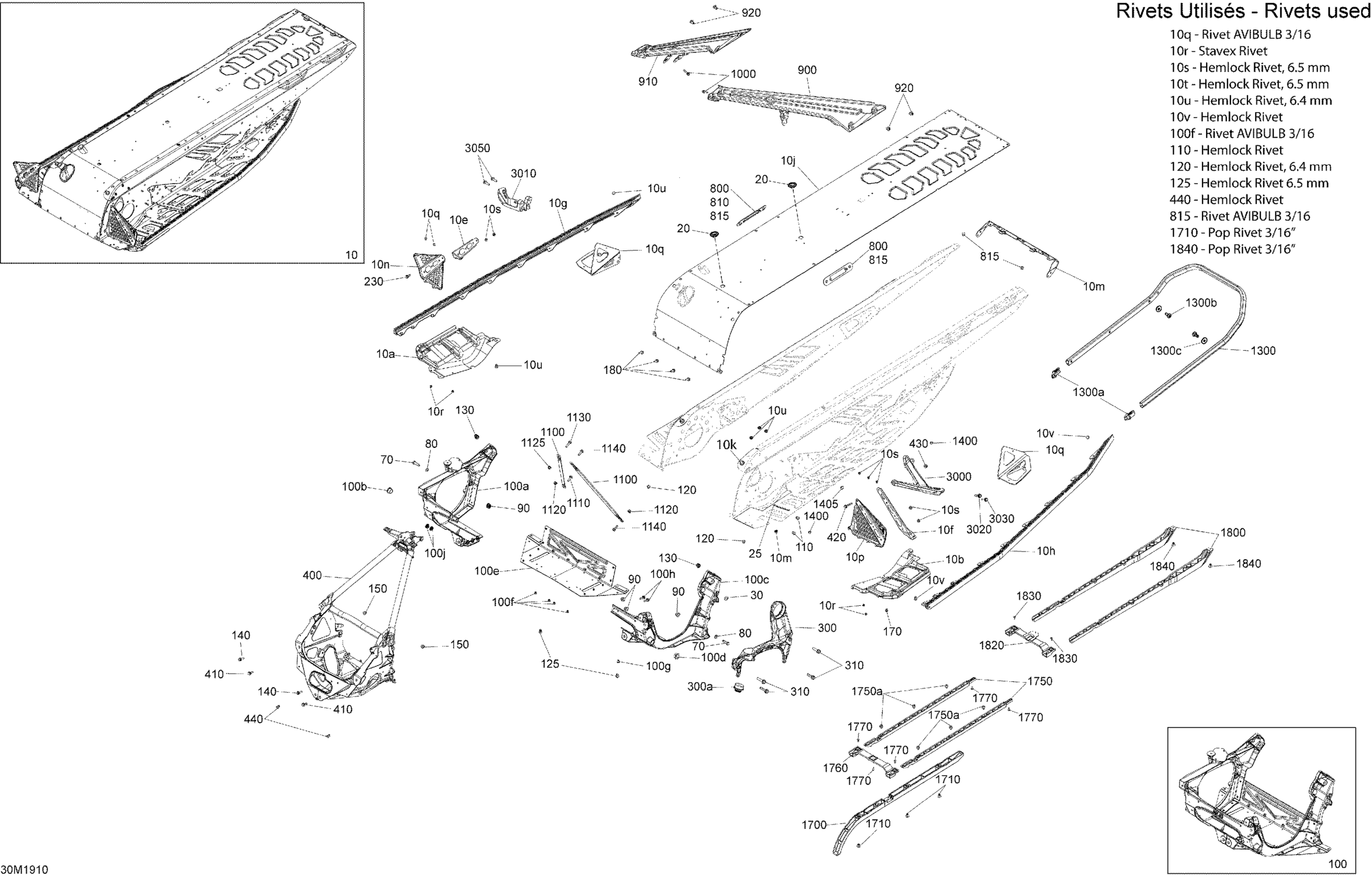

Ski-Doo 002 - RENEGADE 600R E-TEC - Adrenaline_X, 2019 09- Frame Diagram

Deep Black, Chassis Tunnel Module 137

415130829

$3.00

SILVER MODULE CHASSIS TUNNEL 137 INCH - Call your local BRP dealership | Package X - Hyper Silver

415130239

Unavailable

Deep Black, Chassis Tunnel Module 137" | Includes 10 to 10aw

415130558

$3.00

SILVER MODULE CHASSIS TUNNEL 137 INCH - Call your local BRP dealership | Package XRS - Hyper Silver

415130241

Unavailable

Deep Black, RH Footrest Reinforcement

518330738

$88.99

Deep Black, LH Footrest Reinforcement

518331523

$88.99

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

LH Suspension Bracket

518329621

$45.99

RH Footrest Reinforcement

518330072

$19.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328451

$194.99

RH Roller

518329023

$194.99

LH Roller

518328452

$194.99

LH Roller

518329024

$194.99

Radiator Tunnel 137 Ass'y

518334488

$720.49

Clinch Stud M6 X 20

250300027

$2.09

Rear Cap

518328990

$22.49

RH Footrest

518328460

$44.99

LH Footrest

518333007

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Stavex Rivet

293150144

$0.82

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Washer

506151252

$3.17

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100j

518330636

$619.99

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

Leg Cushion

505073317

$8.66

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Cushion

505073317

$8.66

Bottom Plate

518331661

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Hemlock Rivet 6.5 mm

293150120

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 35

207663544

$0.90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Member Fixation Plate

518329480

$12.99

LH Member Fixation Plate

518330299

$18.99

RH Under Chassis Reinforcement

518331745

$19.99

Rivet Avibulb 3/16

293150203

$2.09

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

CROSS MEMBER_DIAGONAL REAR L B-282 ASSY - Call your local BRP dealership | Silver Item This part replaces 518330877.

518331048

$104.99

Black, RH Member Ass'y | Black

518330880

$119.99

Hyper Silver, RH Rear Diagonal Cross Member Ass'y | Silver Item This part replaces 518330881.

518331049

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Stud M5 X 20

250300629

$2.09

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 20

207662044

$2.00

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

Cap

520001612

$10.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Rear Protector

518329980

$10.13

Rubber Bumper

293830005

$8.09

Front Protective Structure

518333935

$3.69

Torx Truss Screw K40 X 12

250000577

$2.11

Rear Protector

518329979

$9.23

Support

520001545

$2.00

Torx Truss Screw K40 X 12

250000577

$2.11

Pop Rivet 3/16”

293150108

$1.19

Black Toe-hold

518330358

$24.99

Toe Hold

518329134

$18.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex. Flange Forming Screw M6 X 25

210262550

$1.90
