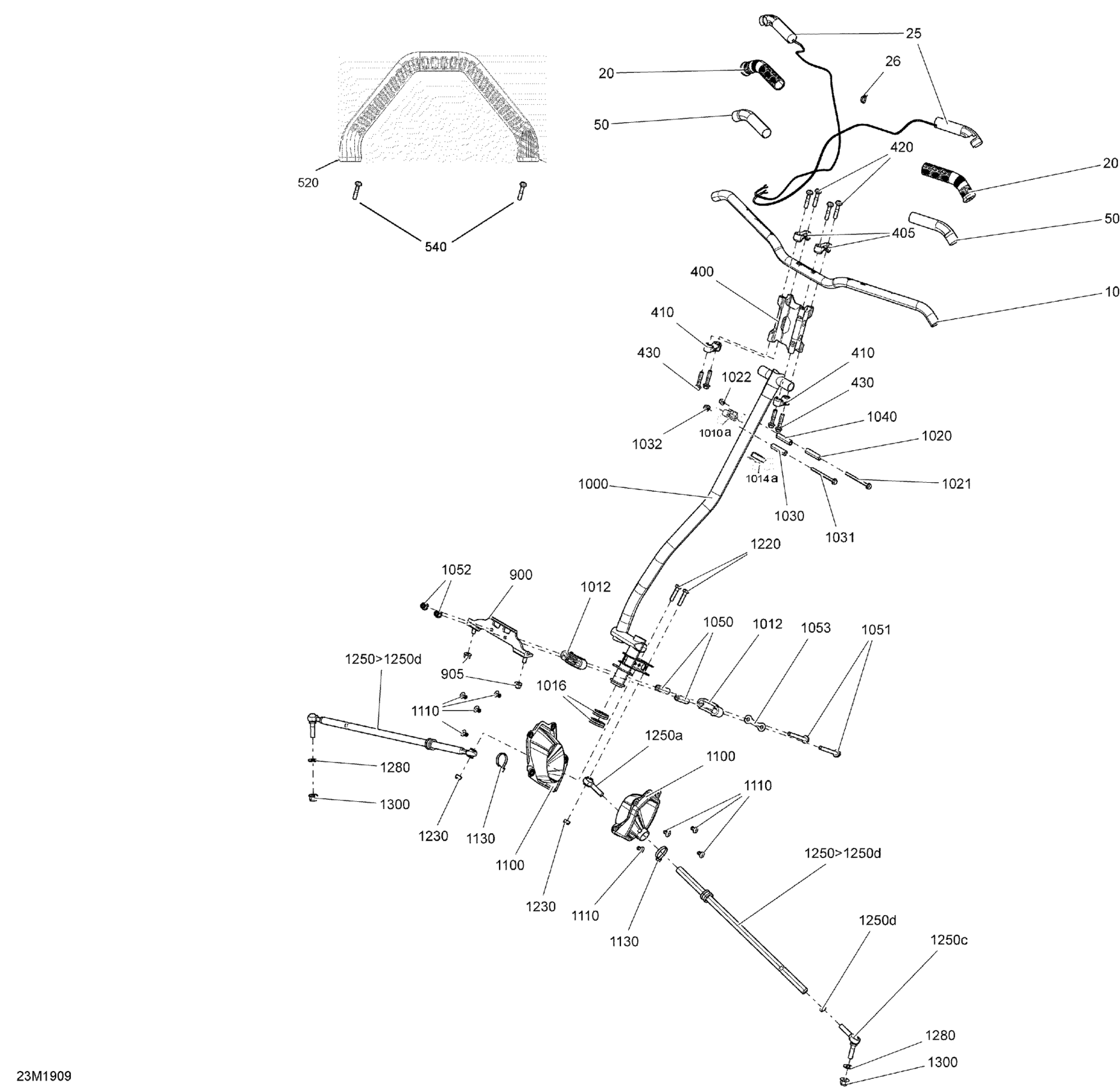

Ski-Doo 002 - RENEGADE 600R E-TEC - Adrenaline_X, 2019 07- Steering - Package Adrenaline Diagram

Aluminum Handle Bar

506152825

$80.49

Grip 148mm

506152560

$16.88

Heated Film

506152856

$48.99

Thermal Insulation

506153176

$6.09

Riser Kit 120

860201427

$60.49

Steering Support

506152894

$14.49

Steering Support

506152894

$14.49

Button Head Torx Screw M8 X 38

250000904

$2.11

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

Support Plate | Includes 900 to 900a

506152787

$37.99

Clinch Stud

250300038

$4.29

Hex. Elastic Flange Nut M8

233281416

$1.48

Main Tube

506153024

$189.99

Upper Half Housing

506152219

$1.79

Lower Half Housing

506153048

$6.92

Upper Vibration Ring

506152292

$0.74

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 75

207667554

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 75

207667554

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506152297

$12.99

Housing Bushing

506152937

$12.99

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Elastic Flange Nut M8

233281416

$1.48

Stopper Plate

506152938

$12.99

Cap

506153294

$26.99

Pop Rivet 3/16"

293150008

$0.50

Tie-Rap 180 mm

414115200

$0.11

Hex. Screw M8 X 35

207083544

$1.15

Hex. Elastic Stop Nut M8

232581414

$0.56

Rod Ass'y | Includes 1250 to 1250f

506152794

$72.99

LH Threaded Ball Joint

506152344

$41.49

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152684

$44.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152582

$4.55

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Handle

506152821

$3.17

Socket Head Screw M4X 10

205041060

$2.11
