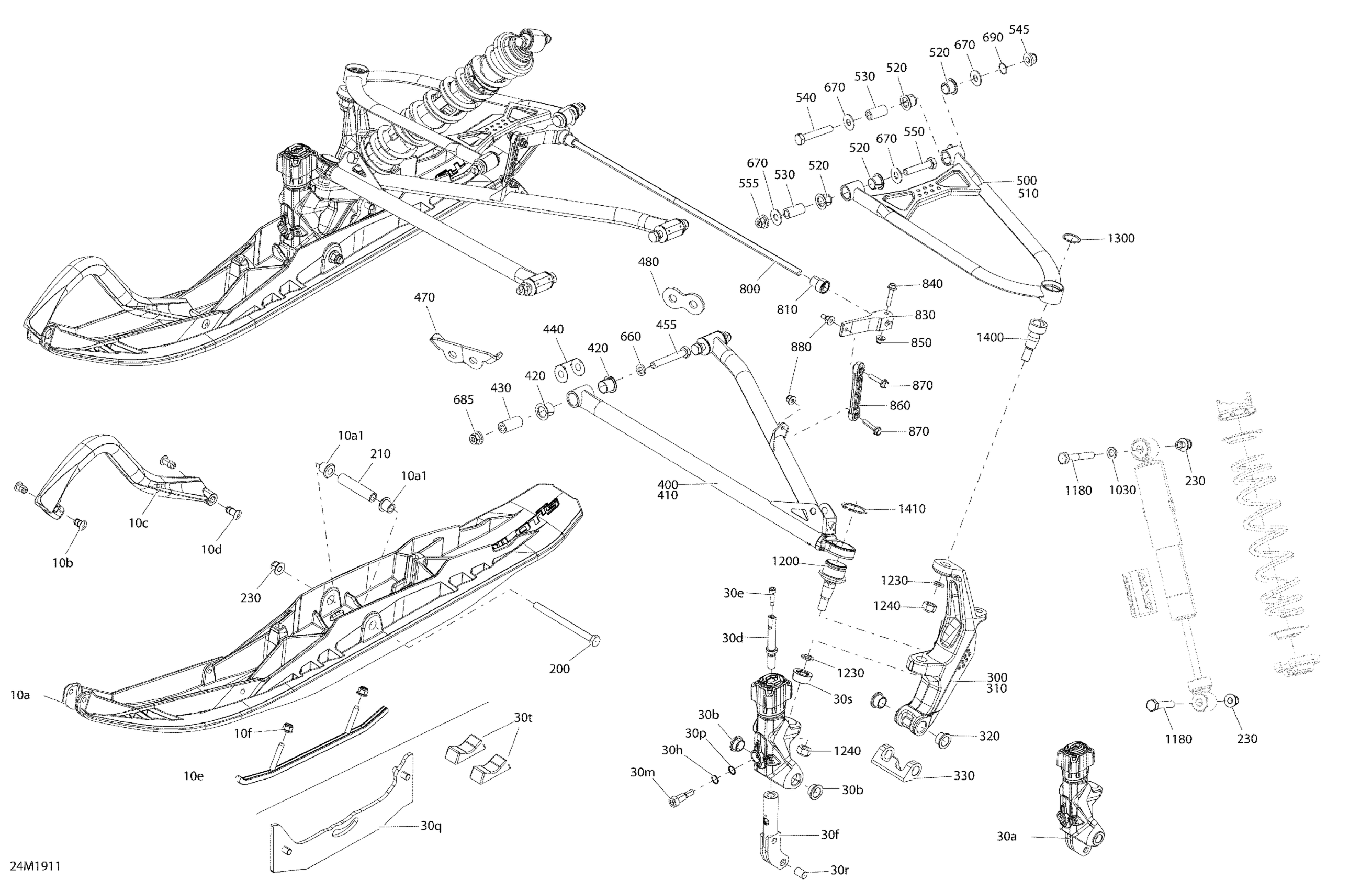

Ski-Doo RENEGADE 600R E-TEC - Adrenaline_X, 2019 Front Suspension And Ski Diagram

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

Orange Crush, RH Pilot 5.7 Ski | Skis Pilot 5,7 Round Runner - Orange

505074072

$161.16

Orange Crush, LH Pilot 5.7 Ski | Skis Pilot 5,7 Round Runner - Orange

505074071

$161.16

Black, Ski

505073227

$170.12

Orange DS 2 Ski | Skis Pilot Deep Snow II Round Runner - Orange

505073511

$170.12

Deep Black, RH Ski Pilot TS | Included 20a to 20a.1

505074830

$165.64

Deep Black, LH Ski Pilot TS | Included 10a to 10a.1

505074829

$161.16

Orange, RH Pilot TS Ski | Skis Touring Sport - Orange

505074068

$161.16

Orange, LH Pilot TS Ski | Skis Touring Sport - Orange

505074067

$161.16

Ski Bushing

505071781

$14.90

Retainer 17mm long

505071812

$4.30

Black, Handle

505070963

$34.30

Red, Handle | Model Red-Black

505073365

$39.52

Black, Handle

505070963

$34.30

Black, Handle

505072976

$34.30

Black, Handle

505070963

$34.30

Red, Handle | Model Red-Black

505073365

$39.52

Retainer 23mm Long

505072133

$4.88

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

Hex. Flange Elastic Nut M8

233281414

$1.31

LH Runner Mechanism | Included 30 to 30m

505074118

$341.76

RH Runner Mechanism | Included 30 to 30m

505074119

$338.78

Bushing

505073773

$23.10

Knob Adjuster Repair Kit

415130043

$51.46

Shaft

505073771

$39.52

Socket Head Screw M6 X 25

250000925

$1.96

Tip

505073761

$70.12

Circlip

293370109

$1.81

Spring

505073785

$8.42

Screw

505073767

$3.15

O-Ring

293300013

$6.54

Carbide Runner Kit, Ajustable TS Ski

860201178

$242.51

Pin

505073782

$8.66

Black, Rubber Grommet

505073772

$8.70

Ski Stopper

505073788

$12.24

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

Ski Axle

505073691

$12.21

Elastic Flange Nut M8

233281466

$0.96

Orange Crush, LH Ski Leg | Orange Item

505074472

$211.91

Can-Am Red, LH Ski Leg

505074476

$211.91

Deep Black, LH Ski Leg

505074515

$245.49

Orange Crush, RH Ski Leg | Orange Item

505074473

$211.91

Can-Am Red, RH Ski Leg

505074477

$211.91

Deep Black, RH Ski Leg

505074516

$211.91

Leg Bushing

505072690

$5.75

Leg Stopper

505073779

$12.27

Arm-Lower Right This part replaces 505073720.

505074493

$184.30

RH Lower Arm

505074495

$184.30

LH Lower Arm This part replaces 505073714.

505074492

$184.30

LH Lower Arm

505074494

$184.30

Bushing

505072208

$3.04

Sleeve

505072209

$13.96

Wear Plate

505072634

$4.31

O-Ring

505072448

$2.18

Screw Hex. M10 X 70

250001024

$2.00

Wear Plate

505073723

$5.67

Plate

505073844

$2.07

LH Upper Arm 42"

505073724

$138.03

RH Upper Arm 42"

505073728

$138.03

Bushing

505072250

$3.04

Sleeve

505072143

$8.36

Screw Hex. M10 X 60

250001023

$2.00

Hex. Flange Elastic Nut M10

250100165

$0.81

Screw Hex. M10 X 60

250001023

$2.00

Hex. Flange Elastic Nut M10

250100165

$0.81

Washer

503189564

$0.70

Washer

505072392

$4.51

Hex. Flange Elastic Nut M10

250100165

$0.81

O-Ring

505072448

$2.18

Stabiliser

505074719

$67.13

Bushing

505072064

$2.15

Stabilisator Lever

505073731

$14.90

Washer

505072392

$4.51

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

Hex. Flange Elastic Nut M6

233261466

$1.91

Sway Bar Double Joint Link

505072204

$18.63

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

Hex. Flange Elastic Nut M6

233261466

$1.91

Spacer

505073892

$2.10

Hex. Flange Screw M8 X 58

250000824

$2.00

Ball Joint

505074009

$50.72

Washer

503192491

$4.25

Hex Elastic Nut M12 X 1.25

232521464

$2.00

Circlip

293370070

$6.81

Upper Ball Joint

505072913

$67.88

Snap Ring

293370098

$3.01

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

Washer

503192496

$0.73

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

Ski Stopper

505072594

$17.13

Spacer

505072579

$7.36
