Description

Price

10a

Deep Black, Rail Suspension 137

503195475

$309.99

10a

Sunburst Yellow, Rail Suspension 137 | Model Sunburst Yellow

503195935

$309.99

10b

Black, Slider Shoe 137''

503196283

$29.49

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561434

$1.99

10e

Slide Protector

503192530

$19.99

10f

Washer

250200140

$1.01

10g

Hex. Flange Screw M5 X 25

207652544

$0.50

10h

Flange Elastic Nut M5

233251434

$2.00

18

Cam Adjustment

503195683

$18.49

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper Ass'y

503195523

$5.59

315

Washer

503191273

$1.35

316

Pop Rivet 3/16

293150224

$1.01

320

Rubber Stopper

503192750

$14.99

325

Washer

503191273

$1.35

326

Pop Rivet 3/16

293150224

$1.01

440

Deep Black, Wheel Idler 147 MM | Includes 130 to 130b

503195802

$48.49

440a

Ball Bearing | Package-STD

503190396

$14.30

440b

Retaining Ring

415129371

$12.01

441

Casted Support

503193894

$16.49

442

Labyrinth Seal

503190434

$6.09

443

Wheel Cup M6

503191820

$4.99

444

Hex. Flange Screw M6 X 70

250000944

$4.44

445

Hex. Flange Elastic Nut M6

233261466

$2.00

446

Hex. Flange Screw M6 X 25

250000945

$4.44

447

Hex. Flange Elastic Nut M6

233261466

$2.00

448

Wheel Cap

503195804

$2.39

450

Deep Black, Wheel Idler 147 MM | Includes 130 to 130b

503195802

$48.49

450a

Ball Bearing | Package-STD

503190396

$14.30

450b

Retaining Ring

415129371

$12.01

451

Casted Support

503193894

$16.49

452

Labyrinth Seal

503190434

$6.09

453

Wheel Cup M6

503191820

$4.99

454

Hex. Flange Screw M6 X 70

250000944

$4.44

455

Hex. Flange Elastic Nut M6

233261466

$2.00

456

Hex. Flange Screw M6 X 25

250000945

$4.44

457

Hex. Flange Elastic Nut M6

233261466

$2.00

458

Wheel Cap

503195804

$2.39

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

460a

Ball Bearing | Package-STD

503190396

$14.30

460b

Retaining Ring

415129371

$12.01

461

Casted Support

503193894

$16.49

462

Labyrinth Seal

503190434

$6.09

463

Wheel Cup M6

503191820

$4.99

464

Hex. Flange Screw M6 X 70

250000944

$4.44

465

Hex. Flange Elastic Nut M6

233261466

$2.00

466

Hex. Flange Screw M6 X 25

250000945

$4.44

467

Hex. Flange Elastic Nut M6

233261466

$2.00

468

Black, Wheel Cap

503192771

$2.39

600

Deep Black, Wheel Idler 180 MM | Includes 600 to 600b

503195803

$51.99

600a

Ball Bearing | Package-STD

503190396

$14.30

600b

Retaining Ring

415129371

$12.01

610

Rear Axle

503190429

$59.99

620

Spacer

503196317

$18.49

650

Washer

503190432

$14.22

660

Rear Wheel Spacer

503190428

$8.14

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

670a

Ball Bearing | Package-STD

503190396

$14.30

670b

Retaining Ring

415129371

$12.01

680

Labyrinth Seal

503190682

$6.19

690

Labyrinth Seal

503190434

$6.09

710

Washer

503191910

$2.32

720

Conical Spring Washer 10 mm

234201474

$1.69

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196210

$12.64

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503192583

$8.29

910

Spacer

503193250

$16.49

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Cap Screw M6 X 30

207063054

$6.39

950

Hex. Flange Elastic Nut M6

233261466

$2.00

1000

Axle Stopper Strap

503196476

$11.49

1010

Spacer

503196943

$10.99

1020

Washer

503192494

$3.17

1030

Bolt M8 X 248mm

503192440

$30.49

1040

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503195954

$9.74

1100

Spacer

503195825

$1.69

1110

Washer

503192494

$3.17

1120

Bolt M8 X 248mm

503192440

$30.49

1130

Elastic Flange Nut M8

233281466

$1.01

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1240

Axle

503196069

$11.49

1250

Washer

503192494

$3.17

1260

Bolt M8 X 248mm

503192440

$30.49

1270

Elastic Flange Nut M8

233281466

$1.01

1810

Black, Wheel Cap

503195878

$2.39

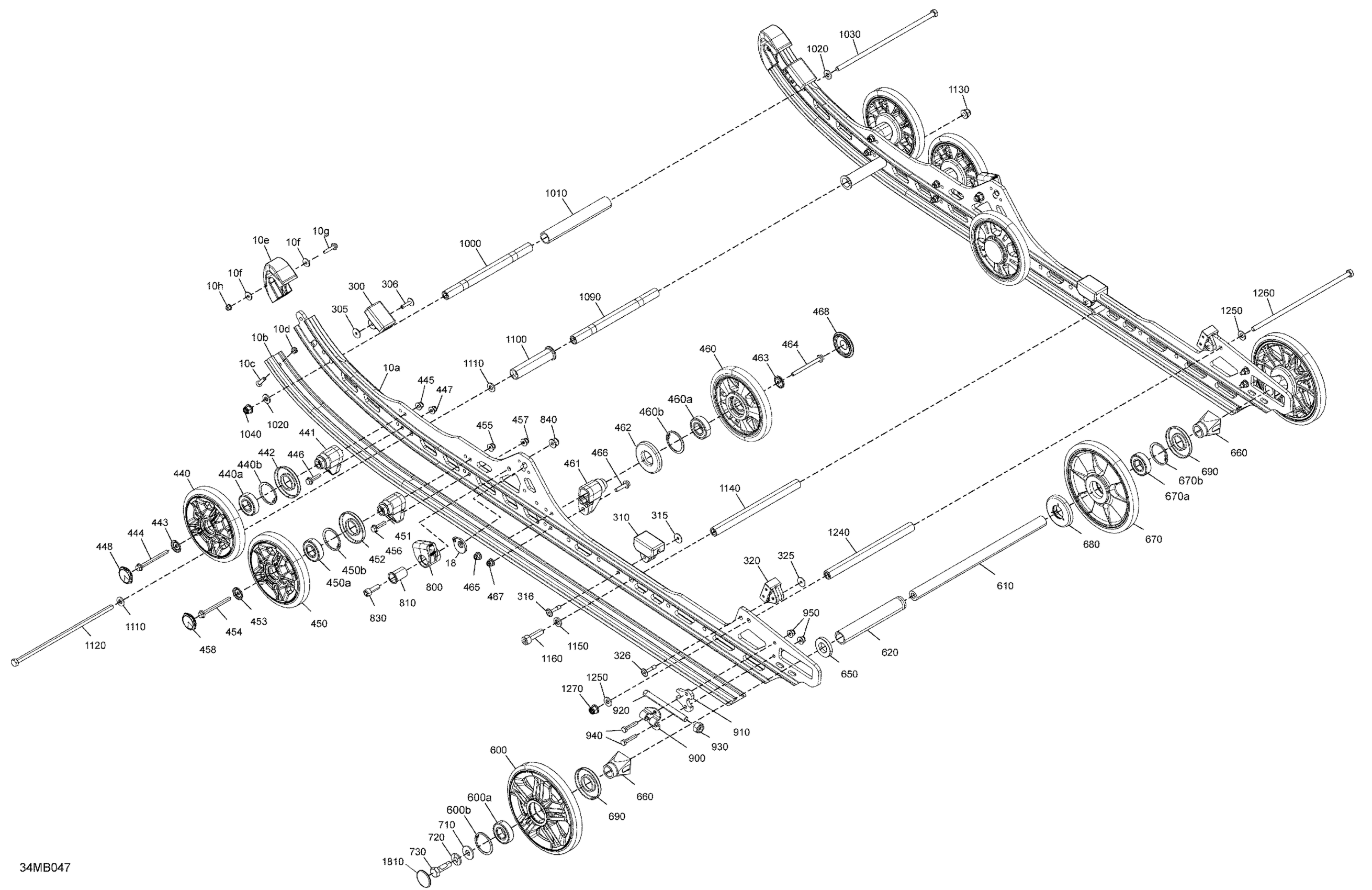

Ski-Doo 002 - RENEGADE 600R E-TEC - Adrenaline - North America, 2022 05- Suspension - Rear - Lower Section Diagram
