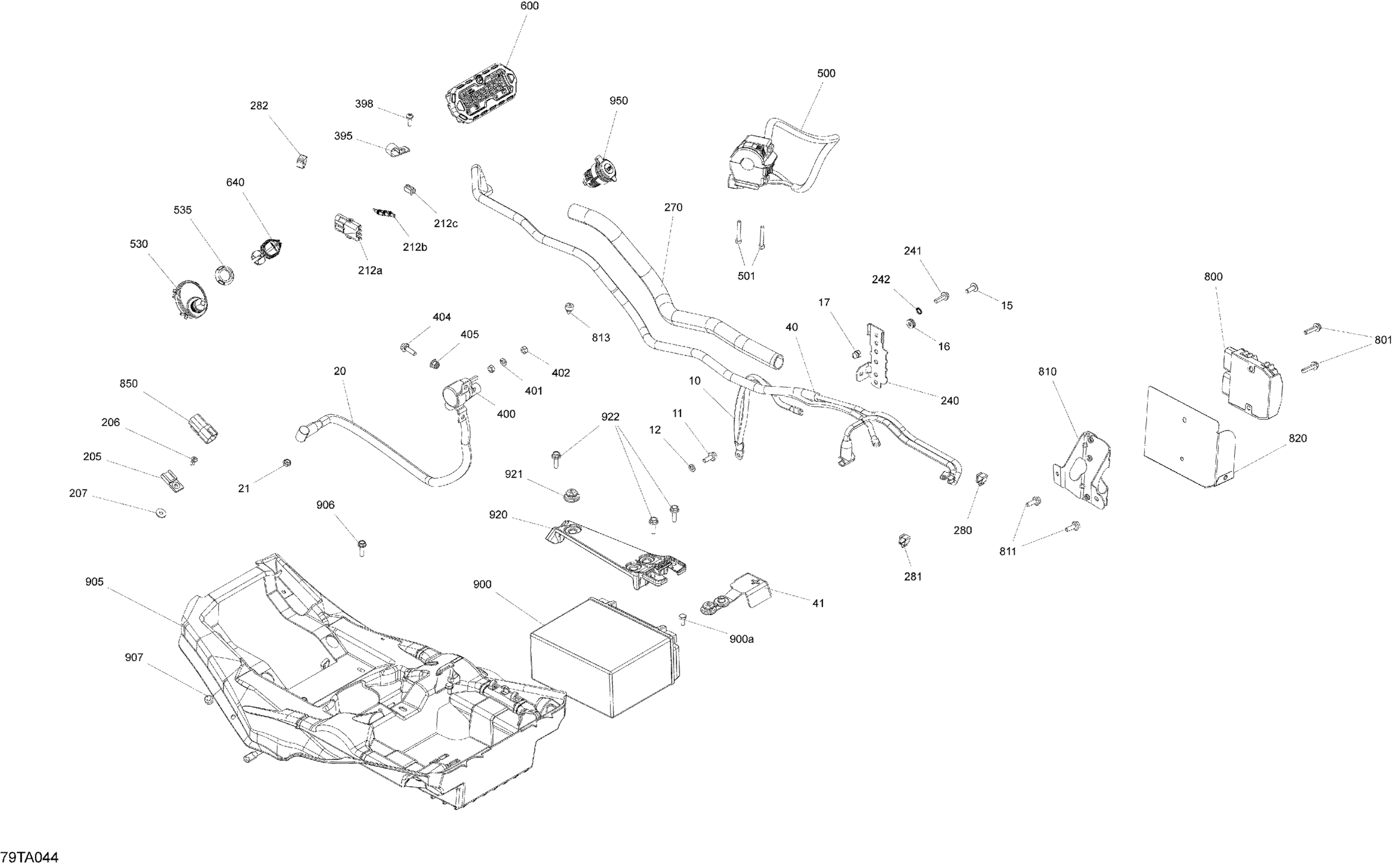

Can-Am Renegade 570 EFI - XMR - 2021 Electric - System Diagram

#

Description
Price

10

Ground Cable

710004382

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

15

Torx Head Screw M6 X 16

250000717

$2.00

16

Flat Washer

224061121

$0.51

17

Domed Nut M6

232361493

$2.03

20

Positive Cable

710004377

$24.60

21

Elastic Stop Nut M6

232561434

$1.78

40

Positive Cable

710004376

$43.25

41

Battery Cable Cap

710006729

$6.72

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

212b

Wire Seal

278000216

$2.93

212c

Clip

710000992

$3.88

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

270

Protective Tubing

710003260

$31.31

280

Clip

414227300

$1.40

281

Clip

414227300

$1.40

282

Clip

414227300

$1.40

395

Open Clamp

518321570

$5.85

398

Torx Screw K50 X 16

250000720

$1.60

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561434

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$74.60

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

535

Safety Nut (DESS Switch)

278002963

$3.12

600

Multifunction Compact Gauge

710007407

$335.04

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

705

Torx Screw K50 X 16

250000720

$1.60

800

Voltage Regulator

710005842

$183.55

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

810

Rectifier Support

710002587

$13.09

811

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

813

Rubber Bumper

293830005

$6.12

820

Deflector

710006746

$47.73

850

Housing

710003006

$8.31

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

910

Push Nut

732610072

$1.97

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79
