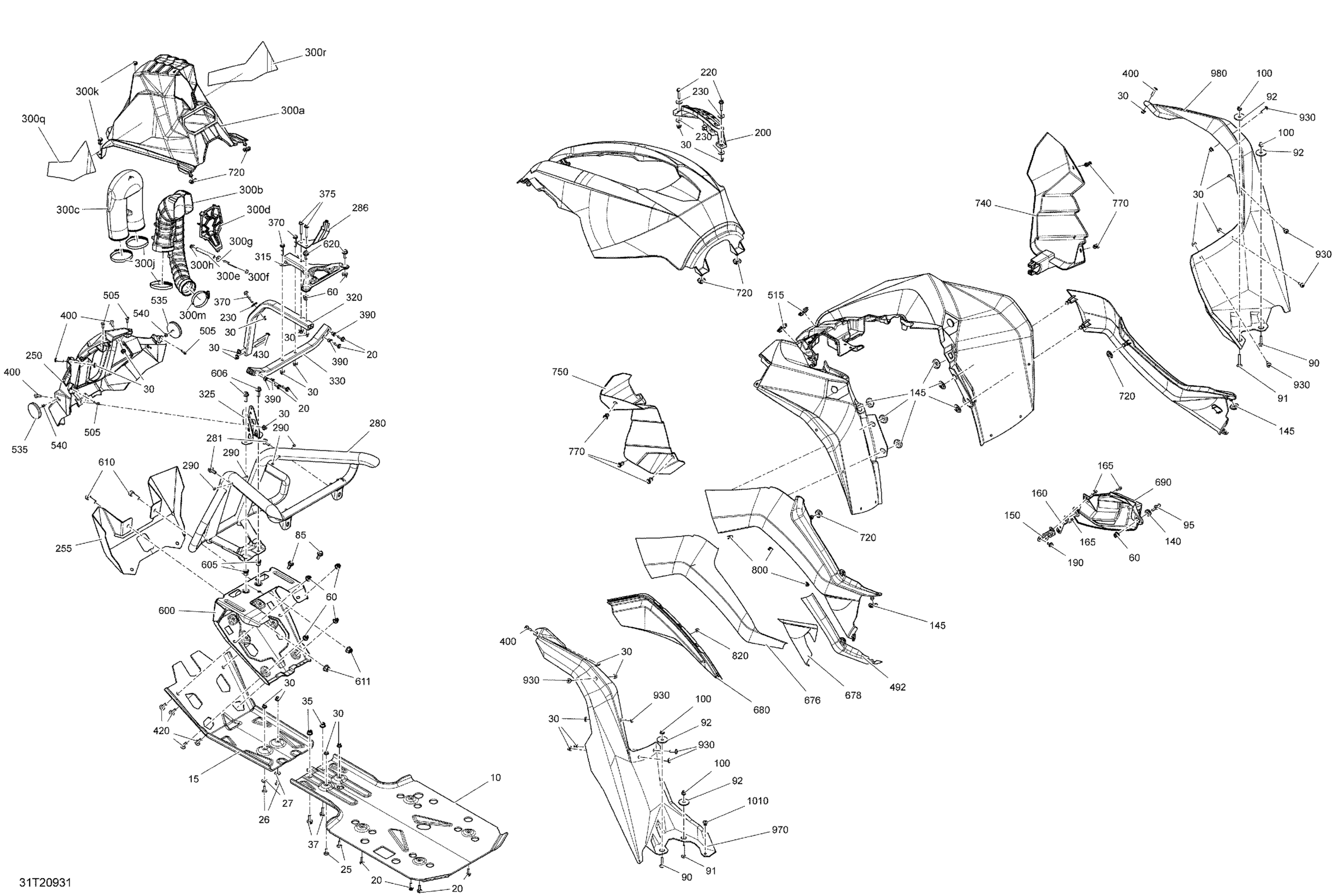

Can-Am Renegade 570 EFI - XMR - 2020 Body - Front Section - Black Diagram

#

Description
Price

10

Central Skid Plate | Package-XXC

705204031

$174.49

15

Front Skid Plate | Package Hunter

705205019

$179.99

20

Hex. Flange Screw M6 X 20

207662054

$1.01

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

26

Torx Screw M6 X 20

250000712

$2.11

27

Stainless Steel Flat Washer

234062670

$2.11

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M8

233281434

$2.11

37

Hex. Flange Screw M8 X 25

207682534

$2.11

60

Hex. Flange Elastic Nut M8

233281434

$2.11

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

90

Carriage Bolt M6 X 35

207763554

$2.11

91

Carriage Bolt M6 X 45

207764550

$6.09

92

Flat Washer M8

250200158

$2.11

95

Ball Head Stud

250300039

$7.51

100

Hex. Flange Elastic Nut M6

233261494

$1.58

140

Grommet

709000582

$4.69

145

Oval Washer

705000321

$5.61

150

Engine Cover Support

705011461

$10.49

160

Engine Cover Support

705003646

$9.23

165

Hex. Flange Screw M6 X 12

210261250

$1.90

190

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

200

Lever Indicator

705003838

$28.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Front Facia

705010673

$73.99

255

Front Facia

705009707

$119.99

280

Paint Sunburst Yellow Front Bumper

705012139

$280.99

281

Hex. Flange Screw M8 X 20

207682044

$1.15

286

Fuse Bracket

705009695

$39.99

290

Plug

293000121

$3.99

300a

Hood XMR

705009685

$93.99

300b

Upper Air Inlet

707001779

$85.99

300c

Upper Air Outlet

707001782

$54.99

300d

Prefilter Screen

705010922

$20.99

300e

Bushing

293900122

$15.99

300f

Hex. Screw M6 X 100

230060060

$7.41

300g

Flat Washer M6

250200115

$3.28

300h

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300m

Norma Clamp

293650077

$7.41

300j

Norma Clamp

293650091

$11.12

300k

Tuflok Plastic Rivet

293150230

$1.47

300q

Sunburst Yellow Hood Decal LH

704906375

$58.99

300r

Sunburst Yellow Hood Decal RH

704906376

$58.99

315

Bracket

705003599

$24.49

320

Front Bent Sectional Tube

705016094

$104.99

325

Support

705009706

$48.99

330

Bent Sectional Tube

705016093

$104.99

370

Hex. Flange Screw M6 X 35

207663544

$0.90

375

Hex. Flange Screw M6 X 40

207664044

$2.22

390

Insert

293450275

$12.99

400

Torx Screw M6 X 25

250000758

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M6 X 45

207664544

$1.46

492

Heat Shield

705010559

$8.89

505

Torx Screw K50 X 16

250000720

$1.69

515

Oblong Grommet

705003668

$5.79

535

Amber Reflector | Except Europe Model

705011222

$14.49

540

Flange Elastic Nut M5

233251434

$2.00

600

Skid Plate

705009684

$317.99

605

Insert Half Hex Body M8 x 1.25

293450307

$2.69

606

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

610

Socket Screw M10 x 30 | XT

205003044

$3.17

611

Hex. Flange Elastic Nut M10

233201434

$2.09

620

Hex. Flange Screw M8 X 20

207682044

$1.15

676

Reflective Sheet

705005620

$12.99

678

Reflective Sheet | Outlander

705005622

$3.89

680

Panel Extension

705004988

$15.49

690

Engine Cover

705004966

$14.49

720

Grommet

705003264

$4.09

740

RH Front Wheel Arch Protector

705017922

$26.99

750

LH Front Wheel Arch Protector

705017926

$26.99

770

Tuflok Plastic Rivet

293150230

$1.47

800

Clip

414479100

$1.90

820

Rubber Bumper

293830005

$8.09

930

Torx Screw M6 X 20

250000712

$2.11

970

Mudguard

705009736

$134.99

980

RH Front Mudguard

705009737

$134.99

1010

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
