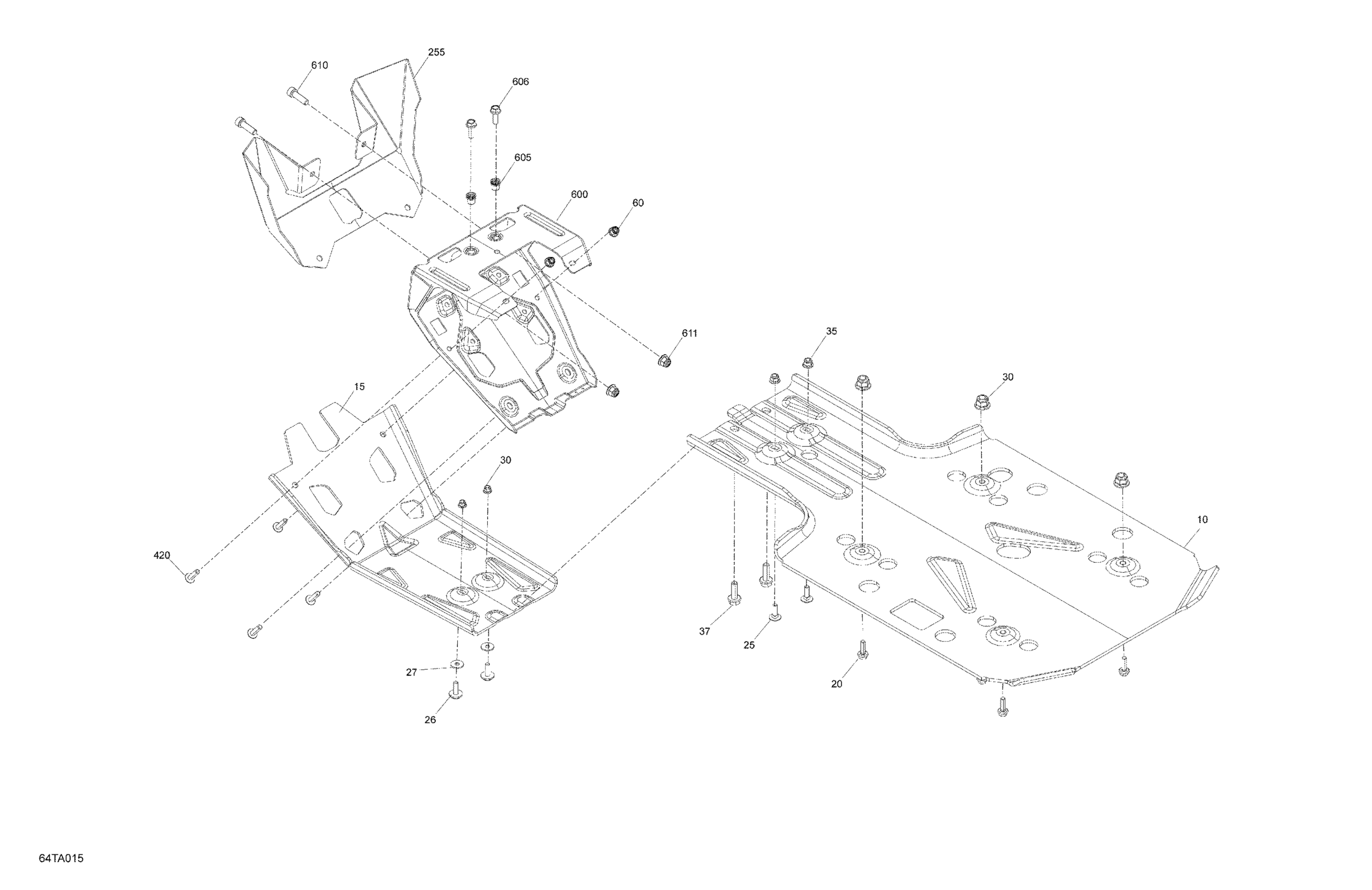

Can-Am Renegade 1000R EFI - XMR - NEO YELLOW - CE, 2021 Body - Skid Plate Diagram

Central Skid Plate | Package-XXC

705204031

$174.49

Front Skid Plate | Package Hunter

705205019

$179.99

Hex. Flange Screw M6 X 20

207662054

$1.01

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Torx Screw M6 X 20

250000712

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

Hex. Flange Screw M8 X 25

207682534

$2.11

Hex. Flange Elastic Nut M8

233281434

$2.11

Front Facia

705009707

$119.99

Torx Screw M8 X 30

250000886

$2.11

Skid Plate

705009684

$317.99

Insert Half Hex Body M8 x 1.25

293450307

$2.69

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201434

$2.09
