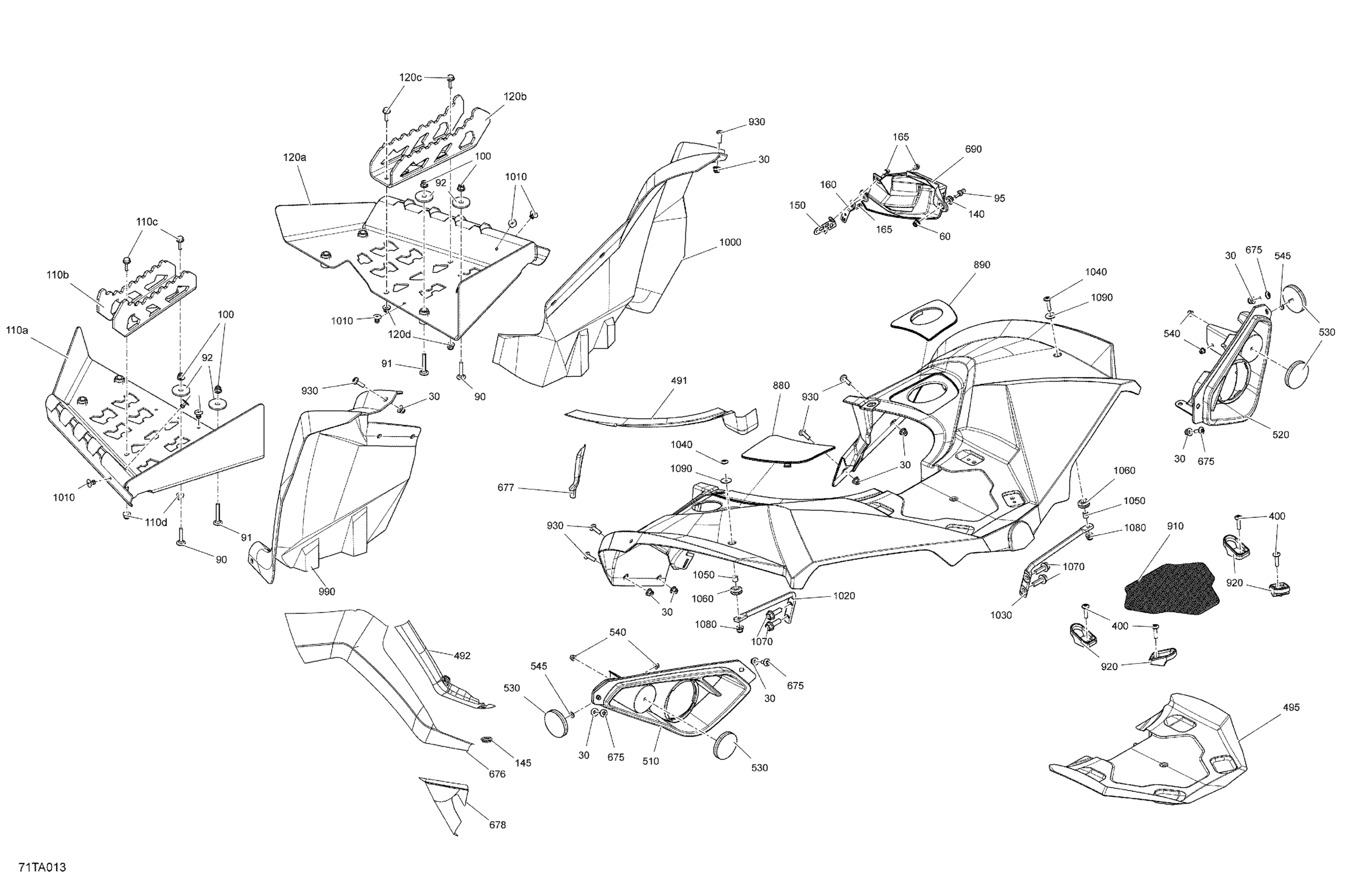

Can-Am Renegade 1000R EFI - XMR - NEO YELLOW - CE, 2021 Body - Rear Section Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.15

60

Hex. Flange Elastic Nut M8

233281434

$2.00

90

Carriage Bolt M6 X 35

207763554

$1.96

91

Carriage Bolt M6 X 45

207764550

$5.54

92

Flat Washer M8

250200158

$2.00

95

Ball Head Stud

250300039

$7.06

100

Hex. Flange Elastic Nut M6

233261494

$1.45

110a

Deep Black, LH Footrest

705016588

$295.49

110b

LH Foot Rest

705010493

$105.94

110c

Hex. Flange Screw M6 X 20

207662034

$2.00

110d

Flange Elastic Nut M6

233261434

$4.15

120a

Deep Black, RH Footrest -SB

705017261

$295.49

120b

RH Foot Rest

705010499

$105.94

120c

Hex. Flange Screw M6 X 20

207662034

$2.00

120d

Flange Elastic Nut M6

233261434

$4.15

140

Grommet

709000582

$4.25

145

Oval Washer

705000321

$5.33

150

Engine Cover Support

705011461

$8.24

160

Engine Cover Support

705003646

$7.21

165

Hex. Flange Screw M6 X 12

210261250

$1.79

400

Torx Screw M6 X 25

250000758

$2.00

491

Reflective Sheet

705002451

$8.66

492

Heat Shield

705010559

$8.66

495

Reflective Sheet

705005840

$7.67

510

LH Rear Facia | North America, International

705004731

$16.39

520

RH Rear Facia | North America, International

705004732

$16.39

530

Red Reflector

705011221

$11.96

540

Flange Elastic Nut M5

233251434

$1.91

545

Flat Washer

517225900

$0.16

675

Torx Screw M6 X 16

250000755

$0.82

676

Reflective Sheet

705005620

$11.51

677

Heat Shield

705010557

$8.66

678

Reflective Sheet | Outlander

705005622

$3.81

690

Engine Cover

705004966

$12.85

800

Clip

414479100

$1.81

880

LH Rear Body Panel Cap

705017923

$12.30

890

RH Rear Body Panel Cap

705017924

$14.27

910

Rear Carpet

705002343

$16.39

920

Hook

705017925

$14.90

930

Torx Screw M6 X 20

250000712

$2.00

990

Mudguard

705009738

$120.87

1000

Mudguard

705009739

$120.87

1010

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1020

LH Fender Support

705010314

$46.24

1030

RH Fender Support

705010315

$46.24

1040

Torx Screw M6 X 25

250000758

$2.00

1050

Bushing

293900105

$6.07

1060

Grommet

709000582

$4.25

1070

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

1080

Flange Elastic Nut M6

233261434

$4.15

1090

Flat Washer

250200040

$1.76
