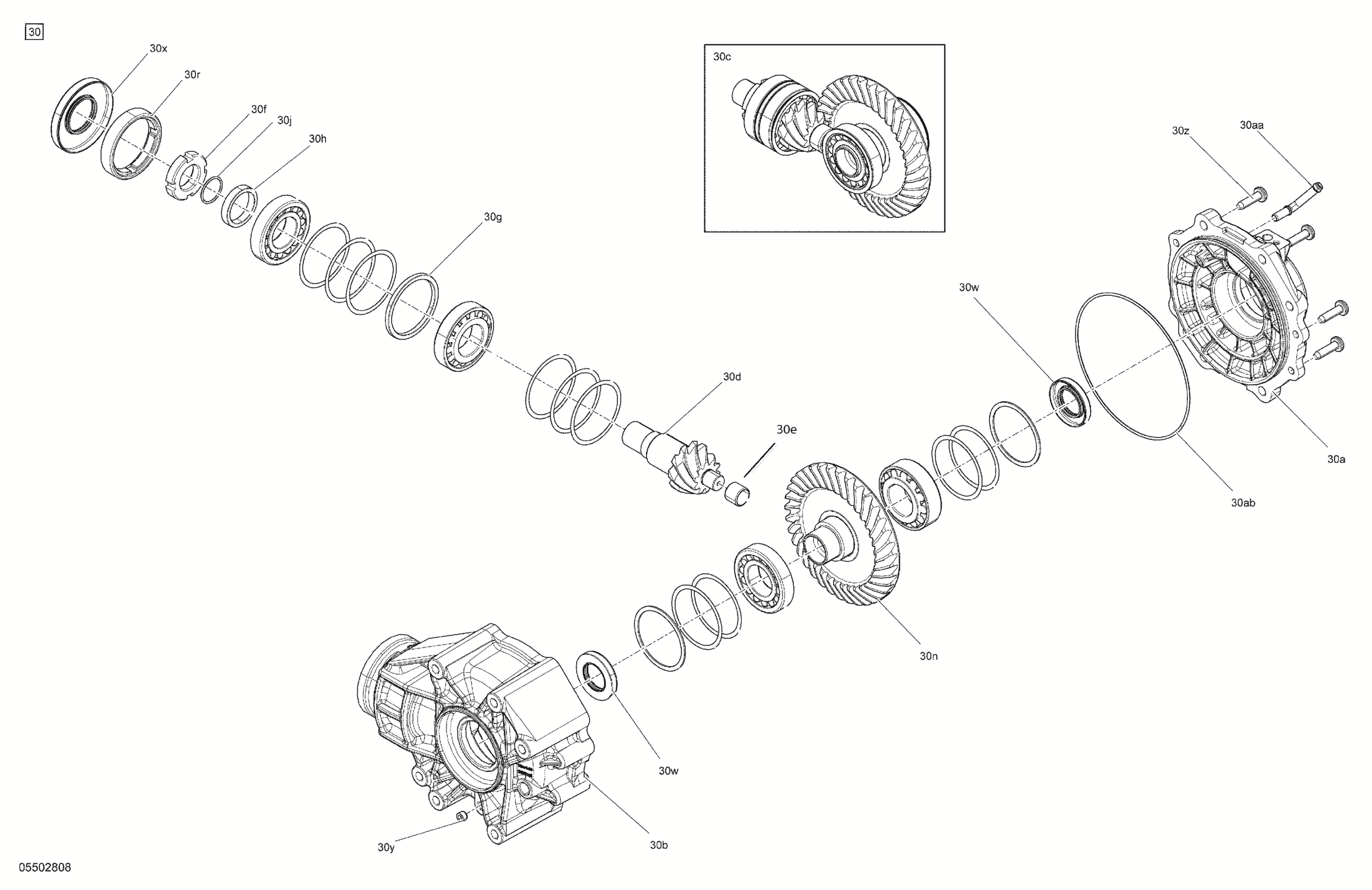

Can-Am Renegade 1000R EFI - XMR - NEO YELLOW - CE, 2021 Drive - Rear Section - Differential Parts Diagram

Description

Price

Rear Final Drive Unit | Includes 30 to 30n

705503536

$1,269.20

30a

Rear Cover

705502547

$156.89

30b

Rear Pinion Cover

705502180

$281.51

30c

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

30d

Geart 10 Teeth

705502809

Unavailable

30e

Needle Bearing Ass'y

703500836

$53.82

30f

Nut

705501550

$23.05

30g

Differential Shim

705501552

Unavailable

30h

Differential Shim

705501553

Unavailable

30j

O-Ring

705501554

$4.62

30n

Gear 36 Tooth

705502810

Unavailable

30r

Nut

705501549

$32.28

30w

Oil Seal

705501556

$17.66

30x

Oil Seal

705501557

$18.43

30y

Plug Drain

705501724

$5.98

30z

Screw

705502063

$3.08

30aa

Breather Tube

705501584

$13.86

30ab

O-Ring

705501711

$9.29
