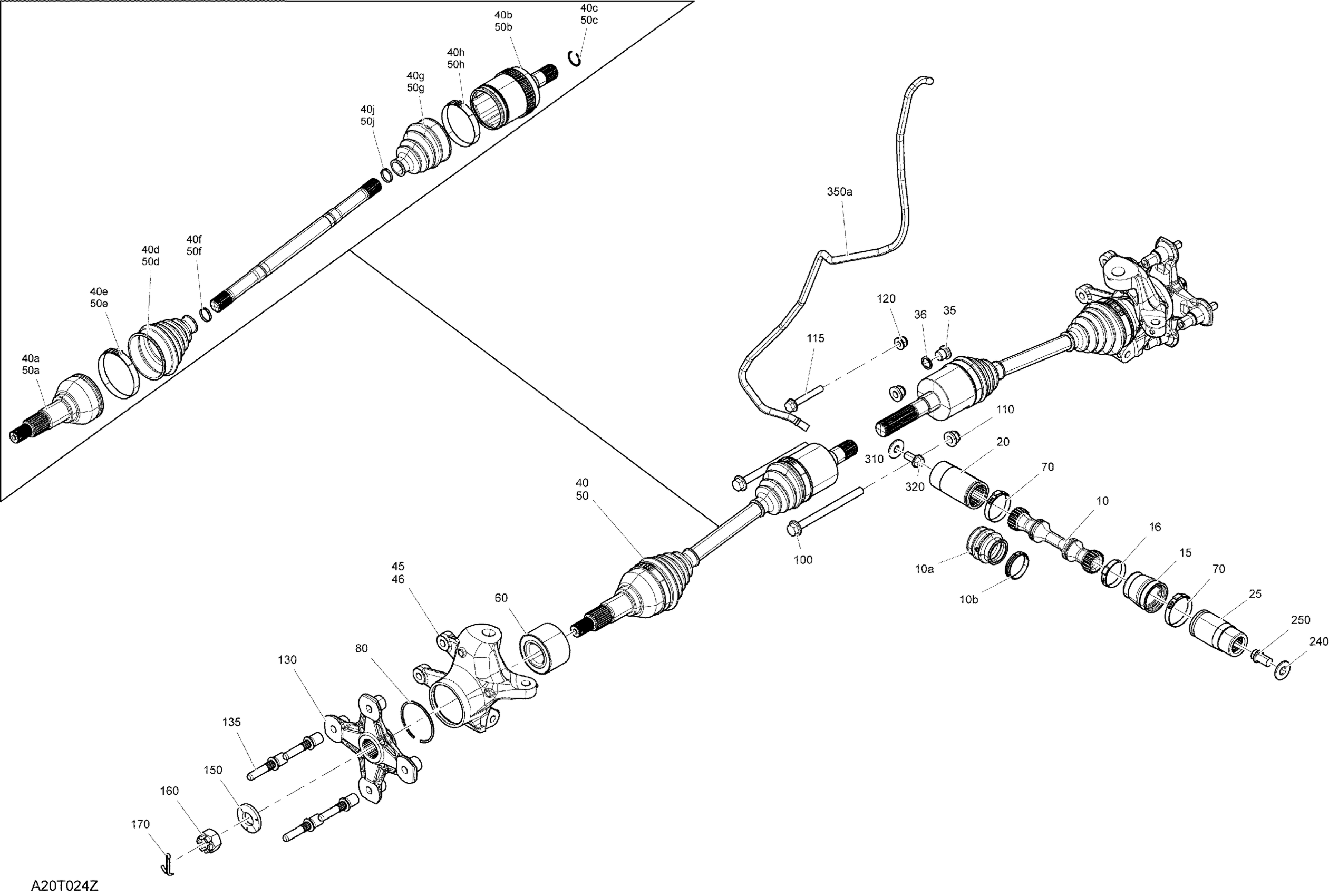

Can-Am Renegade 1000R EFI - XMR - NEO YELLOW - CE, 2021 Drive - Front Section - Common Parts Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$211.99

10a

Rubber Boot

715900118

$14.30

10b

Oetiker Gear Clamp 36.1MM

509000045

$8.29

15

Rubber Boot

705401093

$5.00

16

Oetiker Gear Clamp

293650199

$9.69

20

Coupling Sleeve

705401969

$28.49

25

Front Bushing Shaft Kit | 4X4

703500678

$114.99

25b

Wear Ring | 4X4

705400036

$26.49

33

Deflector | Not shown

705402903

$18.49

35

Fill Level Plug | 4X4

705500504

$10.01

36

Copper Washer | 4X4

705500506

$0.45

40

RH CV Joint | Includes 40 to 40j

705402238

$275.49

40a

CV Joint

715900428

$259.49

40b

RH Plunging CV Joint

715900395

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40e

Oetiker Clamp, Large

715900260

$10.33

40f

Oetiker Clamp, Small

715900261

$5.29

40g

Boot Kit, Différential Side

705401355

$42.49

40h

Oetiker Clamp, Small

715900261

$5.29

40j

Oetiker Clamp, Large

715900262

$10.33

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

LH CV Joint | Includes 50 to 50j

705403009

$275.49

50

LH CV Joint | Includes 50 to 50j

705403009

$275.49

50a

CV Joint

705401407

$259.49

50b

LH Plunging CV Joint | Built Before Oct 18th 2020

715008118

Unavailable

50b

LH Plunging CV Joint

715900396

$259.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401354

$42.49

50e

Oetiker Clamp, Large

715900260

$10.33

50f

Oetiker Clamp, Small

715900261

$5.29

50g

Boot Kit, Différential Side

705401355

$42.49

50h

Oetiker Clamp, Small

715900261

$5.29

50j

Oetiker Clamp, Large

715900262

$10.33

60

Ball Bearing

293350150

$52.99

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Hex. Flange Screw M8 X 55

207685544

$5.39

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Wheel Hub | Built Dec 21 2020 And Up

705503050

$104.99

135

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

240

Flat Washer M12

250200102

$2.11

250

Hex Flange Screw M12 X 20

250001042

$1.90

310

Flat Washer M10 | 4X4

250200014

$1.49

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
