04- Drive - Front Differential - 705402700

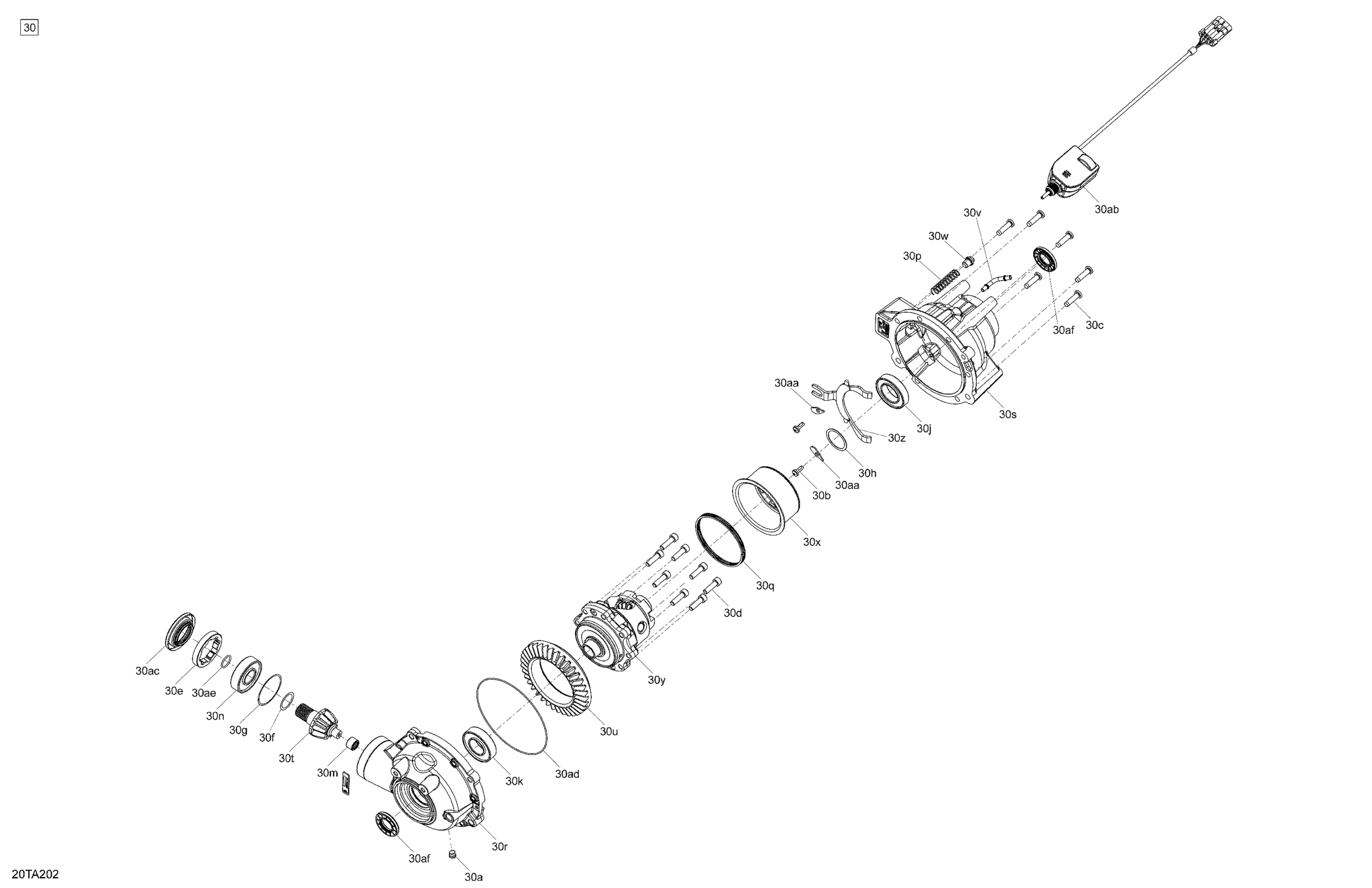

Can-Am 002 - Renegade 1000R EFI - XMR - NEO YELLOW - CE, 2021 04- Drive - Front Differential - 705402700 Diagram
#
Description
Price
30
Front Differential Ass'y | Includes 30 to 30af
705402700
Unavailable
30a
Drain Plug | After May 30, 2014
705501885
Unavailable
30b
Torx Screw M6 X 16
705402845
Unavailable
30c
Screw | 4X4
705401601
Unavailable
30d
Screw | After May 30, 2014
705401602
Unavailable
30e
Nut | 4X4
705401603
Unavailable
30f
Shim
705401769
Unavailable
30g
Shim
705401770
Unavailable
30h
Shim
705402846
Unavailable
30j
Ball Bearing
705402847
Unavailable
30k
Ball Bearing | 4X4
705401606
Unavailable
30m
Ball Bearing | After May 30, 2014
705402848
Unavailable
30n
Ball Bearing
705402849
Unavailable
30p
Compression Spring
705402850
Unavailable
30q
Wave Spring
705402851
Unavailable
30r
Front Pinion Cover | After May 30, 2014
705401792
Unavailable
30s
Front Cover
705402719
Unavailable
30t
Pinion 10 Teeth | After May 30, 2014
705402841
Unavailable
30u
Gear 36 Teeth
705402842
Unavailable
30v
Vent Valve | After May 30, 2014
705401613
Unavailable
30w
Plunger
705402854
Unavailable
30x
Shift Collar
705402855
Unavailable
30y
Differantial 0 CIP
705402789
Unavailable
30z
Shift Fork
705402785
Unavailable
30aa
Retaining Ring
705402783
Unavailable
30ab
Actuator
705403060
Unavailable
30ac
Oil Seal | After May 30, 2014
705401615
Unavailable
30ad
Seal | After May 30, 2014
705401616
Unavailable
30ae
O'Ring | After May 30, 2014
705401617
Unavailable
30af
Gasket | 4X4
705401618
Unavailable
