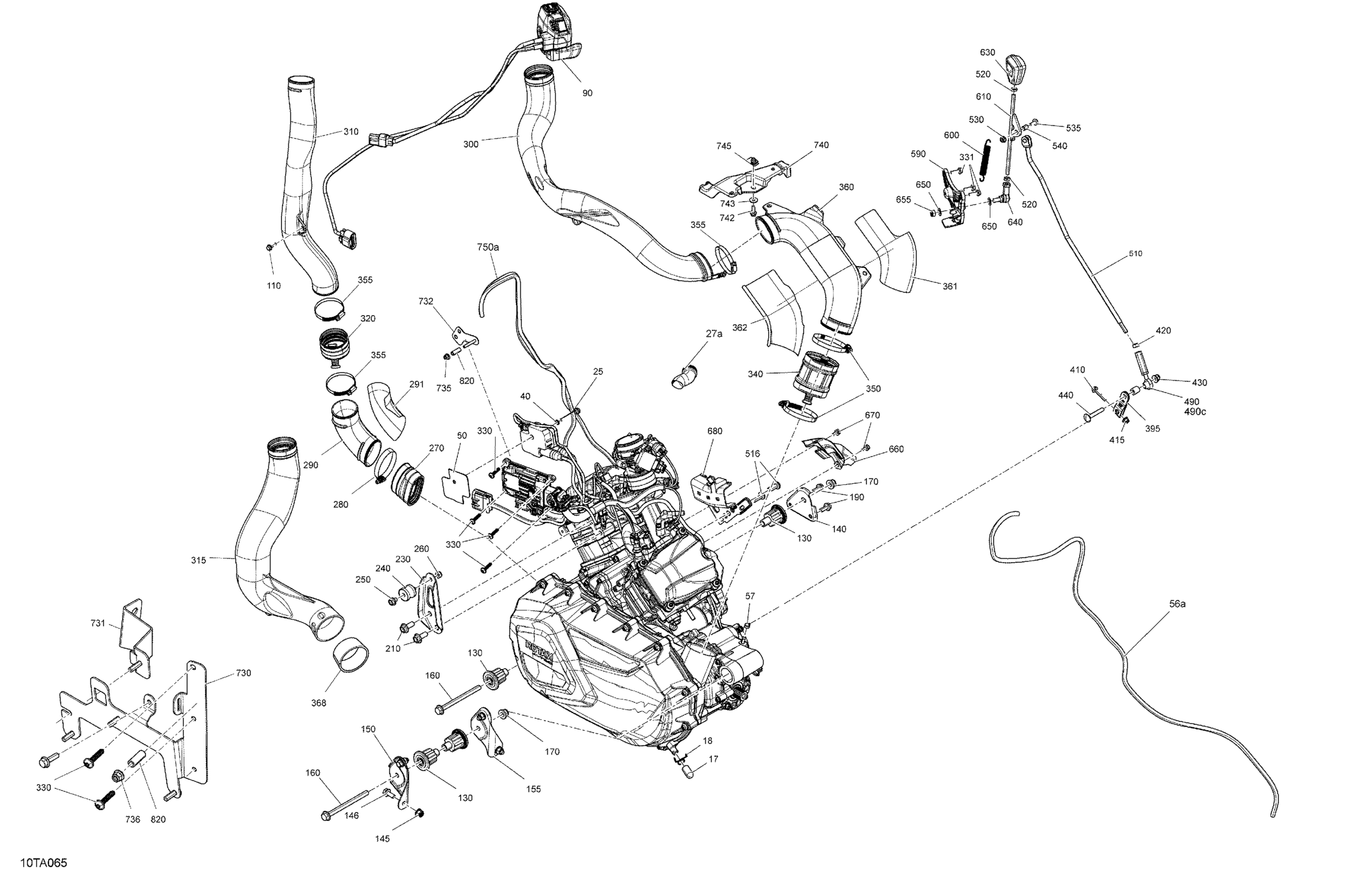

Can-Am Renegade 1000R EFI - XMR - NEO YELLOW - CE, 2021 Engine - System Diagram

#

Description
Price

17

Plug

707001185

$1.04

18

Retainer Clip

707800506

$10.51

25

Hex. Flange Screw M6 X 50

207665044

$3.88

27a

Tubing 25 MM 1000MM Long

219704402

$14.57

40

External Serrated Lock Washer 6 mm

234461608

$1.06

50

Insulator Pad

710000073

$10.30

56a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

57

Oetiker Clamp | Europe

293650044

$4.67

90

Hand Lever Accelerator ITC

707003185

$196.24

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$8.21

145

Hex. Elastic Flange Nut M8

233281416

$1.43

146

Hex. Flange Screw M8 X 20

207682046

$1.76

150

LH Rear Engine Bracket

707001191

$8.21

155

RH Rear Engine Bracket

707001192

$8.21

160

Hex. Flange Screw M10 X 125

230602546

$6.99

170

Hex. Flange Elastic Nut M10

233201436

$2.00

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

210

Hex. Flange Screw M10 X 25

207602544

$1.52

230

Upper Engine Support

707003326

$12.30

240

Rubber Isolator

707000949

$10.33

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

260

Hex. Elastic Stop Nut M8

232581414

$0.54

270

Flexibale Adaptor

707002585

$14.31

280

Norma Clamp

293650091

$10.54

290

CVT Air Inlet

707001087

$38.78

291

Heat Shield

707001654

$2.59

300

CVT Air Outlet | Package XMR

707001780

$103.70

310

CVT Air Inlet

707001778

$56.69

315

Inferior CVT Air Outlet | Package XMR

707001781

$97.73

320

Adaptor

707001274

$14.90

330

Screw PT K60 X 30

250000949

$2.00

331

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

340

CVT Air Outlet Adaptor

707001168

$14.27

350

Norma Gear Clamp

293650118

$11.18

355

Norma Clamp

293650091

$10.54

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$8.66

362

Heat Shield

707001206

$8.66

368

Heat Shield

707002092

$8.66

395

Lever

707000911

$18.63

410

Hex. Flange Screw M6 X 35

207663544

$0.85

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

420

Hex. Nut M8, LH Threads

250100144

$1.88

430

Hex. Flange Elastic Nut M8

233281414

$1.31

440

Carriage Bolt M8 X 30

207783044

$2.00

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$34.30

490c

Hex. Jam Nut M8

232180600

$0.64

510

Shifter Rod

707002068

$30.57

516

Screw Socket M10 X 25 | Europe

205402556

$3.73

520

Hex. Jam Nut M8

232180600

$0.64

530

Hex. Flange Nut M6

233161414

$2.00

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.15

540

Bushing

293900019

$7.21

590

Lever Support

707003054

$6.16

600

Spring

707000577

$9.73

610

Shift Arm | Except Europe

707000840

$14.43

630

Lever Trim

707003211

$7.72

640

RH Ball Joint

707001959

$34.30

650

Washer

506151252

$3.01

655

Hex. Elastic Stop Nut M8

232581414

$0.54

660

Cover OPS

707000410

$12.34

670

Hex. Flange Screw M6 X 12

210261250

$1.79

680

Cable Support

707003053

$7.72

730

Welded Support

707002355

$76.84

731

Welded Support

707002356

$21.61

732

CVT Outlet Support

707002418

$14.90

735

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

735

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

736

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

740

Air Outlet Support

707003075

Unavailable

742

Hex. Flange Screw M6 X 20

207662044

$1.91

743

Flat Washer 6 mm

234062410

$0.73

745

Panel Nut M6 X 1.0

250100198

$1.99

750a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

820

Spacer

708300736

$7.93
