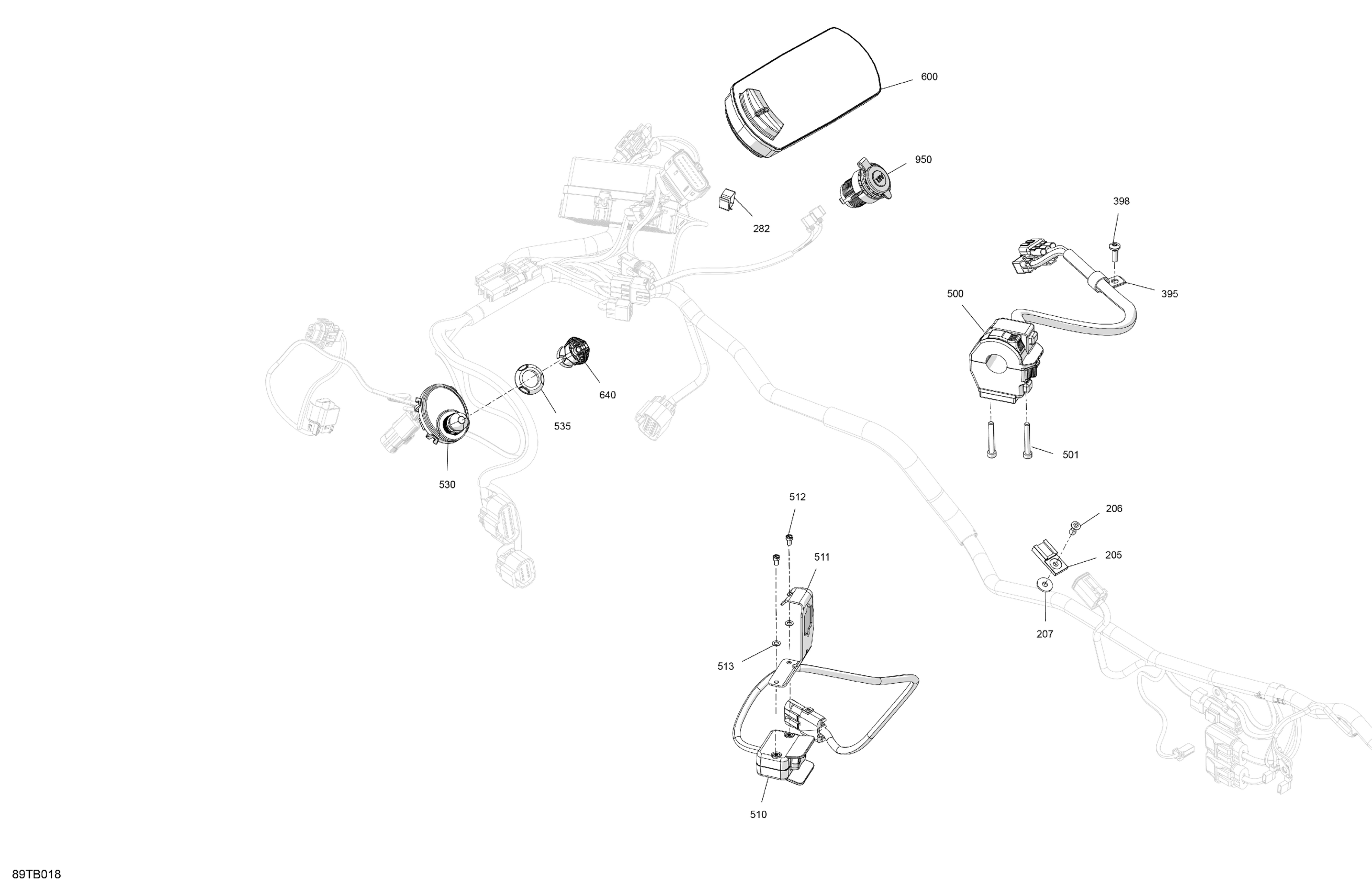

Can-Am Renegade 1000R EFI - XMR - CE, 2022 Electric - Front Section Diagram

Clip

270000141

$9.57

Pop Rivet 3/16 X ,551

293150301

$0.73

Washer | DS 650 X

391301600

$0.46

Clip

710010204

$1.40

Open Clamp

518321570

$5.85

Torx Screw K50 X 16

250000720

$1.60

Switch Handle

710006134

$66.39

Socket Head Screw M5 X 35

205053588

$1.79

Winch Switch

710007327

$11.33

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$8.84

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.61

Flat Washer 4 mm

234040600

$0.52

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Specialized Nut

278004274

$3.12

Multifunction Gauge Compact Mono

710008108

$364.90

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

DC Outlet

710001248

$35.79
