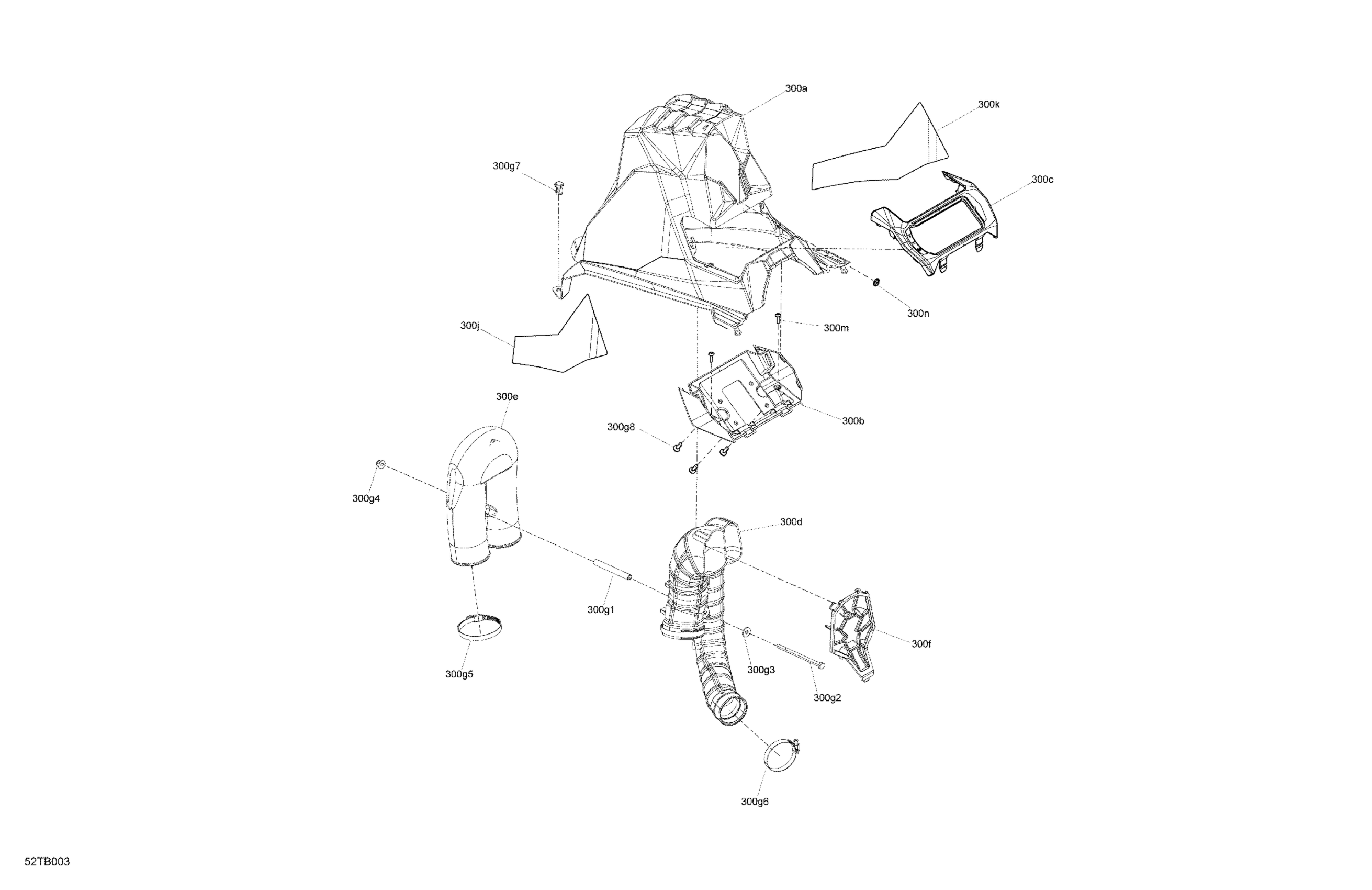

Can-Am Renegade 1000R EFI - XMR - CE, 2022 Body - Snorkel Diagram

Description

Price

300a

Snorkel

705015170

$92.51

300b

Int Gauge Support

705015171

$5.51

300c

Gauge Trim

705015189

$20.12

300d

Upper Air Inlet

707001779

$76.84

300e

Upper Air Outlet

707001782

$49.22

300f

Prefilter Screen

705010922

$20.01

300g1

Bushing

293900122

$14.27

300g2

Hex. Screw M6 X 100

230060060

$6.99

300g3

Flat Washer M6

250200115

$3.12

300g4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

300g5

Norma Clamp

293650091

$10.54

300g6

Norma Clamp

293650077

$7.01

300g7

Tuflok Plastic Rivet

293150230

$1.39

300g8

Torx Screw K50 X 16

250000720

$1.60

300j

LH Front Hood Decal

704908768

$21.61

300k

RH Front Hood Decal

704908769

$21.61

300m

Torx-Truss Pt K40 X 16

250000759

$2.00

300n

BRP Logo 13 MM

516010651

$11.09
