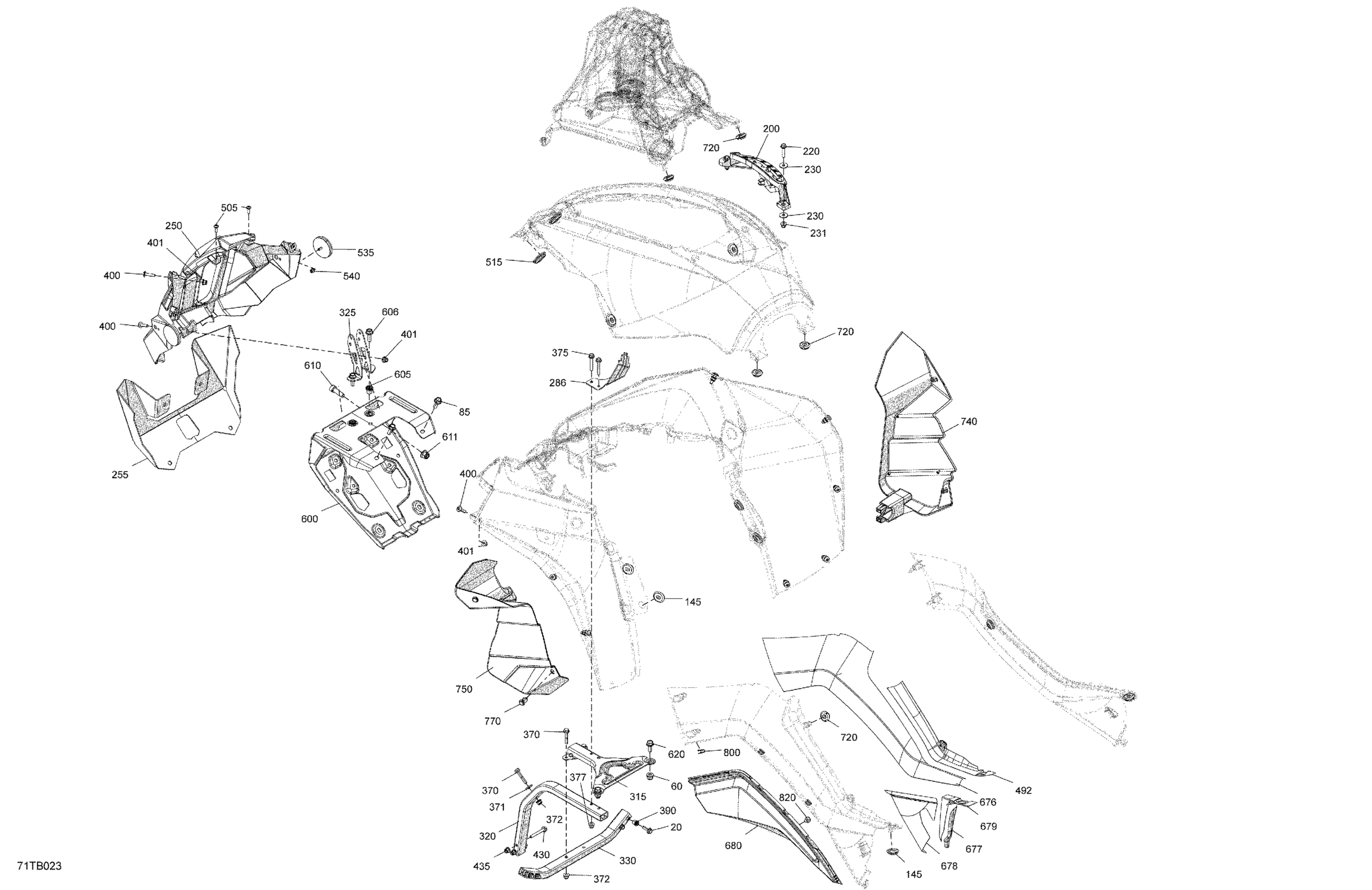

Can-Am Renegade 1000R EFI - XMR - CE, 2022 Body - Front Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.83

60

Hex. Flange Elastic Nut M8

233281414

$1.14

85

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

145

Oval Washer

705000321

$4.64

200

Lever Indicator | 1000

705004416

$16.89

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

230

Flat Washer

224061201

$1.11

231

Flange Elastic Nut M6

233261434

$3.61

250

Front Facia

705010673

$67.66

255

Front Facia

705009707

$111.51

286

Fuse Bracket

705009695

$33.05

315

Bracket

705003599

$22.28

320

Front Sectinal Bent Tube

705016643

$94.58

325

Support

705009706

$44.58

330

Sectinal Bent Tube

705016642

$94.58

370

Hex. Flange Screw M6 X 35

207663544

$0.74

371

Flat Washer

224061201

$1.11

372

Flange Elastic Nut M6

233261434

$3.61

375

Hex. Flange Screw M6 X 40

207664044

$2.18

377

Flange Elastic Nut M6

233261434

$3.61

390

Insert

293450275

$9.89

400

Torx Screw M6 X 25

250000758

$1.74

401

Flange Elastic Nut M6

233261434

$3.61

430

Hex. Flange Screw M6 X 45

207664544

$1.07

435

Flange Elastic Nut M6

233261434

$3.61

451

Reflective Sheet

707002475

$36.89

492

Heat Shield

705010559

$8.98

505

Torx Screw K50 X 16

250000720

$1.39

515

Oblong Grommet

705003668

$4.54

535

Amber Reflector | Except Europe Model

705011222

$12.32

540

Flange Elastic Nut M5

233251434

$1.66

600

Skid Plate

705009684

$304.58

605

Insert Half Hex Body M8 x 1.25

293450307

$2.03

606

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

610

Socket Screw M10 x 30 | XT

205003044

$2.61

611

Hex. Flange Elastic Nut M10

233201434

$1.63

620

Hex. Flange Screw M8 X 20

207682044

$0.92

676

Reflective Sheet

705005620

$11.98

677

Heat Shield

705010557

$9.29

678

Reflective Sheet | Outlander

705005622

$3.98

679

Heat Shield

705010558

$9.29

680

Panel Extension

705004988

$14.75

720

Grommet

705003264

$3.43

740

RH Front Wheel Arch Protector

705017922

$24.58

750

LH Front Wheel Arch Protector

705017926

$24.58

770

Tuflok Plastic Rivet

293150230

$1.21

800

Clip

414479100

$1.86

820

Rubber Bumper

293830005

$5.33
