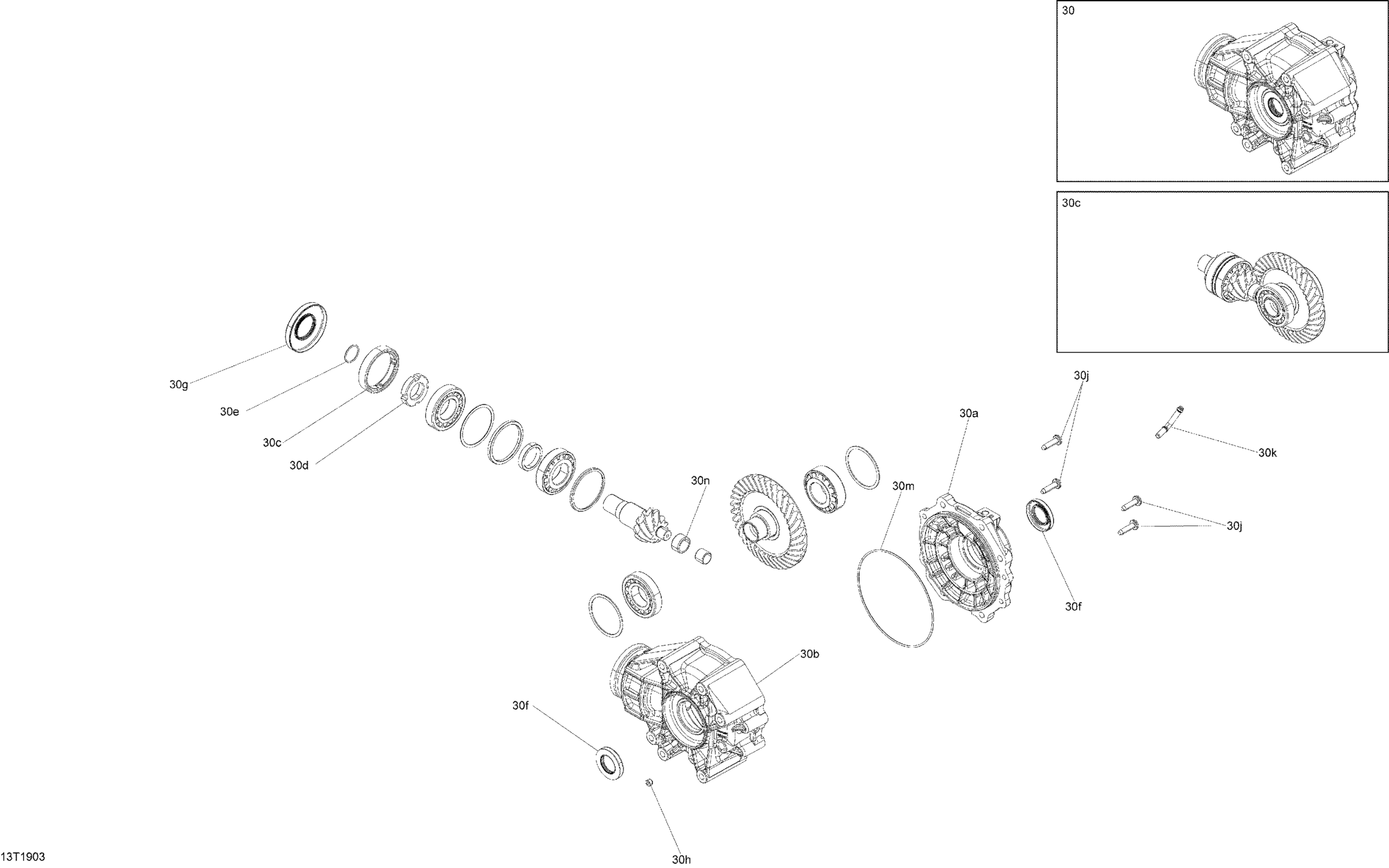

Can-Am Renegade 1000 EFI - T3, 2019 Rear Drive Unit - T3 Diagram

Description

Price

Final Drive Unit

705502546

$1,144.99

30a

Rear Cover

705502547

$163.99

30b

Rear Pinion Cover

705502180

$291.49

30c

Nut

705501549

$32.99

30d

Nut

705501550

$21.99

30e

O-Ring

705501554

$5.03

30f

Oil Seal

705501556

$17.99

30g

Oil Seal

705501557

$19.49

30h

Plug Drain

705501724

$5.95

30j

Screw

705502063

$3.24

30k

Breather Tube

705501584

$14.99

30m

O-Ring

705501711

$10.54

30n

Needle Bearing Ass'y

703500836

$56.99
