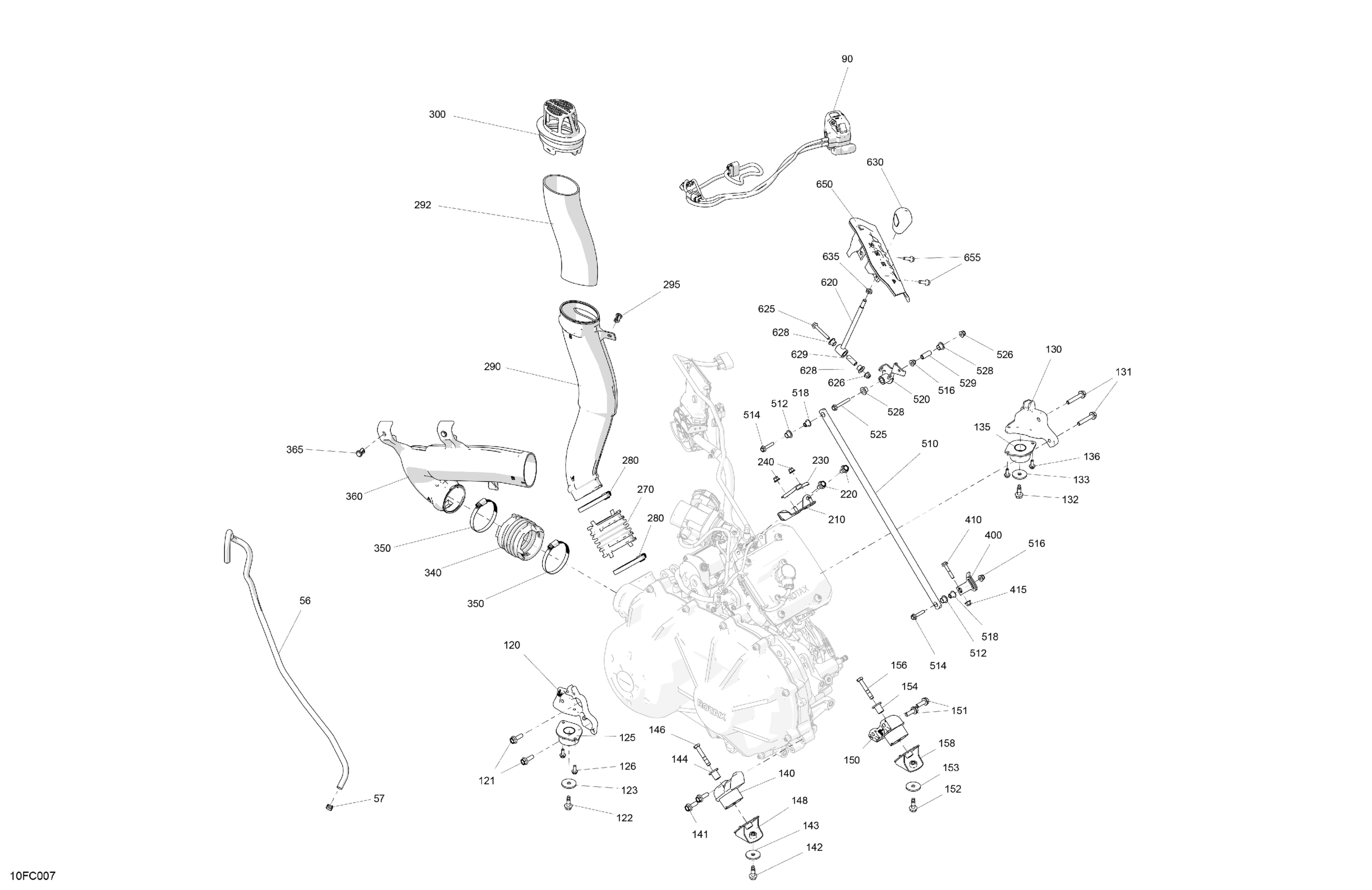

Can-Am Outlander PRO XU HD5 - 2023 Engine - System Diagram

#

Description
Price

56

Hose

219704549

$46.24

57

Spring Clamp

414415200

$0.81

90

Hand Lever Accelerator

707003262

$180.57

120

LH Front Engine Support

707003100

$10.27

121

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

122

Hex Screw M8 S.Grip

250001085

$1.57

123

Washer

250200203

$1.96

125

Vibration Damper

512061508

$55.19

126

Hex. Flange Screw M6 X 16

210261640

$2.00

130

RH Front Engine Support

707003099

$10.27

131

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$6.85

132

Hex Screw M8 S.Grip

250001085

$1.57

133

Washer

250200203

$1.96

135

Vibration Damper

512061508

$55.19

136

Hex. Flange Screw M6 X 16

210261640

$2.00

140

Engine Support Ass'y

707003102

$72.36

141

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

142

Hex Screw M8 S.Grip

250001085

$1.57

143

Washer

250200203

$1.96

144

Flanged Bushing

707003104

$4.73

146

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

148

Support

707003105

$8.24

150

Engine Support Ass'y

707003102

$72.36

151

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

152

Hex Screw M8 S.Grip

250001085

$1.57

153

Washer

250200203

$1.96

154

Flanged Bushing

707003104

$4.73

156

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

158

Support

707003105

$8.24

210

Engine Stopper

707002793

$18.63

220

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

230

Engine Stopper

707002794

$18.63

240

Hex. Flange Elastic Nut M6

233261466

$1.91

270

Duct Fitting

707002414

$17.13

280

Norma Clamp

293650096

$3.00

290

CVT Cooling Duct IN

707002797

$42.51

292

Acoustic Insulation

706600408

$40.27

295

Tuflok Plastic Rivet

293150230

$1.39

300

End Piece

707002886

$17.88

340

Duct Fitting

707002573

$17.13

350

Norma Clamp

293650091

$10.54

360

CVT Cooling Duct Out

707002415

$44.75

365

Tuflok Plastic Rivet

293150230

$1.39

400

Clutch Lever

707002505

$20.12

410

Hex. Flange Screw M6 X 35

207663544

$0.85

415

Hex. Flange Elastic Nut M6

233261466

$1.91

510

Link Rod

707002416

$26.09

512

Flanged Bushing

707003072

$0.97

514

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

516

Hex. Flange Elastic Nut M6

233261466

$1.91

518

Flanged Bushing

707002672

$7.15

520

Clutch Lever

707002809

$20.12

525

Hex. Flange Screw

207664554

$1.99

526

Hex. Flange Elastic Nut M6

233261466

$1.91

528

Flanged Bushing

707003072

$0.97

529

Bushing

707002803

$4.09

620

Gearshift Lever

707002805

$20.12

625

Hex. Flange Screw

207664554

$1.99

626

Hex. Flange Elastic Nut M6

233261466

$1.91

628

Flanged Bushing

707003072

$0.97

629

Bushing

707002803

$4.09

630

Shift Lever Tip

707003177

$8.55

635

Hex. Jam Nut M8

232180491

$7.09

650

Shift Lever Grille

707002808

$25.34

655

Hex. Flange Screw M6 X 20

207662044

$1.91
