10- Electrical System

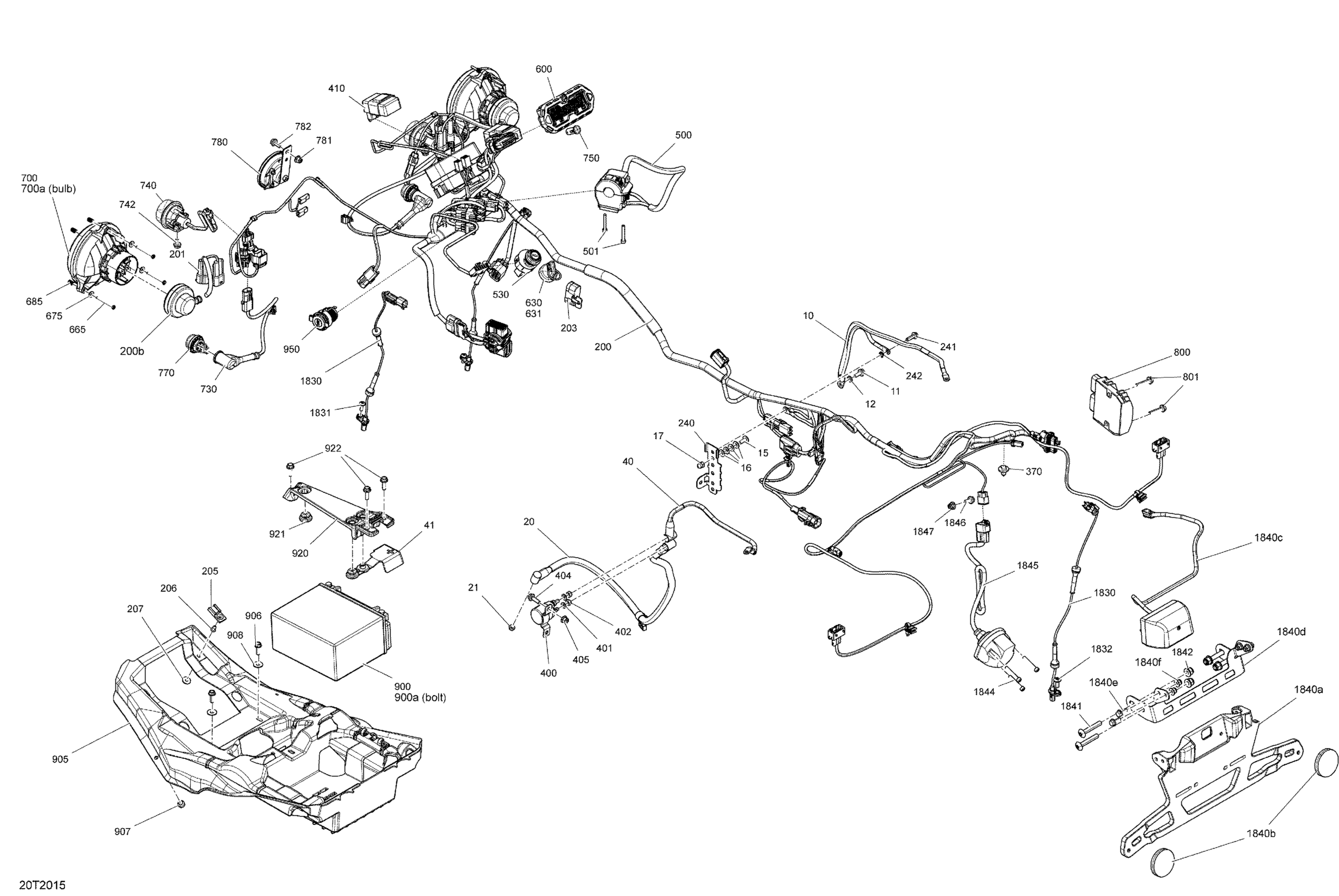

Can-Am 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation, 2020 10- Electrical System Diagram
#
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561414
Unavailable
40
Positive Cable
710004376
Unavailable
41
Battery Cable Cap
710006729
Unavailable
200
Harness
710006169
Unavailable
200
No ABS Cable
710006170
Unavailable
201
Light Cable
710005780
Unavailable
203
DPS Connector Cap | Not Shown
710005760
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
370
Mount Dart
293730040
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561414
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
410
Flasher Unit
710003239
Unavailable
500
LH Multi Fonction Control
710006211
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Ignition Switch
710008400
Unavailable
600
Speedometer
710006216
Unavailable
630
Black, Electronic Key
710000817
Unavailable
631
Grey, Electronic Key
710002183
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
675
Flat Washer
517225900
Unavailable
685
Spring
517168600
Unavailable
700
Low Beam
710003900
Unavailable
700a
Bulb, 12V 35/35W
710000871
Unavailable
730
Position Light Harness
710005676
Unavailable
740
Flasher | Europe
710002964
Unavailable
742
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
750
Pilot Lamp | Model-Europe
710003909
Unavailable
770
Day Light | Europe
710001726
Unavailable
780
Horn
710004791
Unavailable
781
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
782
Hex. Flange Screw M6 X 16
207661644
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
801
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
1830
Speed Sensor
710006981
Unavailable
1831
Torx Screw K50 X 16
250000720
Unavailable
1832
Torx Truss Screw M6 X 16
250000721
Unavailable
1840a
Plate Support | Europe
708300434
Unavailable
1840b
Red Reflector
705011221
Unavailable
1840c
License Plate Light | Europe
710005563
Unavailable
1840d
License Plate Support
710009520
Unavailable
1840e
Hex. Flange Screw M6 X 16
207661644
Unavailable
1840f
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
1841
Torx Truss Screw M8 X 50
250000761
Unavailable
1842
Hex. Flange Elastic Nut M8
233281414
Unavailable
1844
Socket Head Screw M5 X 35
205053588
Unavailable
1845
Trailer Harness
710005846
Unavailable
1846
Hex. Flange Screw M6 X 16
207661644
Unavailable
1847
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
