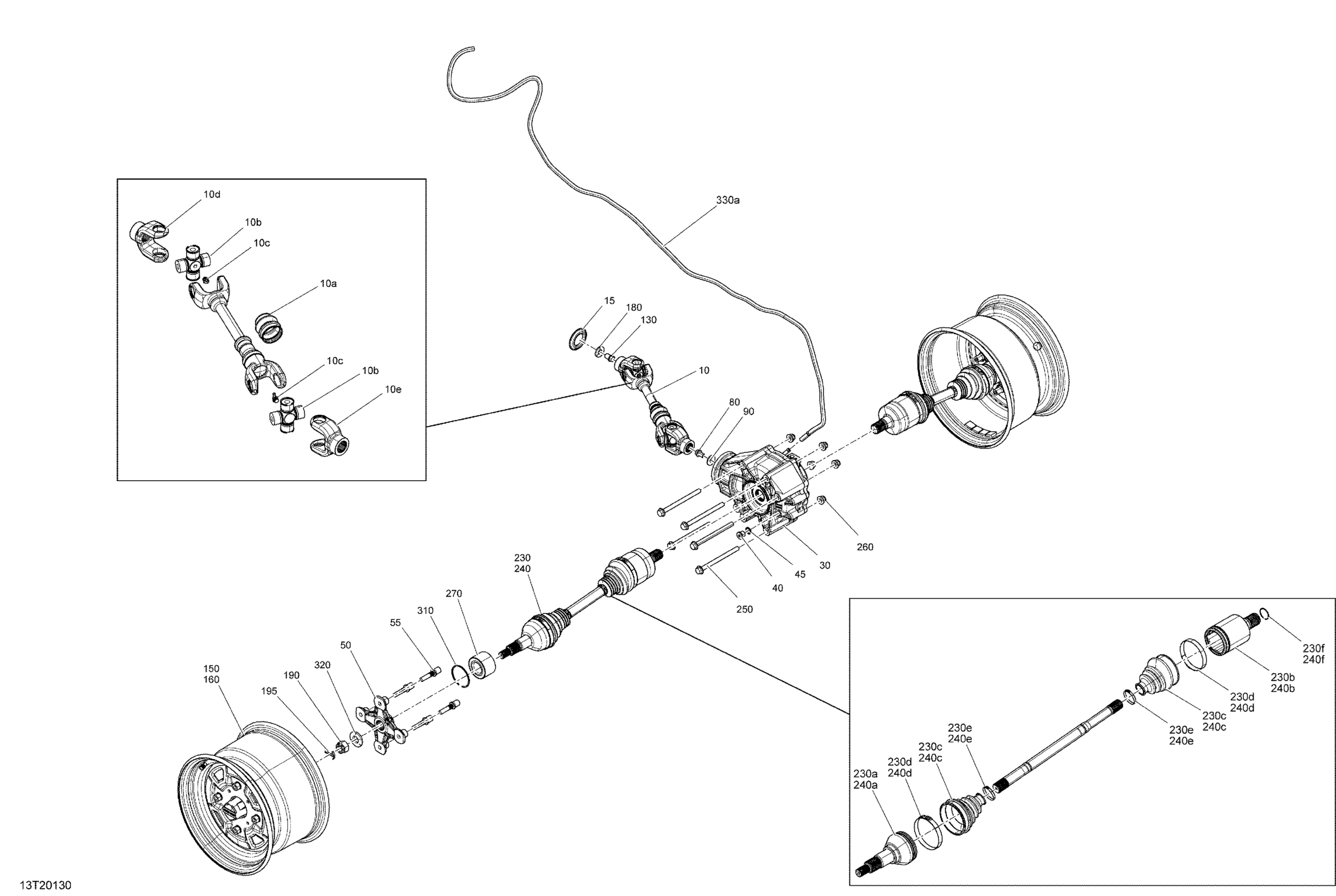

Can-Am Outlander T 570 EFI - STD_DPS_PRO - T Regulation, 2020 Rear Drive - Common Parts Diagram

#

Description
Price

10

Shaft Ass'y Kit

703500988

$328.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Yoke

715900499

$24.99

10e

Yoke

715900438

$24.99

15

Protector

705501123

$7.55

30

Final Drive Unit

705502546

$1,144.99

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub Ass'y

705501716

$105.99

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

150

Not Available As Spare Part - Friction Washer

Unavailable

160

Not Available As Spare Part - Friction Washer

Unavailable

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Boot Kit, Wheel Side

705401345

$42.49

230d

Oetiker Clamp

715900282

$5.29

230e

Oetiker Clamp, Small

715900283

$5.29

230c

Boot Kit, Differential Side

705401346

$42.49

230d

Pin Kit | Packages STD & PRO

715900384

$12.12

230e

Oetiker Clamp, Small

715900261

$5.29

230f

Circlip

705501781

$6.50

230

RH Homocinetic Joint | Includes 230 to 230d2

705502577

$243.99

230a

CV Joint

705501776

$259.49

230b

Plunging Joint

715900604

$110.99

230d

Boot Kit

705501864

$42.49

230e

Oetiker Clamp, 82.1 mm

715900241

$10.33

230f

Oetiker Clamp, 27.3 mm

715900242

$10.33

230c

Circlip

705501781

$6.50

240

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

240a

CV Joint

705501776

$259.49

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Boot Kit

705501864

$42.49

240d

Oetiker Clamp, 82.1 mm

715900241

$10.33

240e

Oetiker Clamp, 27.3 mm

715900242

$10.33

240f

Circlip

705501781

$6.50

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Boot Kit, Wheel Side

705401345

$42.49

240d

Oetiker Clamp

715900282

$5.29

240e

Oetiker Clamp, Small

715900283

$5.29

240c

Boot Kit, Differential Side

705401346

$42.49

240d

Oetiker Clamp, Large

715900284

$5.29

240e

Oetiker Clamp, Small

715900261

$5.29

240f

Circlip

705501781

$6.50

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
