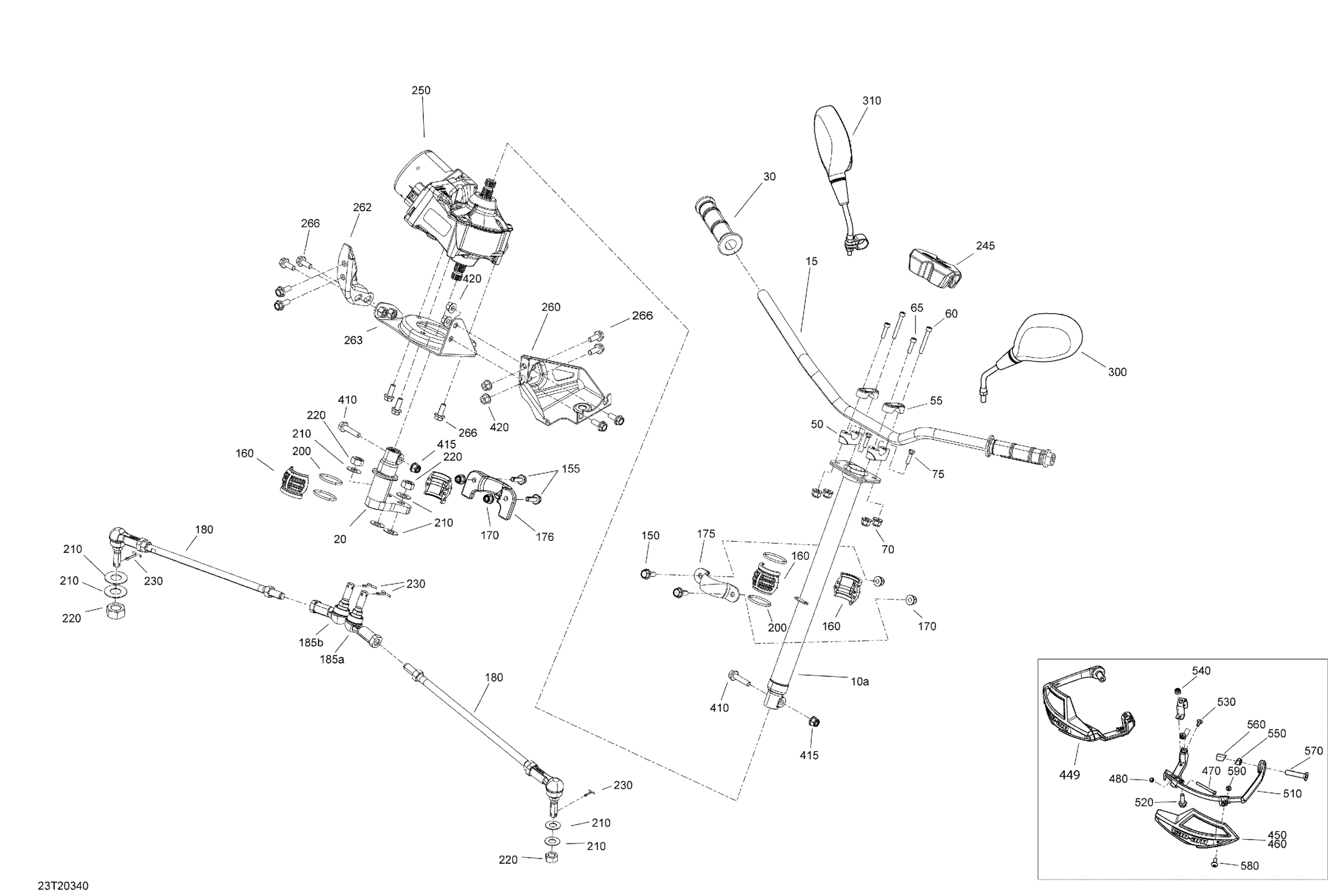

Can-Am 002 - Outlander T 1000 EFI - T Regulation, 2020 07- Steering Diagram

#

Description
Price

10a

Main Tube Kit | Model With DPS

703501108

Unavailable

15

Anodized Handlebar | Package XTP, XXC

709402292

Unavailable

20

Pitman Arm | Model With DPS Except XMR

703501160

Unavailable

30

Handle Grip

709400493

Unavailable

50

Lower Mounting Clamp

709402750

Unavailable

55

Support

709400496

Unavailable

60

Socket Head Screw M8 X 60

205086060

Unavailable

65

Socket Screw M8 X 30

205083060

Unavailable

70

Hex. Elastic Flange Nut M8

233281416

Unavailable

75

Hex. Screw M8 X 30

207183060

Unavailable

150

Hex. Flange Screw M8 X 20

207682044

Unavailable

155

Hex. Flange Screw M8 X 25

207682544

Unavailable

160

Spherical Half Bushing

709400783

Unavailable

170

Hex. Flange Elastic Nut M8

233281414

Unavailable

175

Upper Column Attachment

709400827

Unavailable

176

Column Attachment

709401428

Unavailable

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

Unavailable

185a

LH Ball Joint

709402303

Unavailable

185b

RH Ball Joint

709402302

Unavailable

200

O-Ring

293300068

Unavailable

210

Hardened Washer

706200281

Unavailable

220

Nut M12

250100099

Unavailable

230

Cotter Pin

211400013

Unavailable

245

Steering Cover

709402327

Unavailable

250

Power Steering Ass'y | Model With DPS

709403187

Unavailable

260

Power Steering Module Bracket

709402192

Unavailable

262

RH Bracket | Model With DPS

709402185

Unavailable

263

Power Steering Support | Model With DPS

709401743

Unavailable

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

300

LH Mirror | Europe

709400406

Unavailable

310

RH Mirror | Europe

709400407

Unavailable

410

Hex. Flange Screw M8 X 35

250000986

Unavailable

415

Hex. Elastic Flange Nut M8

233281416

Unavailable

420

Hex. Flange Nut M8

233081416

Unavailable

449

Deflector Kit | Package XXC White/Red/Black

715003811

Unavailable

450

Red, RH Deflector | Package XMR Engine 1000 Red Model

709401667

Unavailable

460

Red, LH Deflector | Package XMR Engine 1000 Red Model

709401668

Unavailable

470

Socket Head Screw M4 X 40

205444056

Unavailable

480

Elastic Stop Nut M4

232541414

Unavailable

510

Air Deflector Support Kit | X

715001378

Unavailable

520

Hex. Flange Screw M6 X 20

207662044

Unavailable

530

Torx Head Screw M6 X 16

250000717

Unavailable

540

Hex. Elastic Stop Nut M6

232561600

Unavailable

550

Small Bracket | DS 650 X

709400161

Unavailable

560

Large Bracket | DS 650 X

709400162

Unavailable

570

Socket Head Screw | X

205384034

Unavailable

580

Torx Screw M5 X 14

250000742

Unavailable

590

Hex. Elastic Nut M5 | X

232551600

Unavailable
