Description

Price

200

Main Wiring Harness

710008559

$886.54

BN1

Terminal

710000913

$5.30

BN2

Open Barrel Terminal

278001392

$4.00

BP1

Open Barrel Terminal

278001392

$4.00

CI

Female Housing 20 Circuits

278002858

$20.12

CI

Sealing Cap

278002860

$1.42

CI

Female Terminal

515178018

$0.78

CI

Female Terminal 22 AWG

515178349

$1.76

D2

Diode

409012700

$10.51

D5

Diode

409012700

$10.51

D6

Diode

409012700

$10.51

DC1

Female Terminal

409010300

$4.00

DC2

Female Terminal

409010300

$4.00

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Female Terminal

515175231

$4.00

DC3 C

Male Housing, 2 Circuits

710000667

$7.25

DC5

Male Connector, 2 Circuits

278000220

$11.02

DC5

Wire Seal

278001065

$5.85

DC5

Female Terminal

278000223

$2.55

DC5 C

Clip

710000992

$3.88

DC5 C

Female Housing, 2 Circuits

278000217

$7.59

DC5 C

Wire Seal

278000216

$2.55

DC5-1

Insulated Sheath

278001007

$3.12

DC5-1

Female Terminal

710000421

$5.30

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Wire Seal

278001065

$5.85

DC6

Female Terminal

278000223

$2.55

DC6 C

Clip

710000992

$3.88

DC6 C

Female Housing, 2 Circuits

278000217

$7.59

DC6 C

Wire Seal

278000216

$2.55

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005438

$3.88

DLC

Female Terminal

710005439

$4.15

DPS

Female Housing

710004989

$7.00

DPS

Lock | PACKARD 15430900

710005098

$1.57

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.91

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.19

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Wire Seal

515176621

$6.79

FP

Female Terminal

278001014

$2.72

FP

Female Terminal

710001340

$4.96

FRR1

Female Housing, 2 Circuits

515175658

$14.90

FRR1

Female Terminal

710003896

$1.70

FT

Clip Bracket Connector (edge)

409210100

$1.94

FT

Female Housing, 2 Circuits

278000217

$7.59

FT

Wire Seal

278000218

$3.48

FT

Male Terminal

409004300

$5.30

HIC1

Housing

710001226

$11.06

HIC1

Lock

710001222

$1.68

HIC1

Cap

710001225

$7.27

HIC1

Seal

710001233

$2.55

HIC1

Terminal

710001229

$2.93

HIC2

Housing

710001928

$14.52

HIC2

Lock

710001222

$1.68

HIC2

Seal

710001233

$2.55

HIC2

Seal Wire

710001332

$2.72

HIC2

Terminal

710001229

$2.93

HIC2

Terminal

710001228

$2.72

HL HI LEFT

Housing

710007660

$7.51

HL HI LEFT

Lock

710001152

$3.48

HL HI LEFT

Wire Seal

710001163

$5.10

HL HI LEFT

Female Terminal

710001164

$5.92

HL HI RIGHT

Housing

710007660

$7.51

HL HI RIGHT

Lock

710001152

$3.48

HL HI RIGHT

Wire Seal

710001163

$5.10

HL HI RIGHT

Female Terminal

710001164

$5.92

HL LO LEFT

Female Housing, 2 Circuits

515177192

$6.32

HL LO LEFT

Wire Seal

710001163

$5.10

HL LO LEFT

Female Terminal

710001164

$5.92

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$6.32

HL LO RIGHT

Wire Seal

710001163

$5.10

HL LO RIGHT

Female Terminal

710001164

$5.92

MG1

Male Terminal Housing, 6 Circuits

710000835

$15.64

MG1

Seal

409012300

$4.25

MG1

Wire Seal

710000402

$4.28

MG1

Male Terminal

409011300

$5.61

MG2

Female Housing, 6 Circuits

710000081

$7.88

MG2

Wire Seal

710000402

$4.28

MG2

Seal

409012300

$4.25

MG2

Female Terminal

409012100

$3.73

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Cap

710000840

$5.33

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

515177009

$4.96

PF1

Female Terminal

515177012

$4.96

PF1

Female Terminal

710007681

$3.29

PF1 C

Fuse Cover

710001026

$17.52

PF1 C

Foam

278002172

$5.33

PF1 C-SP1

Little Fuse, 5 Amperes

710000742

$7.24

PF1 C-SP2

Little Fuse, 5 Amperes

710000742

$7.24

PF1 C-SP3

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1 C-SP4

Little Fuse, 15 Ampere

710000745

$6.77

PF1-F11

Little Fuse, 7.5 Amperes

710000743

$7.78

PF1-F12

Little Fuse, 15 Ampere

710000745

$6.77

PF1-F14

Little Fuse, 15 Ampere

710000745

$6.77

PF1-F15

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F4

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F5

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F6

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F7

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F8

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F9

Fuse, 25 Amps

710002590

$17.88

PF1-RY1

Relay, 30 AMP

515176774

$18.63

PF1-RY2

Relay

715900824

$16.22

PF1-RY3

Relay, 30 AMP

515176774

$18.63

PF1-RY4

Relay

715900824

$16.22

PF1-RY5

Relay

715900824

$16.22

PF1-RY8

Relay

715900824

$16.22

PF2

Fuse

710001613

$7.24

PF2

Fuse Holder

278001325

$8.31

PF2

Female Terminal

710000113

$5.85

PF4

Fuse

710001613

$7.24

PF4

Fuse Holder

278001325

$8.31

PF4

Female Terminal

710000357

$5.85

PL

Female Housing, 2 Circuits

515175658

$14.90

PL

Female Terminal

710003896

$1.70

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Cap

710000882

$9.19

REG

Seal

710001932

$3.06

REG

Terminal

710001934

$4.51

RFID

Housing

710001161

$9.15

RFID

Lock

710001162

$3.18

RFID

Wire Seal

710001163

$5.10

RFID

Female Terminal

710001164

$5.92

RSS

Female Housing, 6 Circuits

710000081

$7.88

RSS

Cap

710000080

$6.28

RSS

Wire Seal

710000402

$4.28

RSS

Female Terminal

409012100

$3.73

SS1

Female Terminal

409010300

$4.00

SS2

Female Terminal

409010300

$4.00

SW1

Female Terminal

409010700

$4.93

SW2

Female Terminal

409010700

$4.93

SW3

Female Terminal

409010700

$4.93

SW4

Open Barrel

278000992

$1.79

SWW

Male Housing, 3 Circuits

278000273

$7.59

SWW

Wire Seal

278001065

$5.85

SWW

Female Terminal

278000223

$2.55

TL L

Connector, 3 Positions

710003167

$8.58

TL L

Seal

415128501

$1.51

TL L

Terminal

710002443

$0.85

TL R

Connector, 3 Positions

710003167

$8.58

TL R

Seal

415128501

$1.51

TL R

Terminal

710002443

$0.85

WAKE F

Insulated Sheath

278001007

$3.12

WAKE F

Female Terminal

710000421

$5.30

WAKE M

Insulated Sheath

278001008

$3.10

WAKE M

Female Terminal

278002261

$6.01

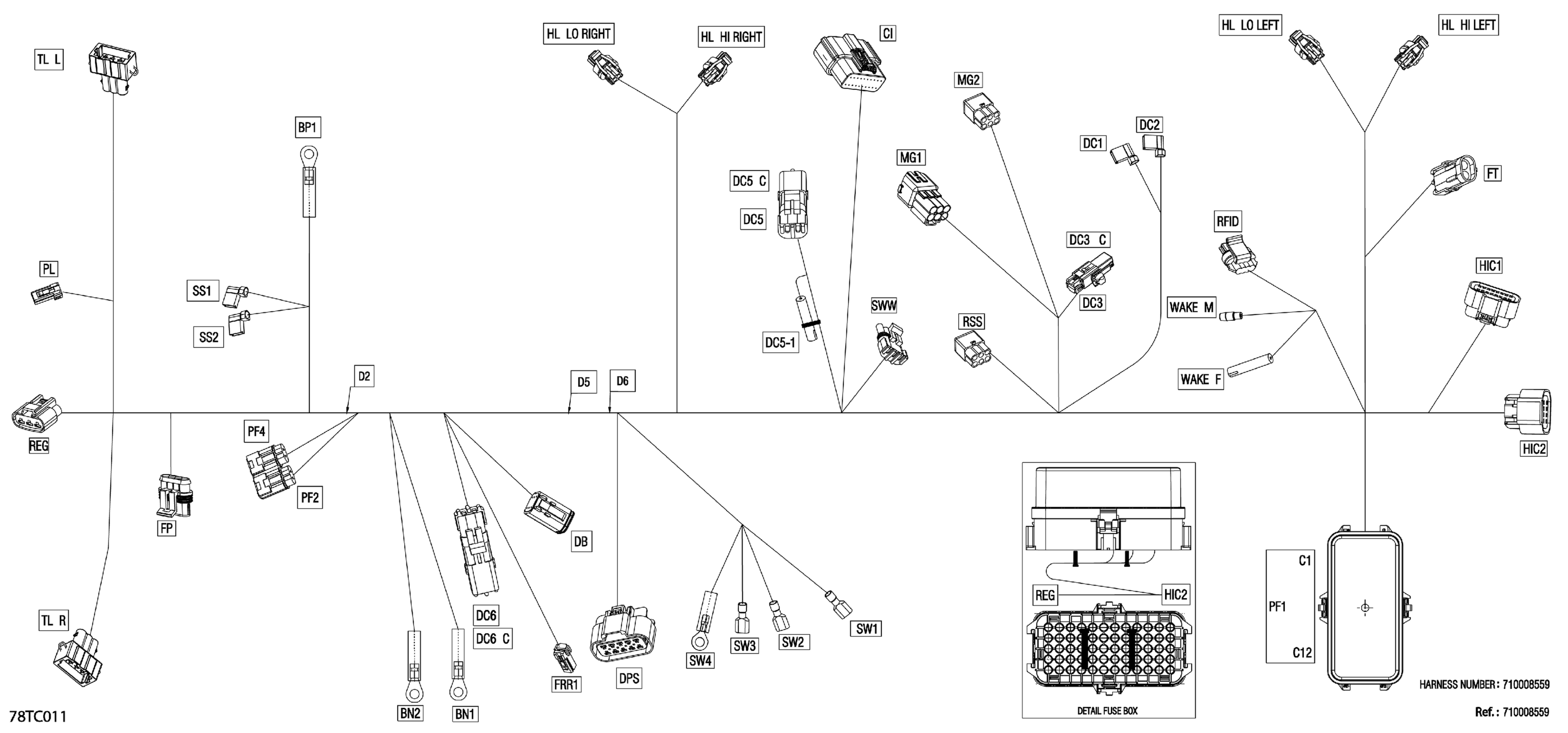

Can-Am Outlander MAX 6X6 - 650 EFI - DPS - 2023 Electric - Main Harness - 710008559 Diagram

Main Wiring Harness

Terminal

Open Barrel Terminal

Open Barrel Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Female Terminal 22 AWG

Diode

Diode

Diode

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Insulated Sheath

Female Terminal

Male Connector, 2 Circuits

Wire Seal

Female Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Female Housing 6 Circuits

Lock

Female Terminal

Female Terminal

Female Housing

Lock | PACKARD 15430900

Lock

Plug

Wire Seal

Seal

Female Terminal

Terminal

Female Housing, 4 Circuits

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Clip Bracket Connector (edge)

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Housing

Lock

Cap

Seal

Terminal

Housing

Lock

Seal

Seal Wire

Terminal

Terminal

Housing

Lock

Wire Seal

Female Terminal

Housing

Lock

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Male Terminal Housing, 6 Circuits
