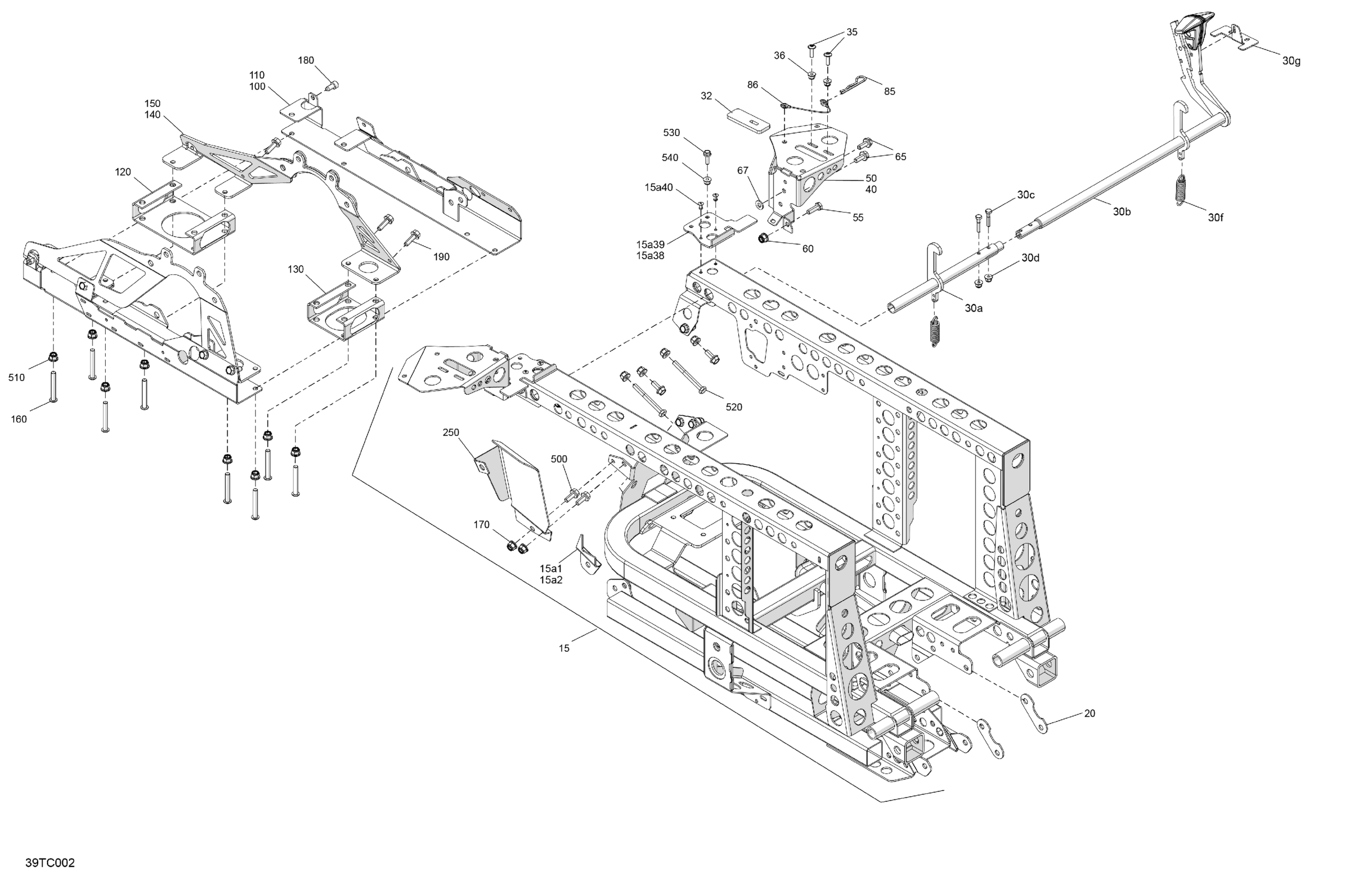

Can-Am 002 - Outlander MAX 6X6 - 650 EFI - DPS - International, 2023 06- Frame - Rear Section Diagram

#

Description
Price

15

Rear Frame | Includes 15 to 15e

705204598

Unavailable

15a1

LH Grip Plate

605356426

Unavailable

15a2

RH Grip Plate

605356425

Unavailable

15a38

LH Cargo Support

705204600

Unavailable

15a39

RH Cargo Support

705204601

Unavailable

15a40

Stavex Rivet

293150144

Unavailable

20

Support Plate

705203564

Unavailable

30a

LH Tube

705203669

Unavailable

30b

RH Tube

705203670

Unavailable

30c

Hex Cap Screw DIN.931

250000480

Unavailable

30d

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30f

Spring

415107100

Unavailable

30g

Lever Support

705203834

Unavailable

32

Rubber Collar

708301280

Unavailable

35

Torx Screw M6 X 20

250000722

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

40

LH Rear Fender Support

705203611

Unavailable

50

RH Rear Fender Support

705203612

Unavailable

55

Hexagonal Screw

250000556

Unavailable

60

Hex. Flange Elastic Nut M8

233281414

Unavailable

65

Hex. Flange Screw M8 X 20

207682046

Unavailable

67

Washer

503192494

Unavailable

85

Cotter Spring

505073670

Unavailable

86

Retainer Cable

293750069

Unavailable

100

LH Lower Beam Reinforcement

705203724

Unavailable

110

RH Lower Beam Reinforcement

705203725

Unavailable

120

Front Support Plate

705203726

Unavailable

130

Rear Support Plate

705203727

Unavailable

140

LH Differential Support Reinforcement

705203728

Unavailable

150

RH Differential Support Reinforcement

705203729

Unavailable

160

Torx Screw Scotch Grip M8X60

250000777

Unavailable

170

Hex. Elastic Flange Nut M8

233281416

Unavailable

180

Forming Screw HD.DIN.7500E

250000678

Unavailable

190

Hex Forming Screw DIN.7500D

250000376

Unavailable

250

Heat Shield

707601726

Unavailable

500

Hex. Flange Screw M8 X 20

207682046

Unavailable

510

Hex. Elastic Flange Nut M8

233281416

Unavailable

520

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

530

Hex. Flange Screw M6 X 20

207662054

Unavailable

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
