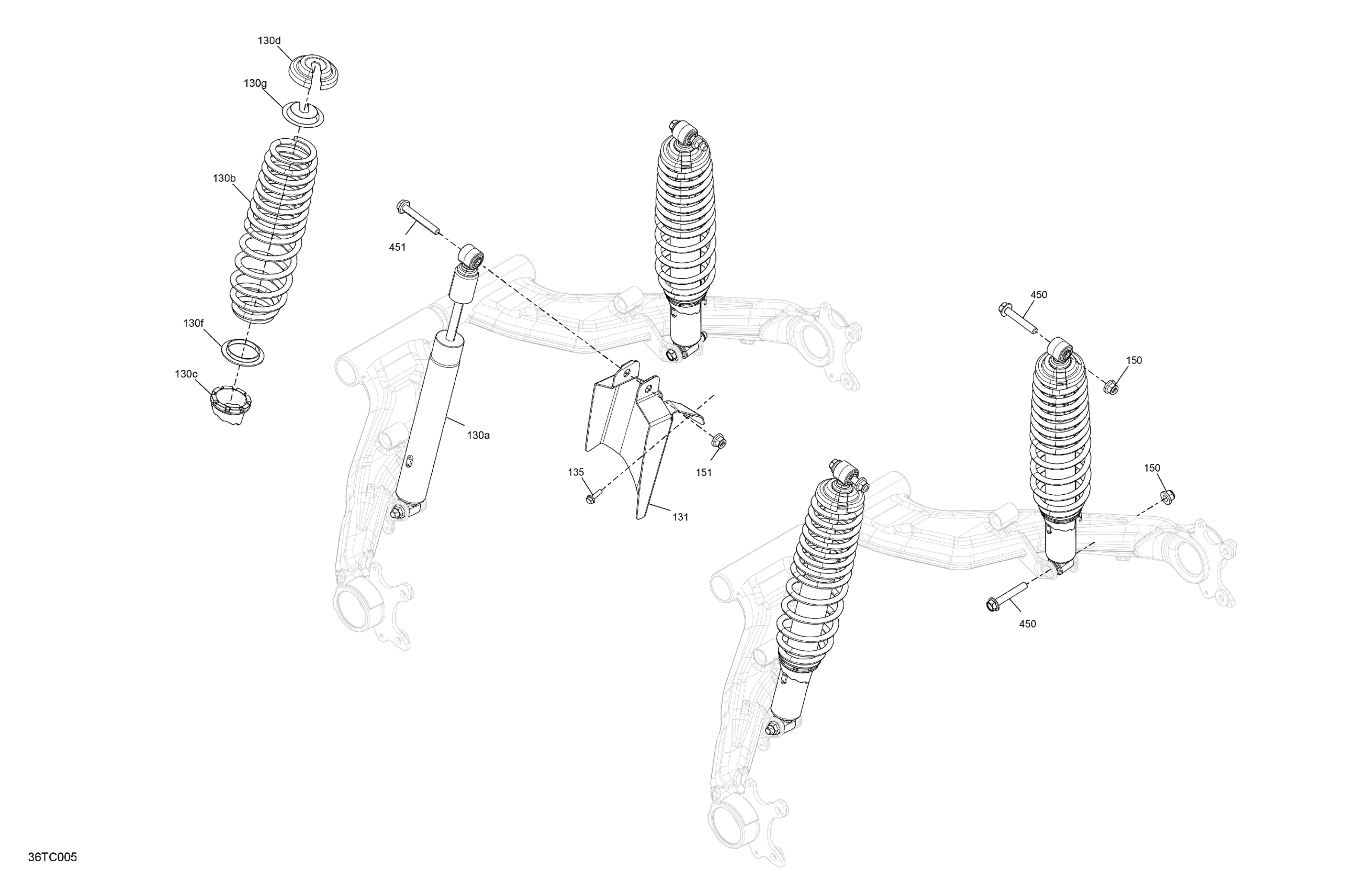

Can-Am Outlander MAX 6X6 - 650 EFI - DPS - 2023 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber

706003033

$166.39

130b

Deep Black, Compression Spring

706005816

$93.25

130c

Adjustment Cam

505073625

$11.82

130d

Spring Stopper

706200881

$10.30

130f

Spring Guide

503187500

$7.37

130g

Cap

706200785

$4.28

131

LH Rear Heat Shield

705210324

$47.73

135

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

150

Hex. Flange Elastic Nut M10

233201436

$1.74

151

Hex. Flange Elastic Nut M10

233201436

$1.74

450

Hex. Flange Screw M10 X 6

207606046

$3.38

451

Hex. Flange Screw M10 X 70

207607046

$2.82
