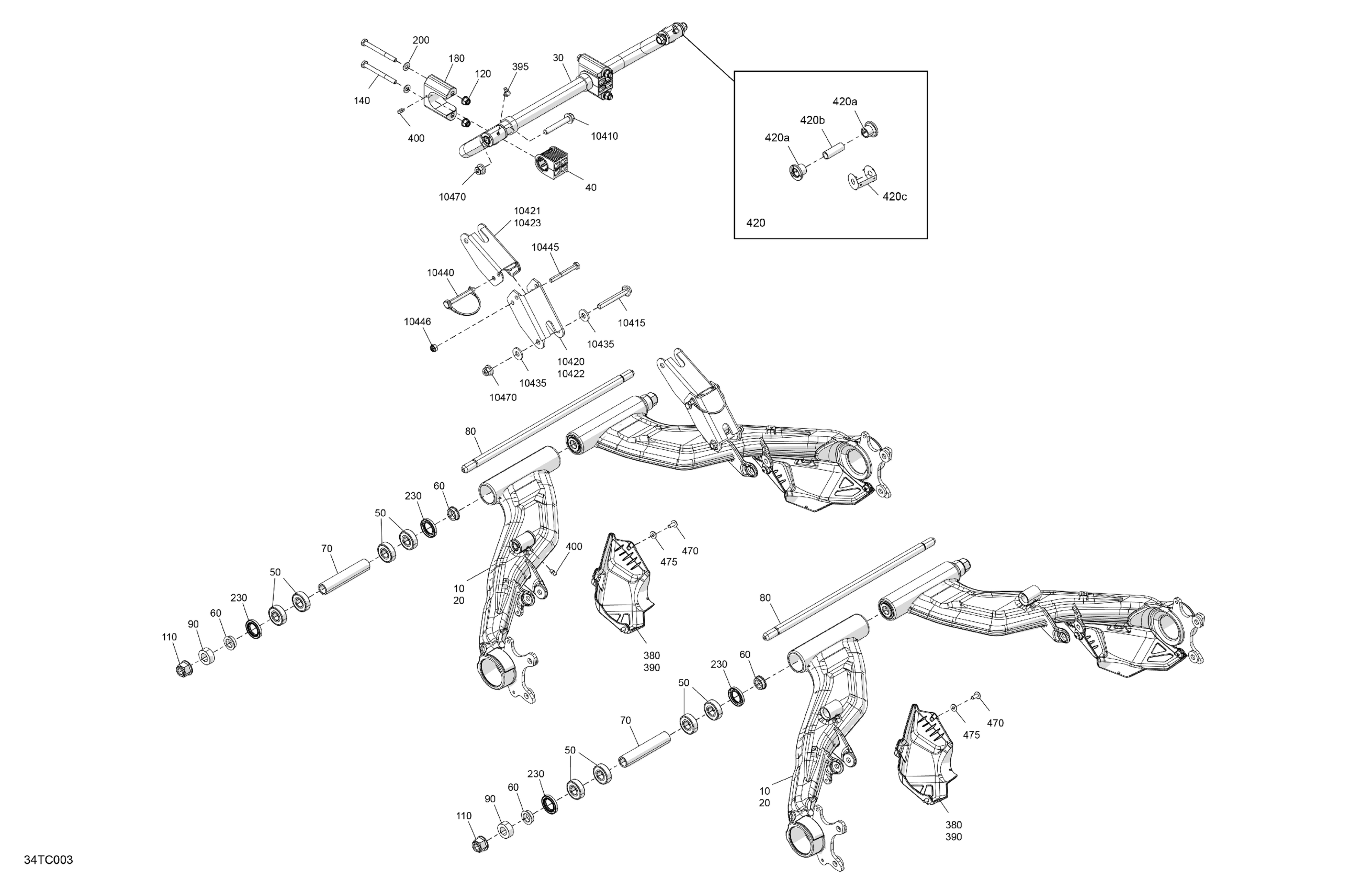

Can-Am Outlander MAX 6X6 - 650 EFI - DPS - 2023 Suspension - Rear Components Diagram

#

Description
Price

10

LH Swing Arm

706003041

$296.99

20

RH Swing Arm

706003042

$296.99

30

Sway Bar

706003050

$126.99

40

Stabilizer Bar Bushing

706004641

$11.54

50

Ball Bearing

293350145

$13.75

60

Spacer

706001282

$12.99

70

Spacer

706002259

$28.99

80

Axial Pivot M16

706001664

$72.99

90

Flat Washer M17

250200112

$7.99

110

Hex. Flange Elastic Nut M16

233211466

$1.99

120

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Screw M8 X 85

250001035

$1.89

180

Bushing Holder

706001099

$33.99

200

Flat Washer 8 mm

234081410

$0.83

230

Seal

293200144

$5.09

380

LH Protector | All Except Packages XXC & Hunting Edition

706003052

$18.49

390

RH Rear CV Joint Guard

706005102

$18.49

395

Grease Fitting 90°

293550056

$1.15

400

Grease Fitting

250000315

$5.82

420

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

420a

Not Available As Spare Parts

XXX

Unavailable

420b

Not Available As Spare Parts

XXX

Unavailable

420c

Not Available As Spare Parts

XXX

Unavailable

470

Tork Screw M6 X 16

250000534

$2.11

475

Flat Washer

250200039

$0.74

10470

Hex. Flange Elastic Nut M10

233201436

$2.11

10410

Hex. Flange Screw M10 X 65

207606536

$4.44

10415

Hex. Screw M10 X 70

250000520

$7.51

10420

RH Linkage Outer Part

706001765

$28.99

10422

LH Linkage Outer Part

706001600

$28.99

10421

RH Linkage Inner Part

706001766

$15.49

10423

Linkage Inner Part

706001601

$15.49

10435

Washer

505073634

$2.42

10440

Pin Onto The Shaft

706001602

$15.80

10445

Hex. Screw M8 x 65

207086544

$1.47

10446

Hex. Elastic Stop Nut M8

232581414

$0.56
