- 002 - Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00
11- T3 Parts (L Pro Models)

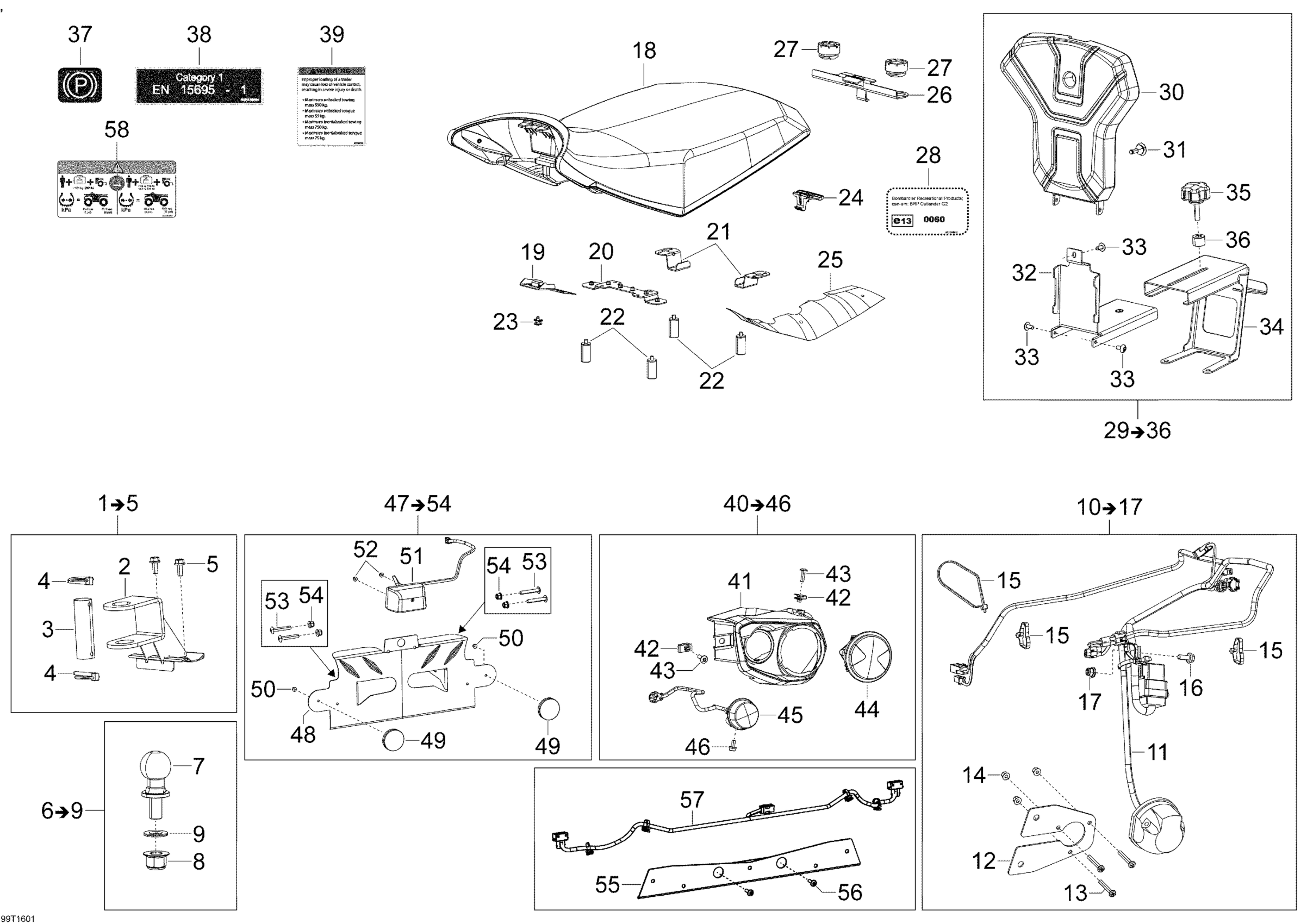

Can-Am 002 - Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00 11- T3 Parts (L Pro Models) Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Front Coupling Device
705204970
Unavailable
3
Pin
605456511
Unavailable
4
Pin
605456518
Unavailable
5
Hex. Flange Screw M8 X 20
207682046
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Coupling Ball Ass'y
705204974
Unavailable
8
Elastic Flange Nut M20
250100104
Unavailable
9
LOCK WASHER - Call your local BRP dealership
250200161
Unavailable
10
Trailer Plug Ass'y | Includes 13 To 19
860200927
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Plug Support Plate
605356523
Unavailable
13
Socket Head Screw M5 X 35
205053588
Unavailable
14
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
Tie-Rap 180 mm
414115200
Unavailable
16
Hex. Flange Screw M6 X 16
207661644
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
Seat Ass'y | Model-T3
708002208
Unavailable
19
Front Bottom Support | Model-T3
605456520
Unavailable
20
Support Central Cushion
510005986
Unavailable
21
Support Rear Cushion
510005988
Unavailable
22
RUBBER DAMPER - Call your local BRP dealership | Model-T3
605456546
Unavailable
23
Rivet | Model-T3
293150067
Unavailable
24
Latch
708000909
Unavailable
25
HEAT SHIELD - Call your local BRP dealership
705005761
Unavailable
26
Support Rear Seat
705204621
Unavailable
27
Bumper Rubber
708000760
Unavailable
28
Decal
605456593
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Backrest | Model-T3
708001794
Unavailable
31
Rubber
605454799
Unavailable
32
Support
705205026
Unavailable
33
Torx Truss Screw M6 x 12 | Model-T3
250000675
Unavailable
34
BACK REST FIXING BODY PAINT - Call your local BRP dealership
708002039
Unavailable
35
Handle M8 X 35 | Model-T3
510003533
Unavailable
36
Sleeve
708002168
Unavailable
37
P-Decal, T3 | Package-XTT3
605356244
Unavailable
38
Cabin Decal, T3 | Package-XTT3
605456594
Unavailable
39
Warning Decal
605356505
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
41
LH Support
705010329
Unavailable
41
RH Support
705010330
Unavailable
42
Panel Nut M6 X 1.0
250100198
Unavailable
43
Torx Screw M6 X 20
250000722
Unavailable
44
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
45
Flasher | Europe
710002047
Unavailable
46
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
48
License Plate Support
708002040
Unavailable
49
Red Reflector
705011221
Unavailable
50
Hex. Flange Elastic Nut M5
233251414
Unavailable
51
License Plate Light | Europe
710005563
Unavailable
52
Hex. Flange Elastic Nut M5
233251414
Unavailable
53
Torx Truss Screw M8 X 50
250000761
Unavailable
54
Hex. Flange Elastic Nut M8
233281414
Unavailable
55
CABLE HOUSING - Call your local BRP dealership | Includes 55 To 56
708002041
Unavailable
56
Torx Screw M6 X 20
250000722
Unavailable
57
Rear Light Harness
515178093
Unavailable
58
LABEL-WARNING TIRE PRESSURE - Call your local BRP dealership
704905689
Unavailable
