- 002 - Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00
01- Engine and Engine Support - 450 EFI

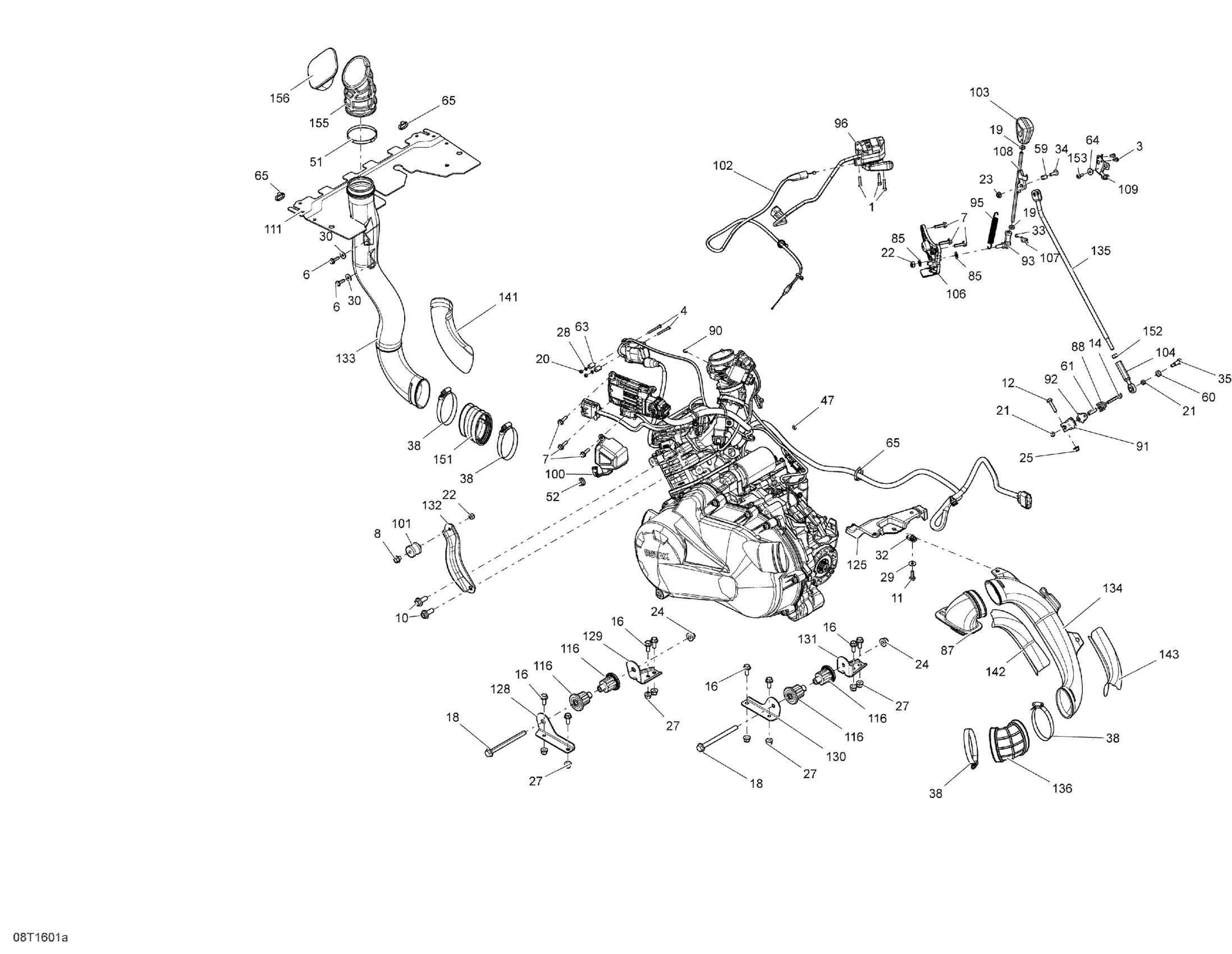

Can-Am 002 - Outlander L - 450 EFI - PRO Package 0003NGA00 0003NGB00 0003NGC00 0003NGD00 0003NGE00 01- Engine and Engine Support - 450 EFI Diagram
#
1
Socket Head Screw M5 X 25
205052588
Unavailable
3
Socket Head Screw M5 X 10
205951046
Unavailable
4
Hex. Cap Screw
207144044
Unavailable
6
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
7
Hex. Flange Screw M6 X 25
207562544
Unavailable
8
Flange Screw M8 x 10, Scotch Grip
207581046
Unavailable
10
Hex. Flange Screw M10 X 25
207602544
Unavailable
11
Hex. Flange Screw M6 X 20
207662044
Unavailable
12
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
14
Hex. Flange Screw M6 X 40
207664044
Unavailable
16
Hex. Flange Screw M8 X 20
207682046
Unavailable
18
Hex. Flange Screw M10 X 125
230602546
Unavailable
19
Hex. Jam Nut M8
232180600
Unavailable
20
Elastic Stop Nut M4
232541414
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
22
Hex. Elastic Stop Nut M8
232581414
Unavailable
23
Hex. Flange Nut M6
233161414
Unavailable
24
Hex. Flange Elastic Nut M10
233201436
Unavailable
25
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
27
Hex. Elastic Flange Nut M8
233281416
Unavailable
28
Flat Washer 4 mm
234040600
Unavailable
29
Flat Washer 6 mm
234062410
Unavailable
30
Flat Washer M6, Stainless
234062600
Unavailable
32
Panel Nut M6 X 1.0
250100198
Unavailable
33
TORX SCREW M4 X 8 - Call your local BRP dealership | Europe
250000332
Unavailable
34
Torx Screw M6 X 20, Scotch Grip
250000446
Unavailable
35
Socket Head Screw M8 X 16
250000669
Unavailable
38
Norma Clamp
293650091
Unavailable
47
Oetiker Clamp
293650100
Unavailable
51
Crimp Clamp
293650240
Unavailable
52
Tie Wrap 142 mm
293750002
Unavailable
59
Bushing
293900019
Unavailable
60
Bushing
293900028
Unavailable
61
Bushing
293900079
Unavailable
63
Bushing
293900117
Unavailable
64
Washer | DS 650 X
391301600
Unavailable
65
Tie-Rap 180 mm
414115200
Unavailable
85
Washer
506151252
Unavailable
87
CVT Cooling Duct Out
706600400
Unavailable
88
Spring
707000310
Unavailable
90
Cable Guide
707000434
Unavailable
91
Lever
707000503
Unavailable
92
Pivot Plate
707000507
Unavailable
93
RH Ball Joint
707001959
Unavailable
95
Spring
707000577
Unavailable
96
Throttle Handle | 4X4
707000595
Unavailable
100
Cover
707000945
Unavailable
101
Rubber Isolator
707000949
Unavailable
102
Throttle Cable
707000955
Unavailable
103
Lever Trim
707003211
Unavailable
104
Ball Joint Ass'y | Includes 55 to 56
707000966
Unavailable
106
Lever Support
707003054
Unavailable
107
Speed Limiter | Europe
707000573
Unavailable
108
Shift Arm | Except Europe
707000840
Unavailable
108
Shift Arm | Europe
707001003
Unavailable
109
Fixing Plate | Europe
707001042
Unavailable
111
Upper Water Deflector
707001124
Unavailable
116
Vibration Damper
707001169
Unavailable
125
Air Outlet Support
707001262
Unavailable
128
LH Front Engine Bracket
707001407
Unavailable
129
RH Front Engine Bracket
707001408
Unavailable
130
LH Rear Engine Bracket
707001409
Unavailable
131
RH Rear Engine Bracket
707001410
Unavailable
132
Upper Engine Bracket
707001411
Unavailable
133
CVT Air Inlet
707002289
Unavailable
134
CVT Air Outlet
707001413
Unavailable
135
Shifter Rod
707001414
Unavailable
136
CVT Air Outlet Adaptor
707001425
Unavailable
141
Heat Shield
707001638
Unavailable
142
Heat Shield
707001639
Unavailable
143
Heat Shield
707001641
Unavailable
151
Flexibale Adaptor
707002585
Unavailable
152
Hex. Nut M8, LH Threads
250100144
Unavailable
153
Torx Screw K50 X 16
250000720
Unavailable
155
CVT Inlet
707001864
Unavailable
156
CVT Filter
707001786
Unavailable
