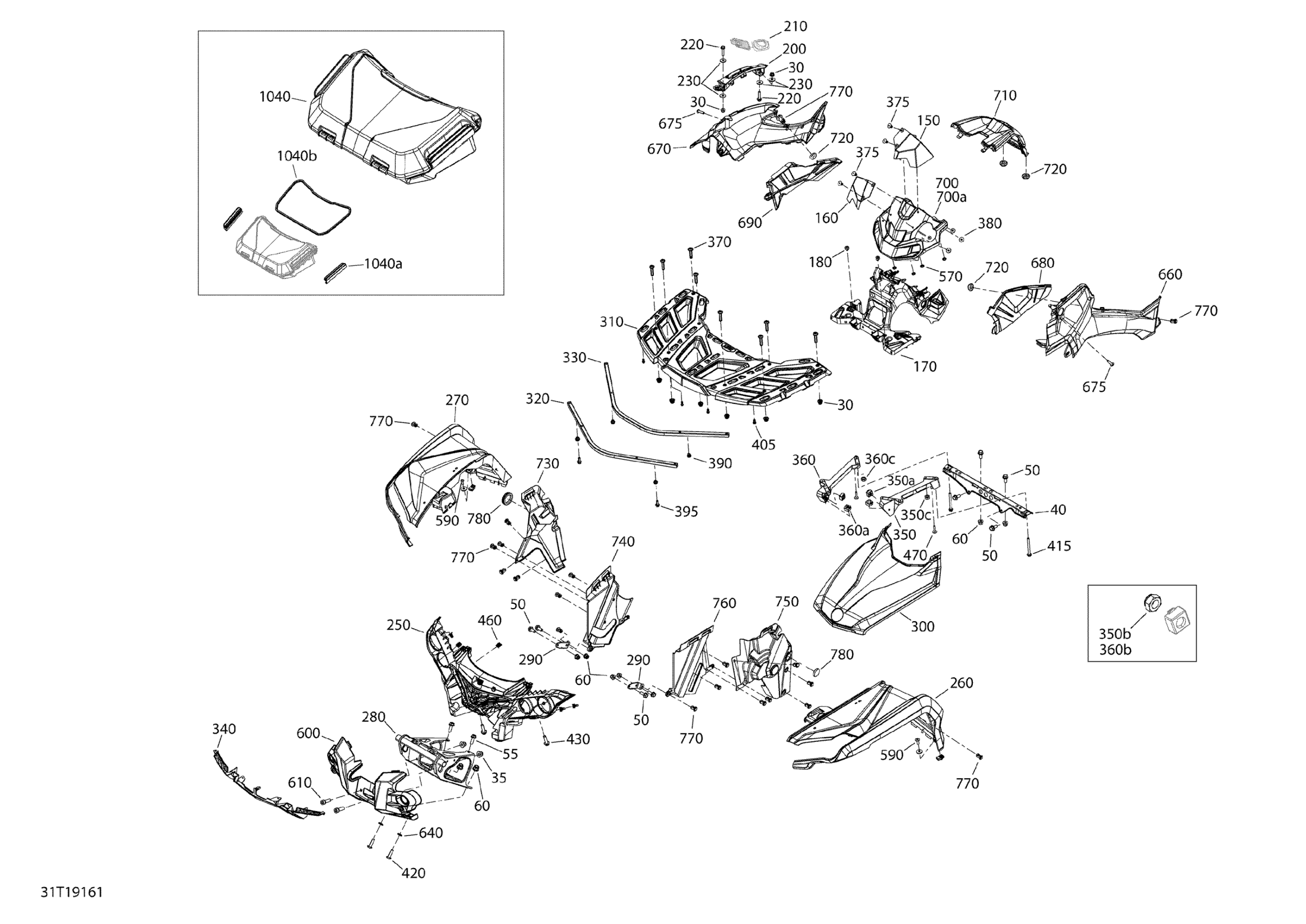

Can-Am Outlander 6X6 - 650 EFI - T3, 2019 Body And Accessories 6X6 - 650 EFI - Squadron Green - Front Diagram

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M10

233201434

$1.63

Cargo Rack Center Support

705006812

$55.19

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Elastic Nut M8

233281434

$1.74

LH Air Deflector

705006134

$23.85

RH Air Deflector

705006135

$22.36

Console Support Ass'y | Model-Europe/International

715006101

$52.21

Rubber Bumper

293830005

$5.33

Indicator | Package PRO T3

715004087

$23.85

Shiftgate Trim | Europe

705005003

$7.73

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Flat Washer

224061201

$1.11

Fascia

705012822

$108.18

Squadron Green, LH Front Fender Kit | Model- T3

715006062

$184.30

Squadron Green, RH Front Fender Kit | Model-International, T3

715004630

$184.30

Front Bumper Support

705016893

$314.90

Lower Fender Support

705004565

$6.19

Squadron Green, Hood Kit

715006096

$302.21

Rack Kit | Europe, Int'l

715002784

$172.36

Sectional Bent Tube

705016640

$34.30

Bent Sectional Tube

705016092

$38.03

Lugage Rack Moulding

705004523

$21.61

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

Hex. Elastic Nut M8 Brass

232581200

$1.29

Hex. Elastic Stop Nut M6

232561600

$0.92

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$17.88

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

Hex. Elastic Nut M8 Brass

232581200

$1.29

Hex. Elastic Stop Nut M6

232561600

$0.92

Black, Torx Screw M6 X 35

250000646

$0.78

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Washer

517124300

$0.16

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Screw K40 X 10

241140060

$1.25

Hex. Flange Screw M6x70, Scotch Grip

207567044

$1.74

Torx Screw M8 X 30

250000886

$1.74

Torx Screw M8 X 30

250000886

$1.74

Hex. Flange Screw M8 X 35

207683534

$1.74

Edge Clip

517302785

$0.70

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

Push Nut

732610072

$1.72

Torx Screw M6 X 20

250000722

$1.34

Front Guard Plate | Europe

705006300

$39.52

Socket Screw M10 x 30 | XT

205003044

$2.61

Ring

705004497

$3.87

Squadron Green, LH Lateral Panel | Green Model

705009760

$67.13

Squadron Green, RH Lateral Panel | Green Model

705009764

$67.13

Phillips Screw K40 X 16

250000723

$0.81

Deflector_Body Panel Kit

715007008

$49.97

Engine Cover

705003444

$18.63

Gauge Support | Includes 700 to 700a

705012572

$40.27

Gauge Support

705012554

$40.27

Dash Kit | Europe, Int'l

715002783

$58.18

Grommet

705003264

$3.43

RH Rear Inner Fender

705011462

$19.37

RH Front Inner Fender

705011463

$14.13

LH Rear Inner Fender

705013111

$19.37

LH Front Wheel Arch Protector

705017001

$14.13

Tuflok Plastic Rivet

293150230

$1.21

Rubber Cover

293250242

$5.18

Box Ass'y

708200408

$80.74

Clip | Outlander Max

269501945

$14.90

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$34.30
